Front Upper Suspension Arm

FRONT SUSPENSION: FRONT UPPER SUSPENSION ARM: INSPECTION





1. INSPECT FRONT SUSPENSION UPPER ARM ASSEMBLY LH

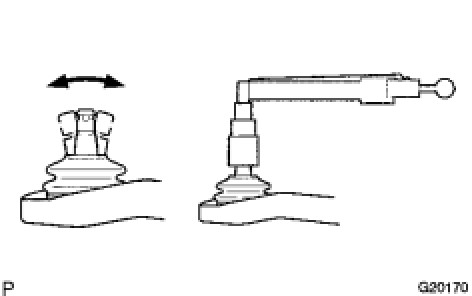

(a) As shown in the illustration, flip the ball joint stud back and forth 5 times, before installing the nut.
(b) Using a torque wrench, turn the nut continuously at a rate of 3 to 5 seconds per 1 turn and take the torque reading on the fifth turn.
Standard turning torque:
0.98 to 4.41 N*m (1.0 to 45 kgf*cm, 9 to 39 in.*lbf)
