Installation

REAR SUSPENSION: REAR LOWER ARM: INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. TEMPORARILY INSTALL LOWER CONTROL ARM ASSEMBLY LH






(a) Temporarily install the lower control arm with the 2 bolts, 2 washers and 2 nuts.
2. STABILIZE SUSPENSION Installation

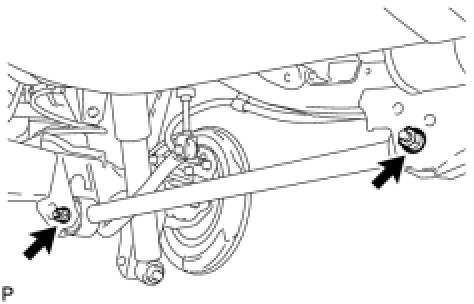

3. TIGHTEN LOWER CONTROL ARM ASSEMBLY LH
(a) Tighten the 2 nuts.
Torque: 150 Nm (1530 kgf-cm, 111 ft-lbf)
NOTICE:
Perform this procedure with all 4 wheels on the ground.
