Reassembly

FRONT SUSPENSION: FRONT UPPER SUSPENSION ARM: REASSEMBLY

1. INSTALL FRONT UPPER BALL JOINT DUST COVER LH





(a) Pack the upper arm ball joint with MP grease.
Grease capacity:
8.0 g (0.282 oz.)

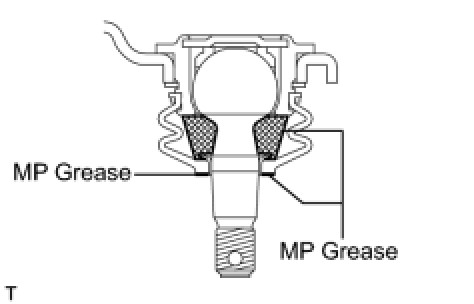

(b) Apply MP grease to the locations shown in the illustration.
NOTICE:
Do not apply MP grease to the tapered or threaded parts of the ball joint.

(c) Install the dust cover to the upper arm.






(d) Using a snap ring expander, install the dust cover set ring.
NOTICE:
Make sure the set ring is securely installed in the groove.





2. INSTALL FRONT SUSPENSION UPPER ARM BUSH

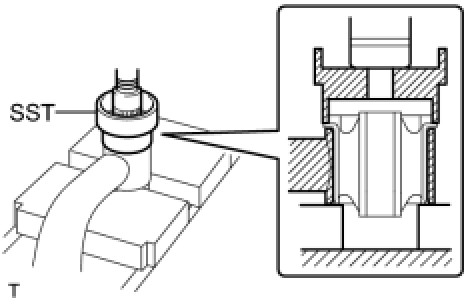

(a) Using SST and a press, press in a new bush.
SST: 09710-26011
09710-05061
HINT:
Press in the rear side bush using the same procedure as for the front side.
