Disassembly

FRONT SUSPENSION: FRONT UPPER SUSPENSION ARM: DISASSEMBLY

1. REMOVE FRONT SUSPENSION UPPER ARM BUSH

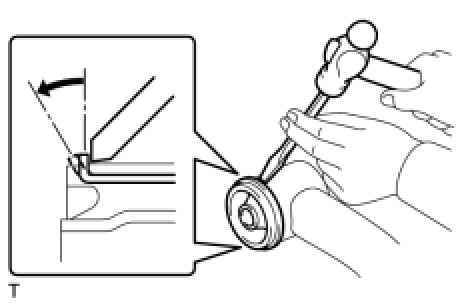

(a) Using a hammer and chisel, strike and bend the entire flange of the upper arm bush as shown in the illustration.

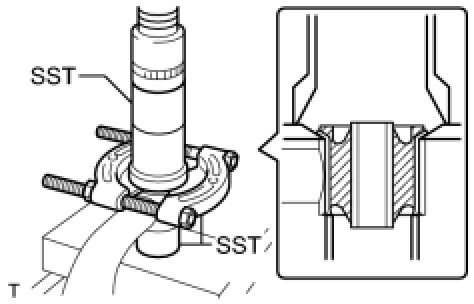

(b) Using SST and a press, press out the bush.
SST: 09613-26010
SST: 09710-22021
09710-01031
SST: 09950-00020
HINT:
Remove the rear side bush using the same procedure as for the front side.





2. REMOVE FRONT UPPER BALL JOINT DUST COVER LH

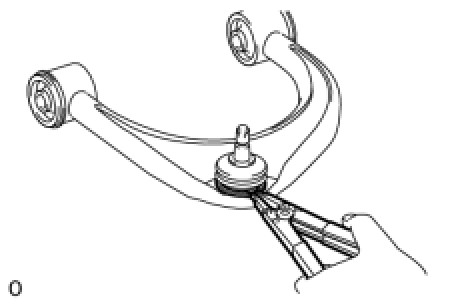

(a) Using a snap ring expander, remove the dust cover set ring and dust cover from the upper arm.
NOTICE:
- Do not damage the ball joint dust cover.
- If the ball joint dust cover is damaged, replace it.
