Reassembly

FRONT SUSPENSION: FRONT LOWER SUSPENSION ARM: REASSEMBLY

1. INSTALL FRONT NO. 1 SPRING BUMPER LH
(a) Install the 2 No. 1 spring bumpers.
Torque: 31 Nm (316 kgf-cm, 23 ft-lbf)






2. INSTALL FRONT NO. 2 LOWER ARM BUSH LH

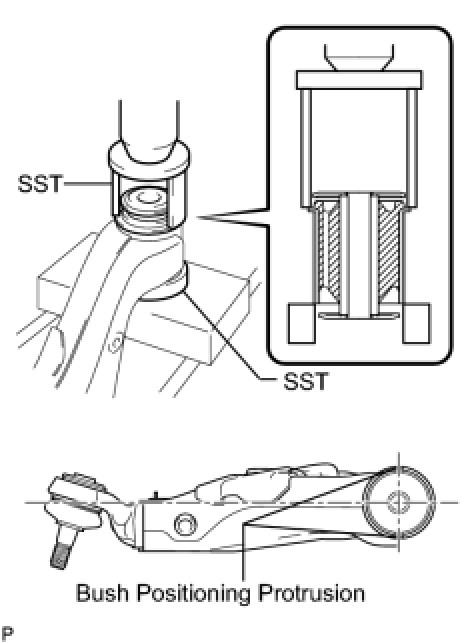

(a) Using SST and a press, press in a new bush.
SST: 09710-26011
09710-05081
NOTICE:
Press the bush while making sure the bush positioning protrusions are perpendicular to the lower arm, as shown in the illustration.





3. INSTALL FRONT NO. 1 LOWER ARM BUSH LH

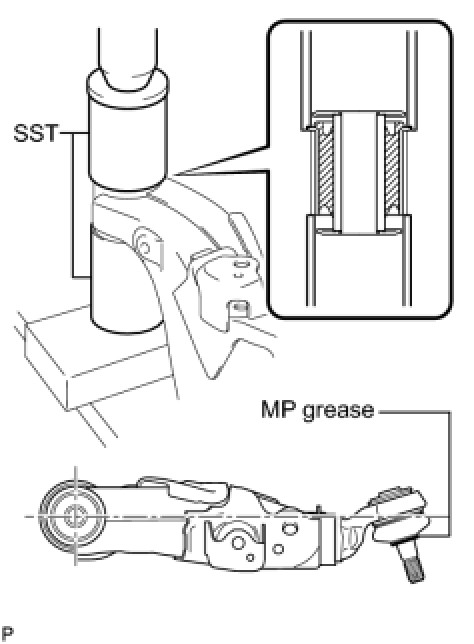

(a) Using SST and a press, press in a new bush.
SST: 09223-00010
SST: 09612-30012
(b) Apply MP grease to the locations shown in the illustration.
NOTICE:
Do not apply MP grease to the tapered or threaded parts of the ball joint.

4. INSTALL FRONT LOWER BALL JOINT ATTACHMENT LH
(a) Install the attachment with the nut and a new cotter pin.
Torque: 167 Nm (1703 kgf-cm, 123 ft-lbf)
NOTICE:
If the holes for the cotter pin are not aligned, tighten the nut further up to 60°.
