Disassembly

FRONT SUSPENSION: FRONT LOWER SUSPENSION ARM: DISASSEMBLY

1. REMOVE FRONT NO. 1 LOWER ARM BUSH LH

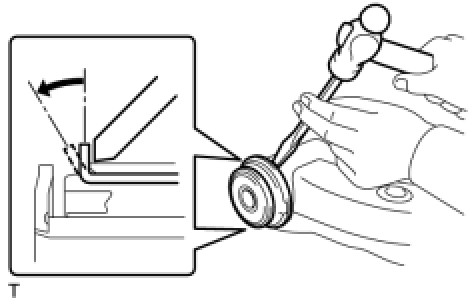

(a) Using a chisel and hammer, pry the flange of the bush outward.

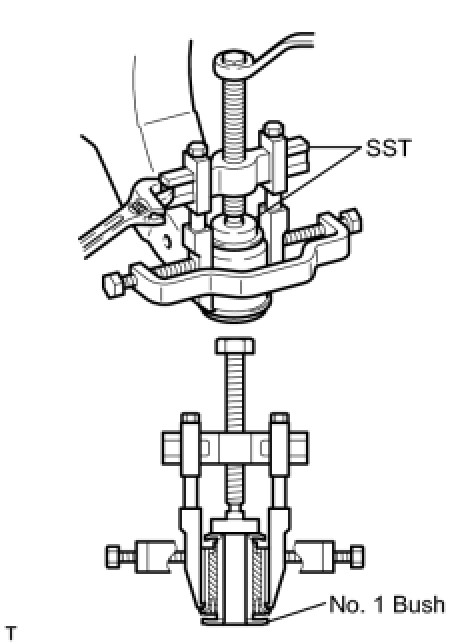

(b) Using SST, remove the bush.
SST: 09950-40011
09951-04010
09952-04010
09953-04020
09954-04010
09955-04011
09957-04010
09958-04011
SST: 09950-60010
09951-00540
2. REMOVE FRONT NO. 2 LOWER ARM BUSH LH

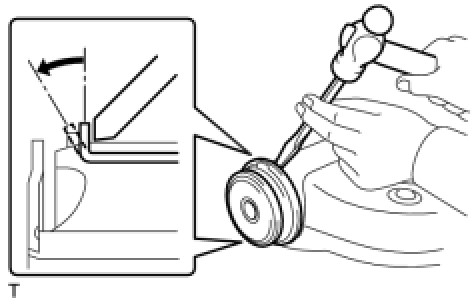

(a) Using a chisel and hammer, pry the flange of the bush outward.

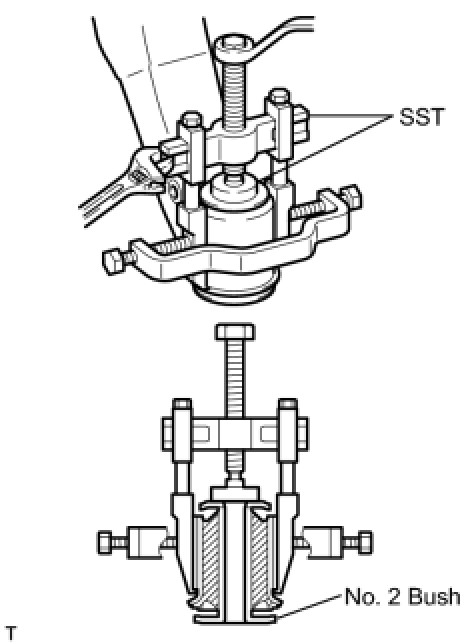

(b) Using SST, remove the bush.
SST: 09950-40011
09951-04010
09952-04010
09953-04020
09954-04020
09955-04011
09957-04010
09958-04011
SST: 09950-60010
09951-00650
3. REMOVE FRONT NO. 1 SPRING BUMPER LH
(a) Remove the 2 No. 1 spring bumpers from the vehicle.
