Master Warning Light Malfunction

VARIABLE GEAR RATIO STEERING: VARIABLE GEAR RATIO STEERING SYSTEM: Master Warning Light Malfunction

Master Warning Light Malfunction

DESCRIPTION

If the steering control ECU detects that the VGRS system has a malfunction, warning information is transmitted to the combination meter via CAN communication.
The combination meter will turn the master warning light on based on this information.
Warning information is transmitted via the following route:

- Steering control ECU -> (CAN) -> Network gateway ECU -> (CAN) -> Combination meter

Connecting terminals TC and CG of the DLC3 makes the master warning light blink and outputs DTCs.

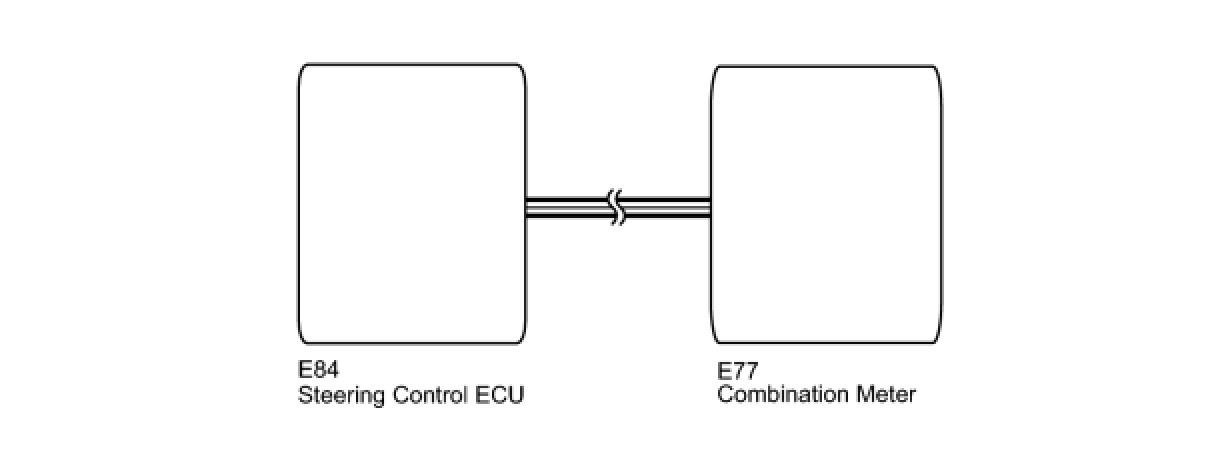

WIRING DIAGRAM





INSPECTION PROCEDURE
HINT:
Check that there is no problem in CAN communication before performing the following procedure.
If there are any problems in CAN communication, first troubleshoot them and then proceed to the troubleshooting below.

PROCEDURE

1. CHECK BATTERY
(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






NG -- RECHARGE OR REPLACE BATTERY
OK -- Continue to next step.
2. PERFORM ACTIVE TEST USING TECHSTREAM (COMBINATION METER)
(a) Select the Active Test, use the Techstream to generate a control command, and then check that the master warning light turns on/off.

Combination Meter:





OK:
Indicator light turns on/off.
NG -- GO TO METER/GAUGE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)
OK -- REPLACE STEERING CONTROL ECU
