Pinout Values and Diagnostic Parameters

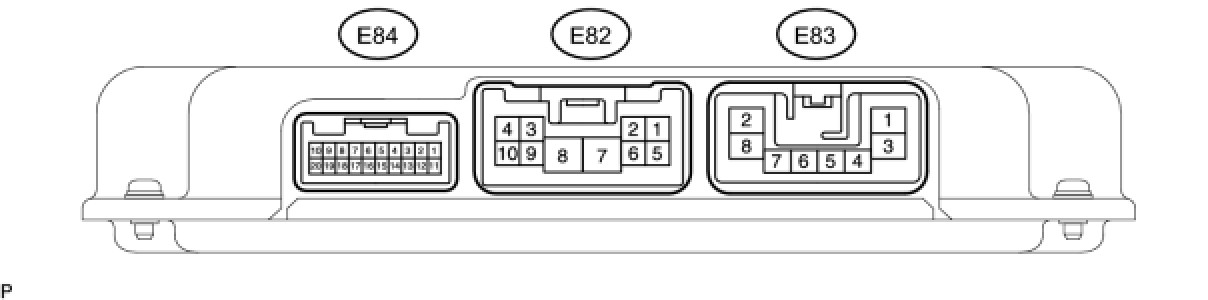

VARIABLE GEAR RATIO STEERING: VARIABLE GEAR RATIO STEERING SYSTEM: TERMINALS OF ECU

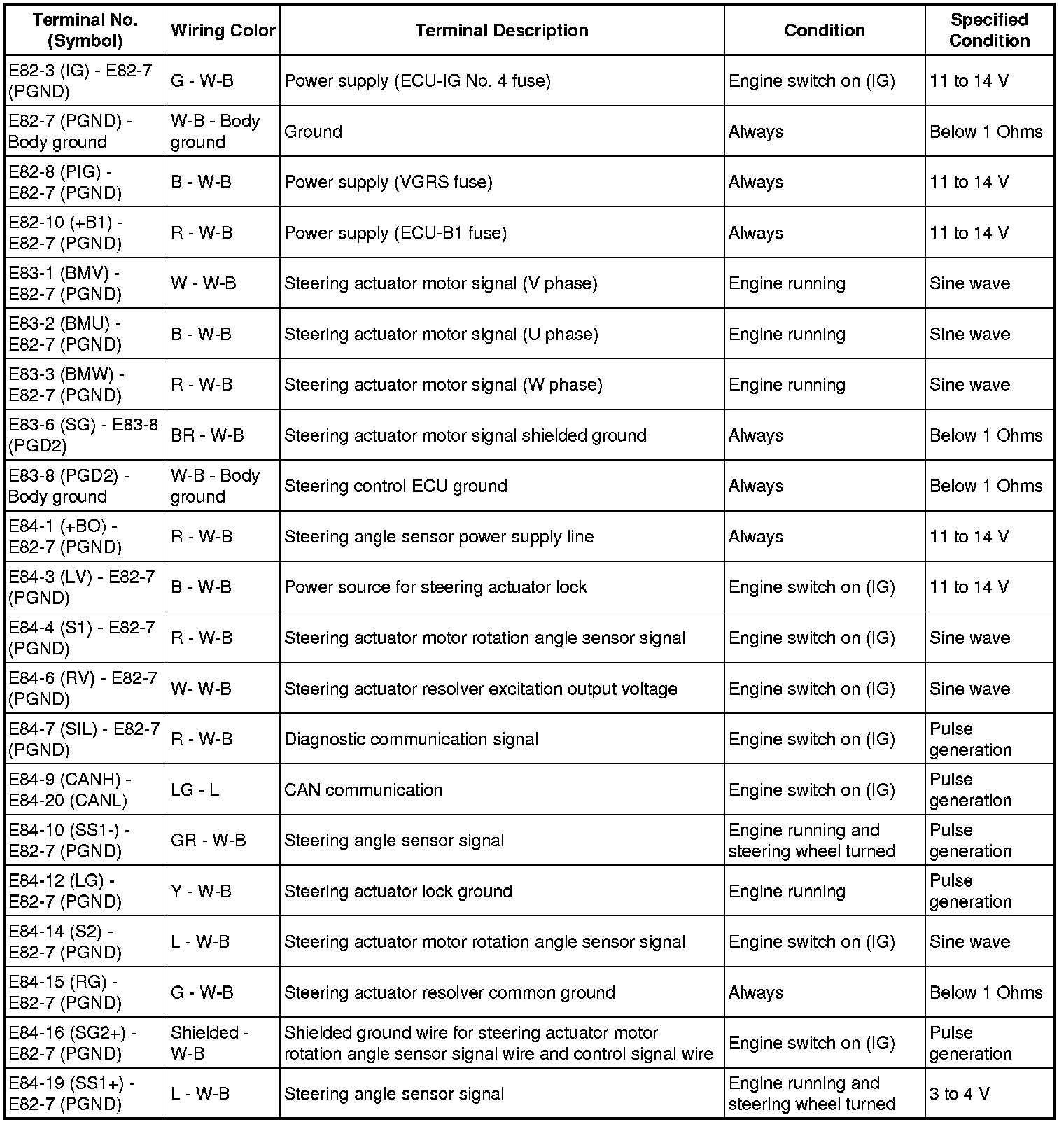

1. CHECK STEERING CONTROL ECU
HINT:
Inspect the connectors from the back side while they are connected.
VARIABLE GEAR RATIO STEERING: VARIABLE GEAR RATIO STEERING SYSTEM: TERMINALS OF ECU
1. CHECK STEERING CONTROL ECU
HINT:
Inspect the connectors from the back side while they are connected.
