Steering Wheel: Testing and Inspection

STEERING COLUMN: STEERING WHEEL: INSPECTION

CAUTION:
The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the PRECAUTION in the SRS Service Precautions.

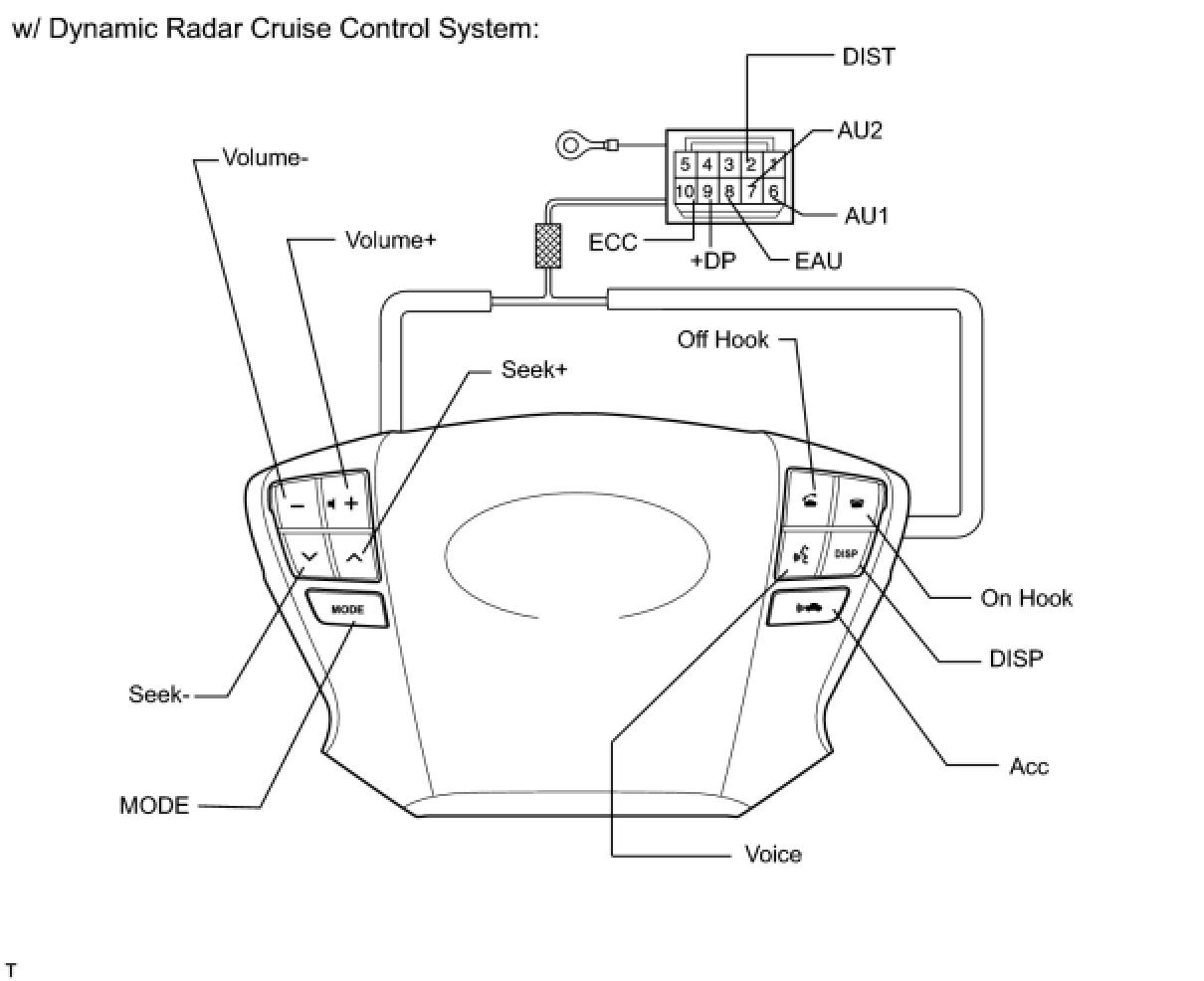

1. INSPECT STEERING PAD SWITCH ASSEMBLY (w/ Dynamic Radar Cruise Control System)
(a) Disconnect the z35 switch connector.





Measure the resistance according to the value(s) in the table below.

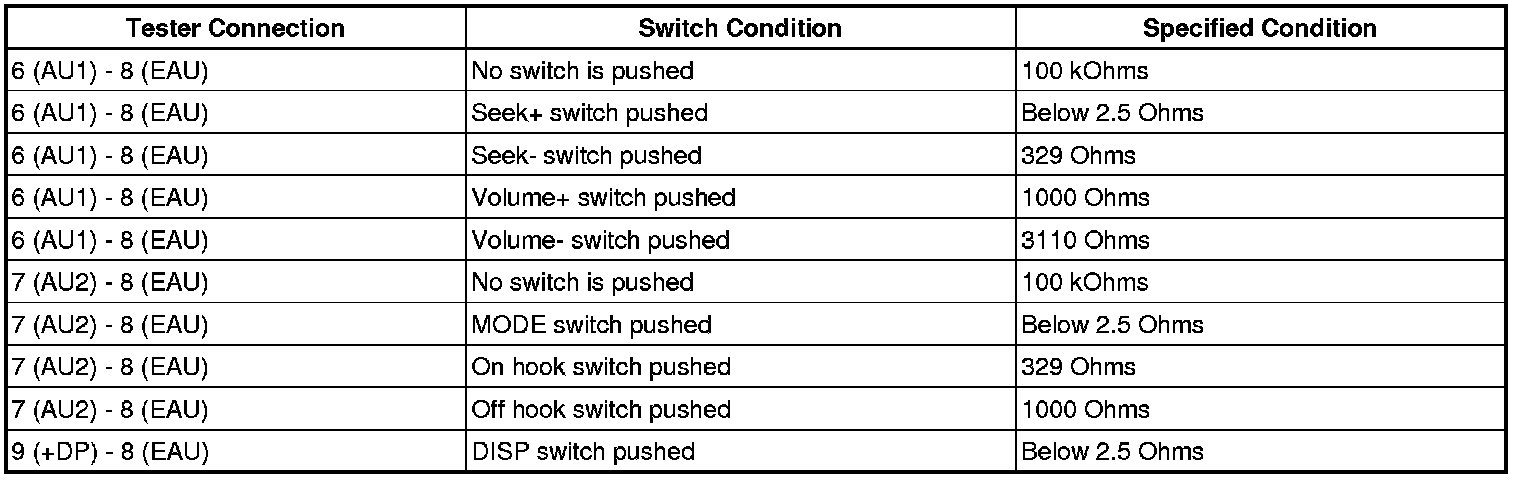

Standard Resistance:





If the result is not as specified, replace the steering switch assembly.

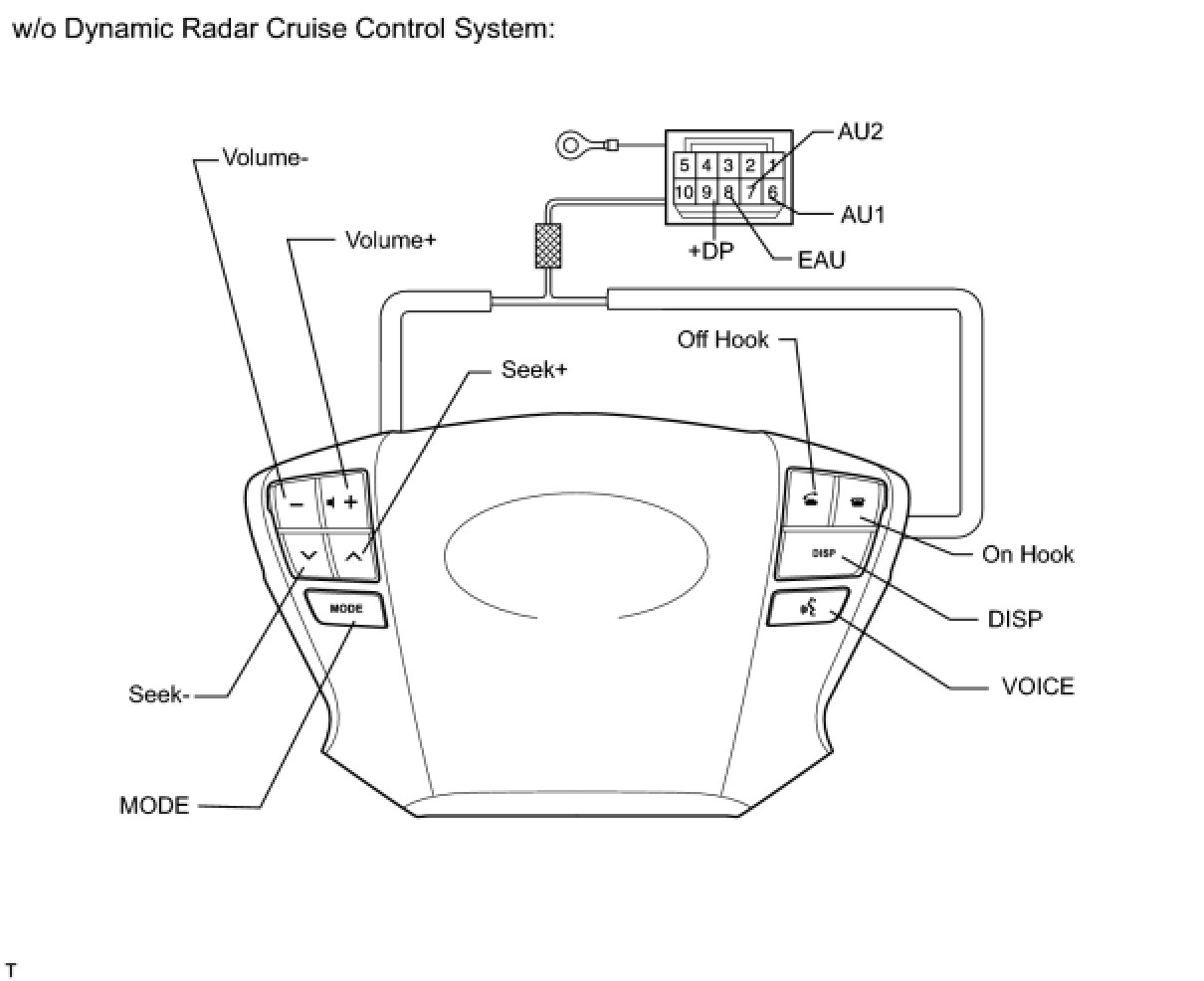

2. INSPECT STEERING PAD SWITCH ASSEMBLY (w/o Dynamic Radar Cruise Control System)
(a) Disconnect the z35 switch connector.





Measure the resistance according to the value(s) in the table below.

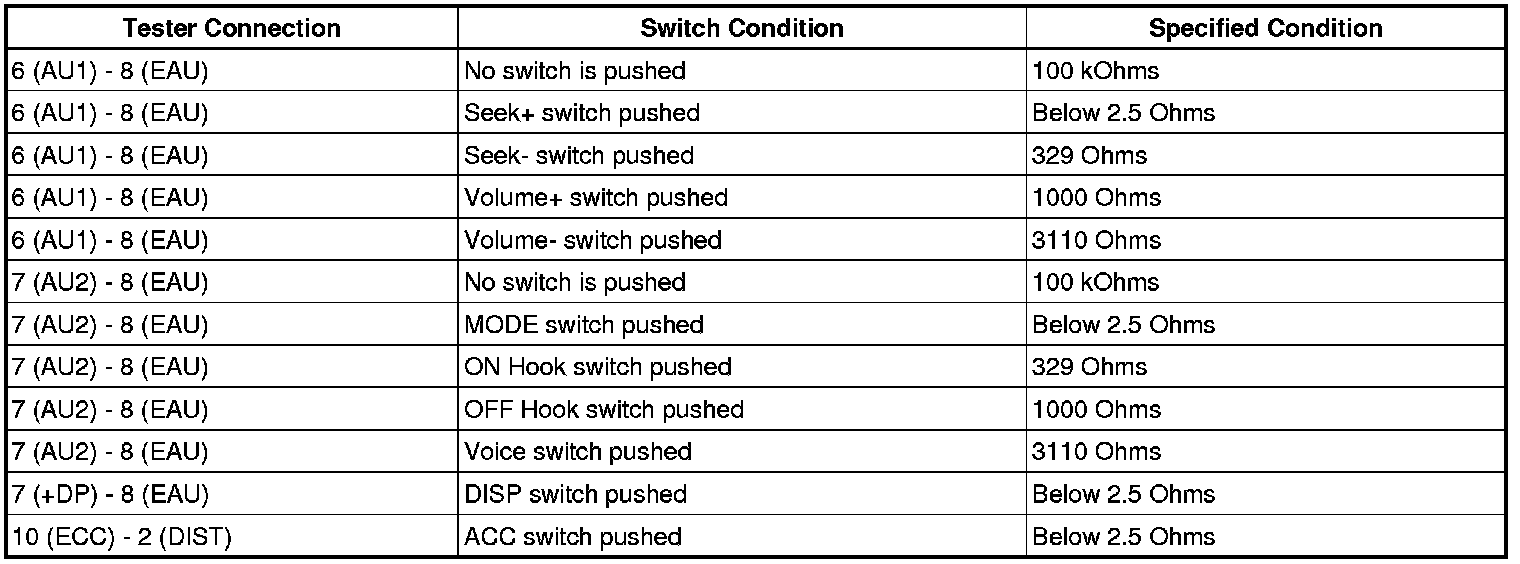

Standard Resistance:





If the result is not as specified, replace the steering pad switch assembly.
