Power Tilt and Power Telescopic Steering Column System

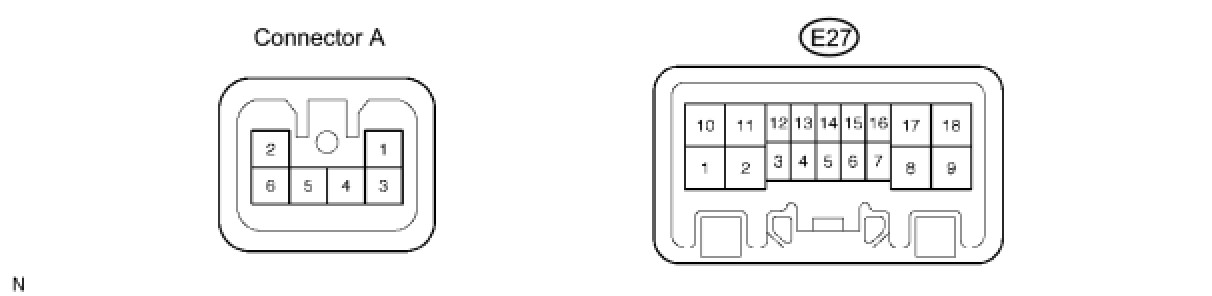

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: TERMINALS OF ECU

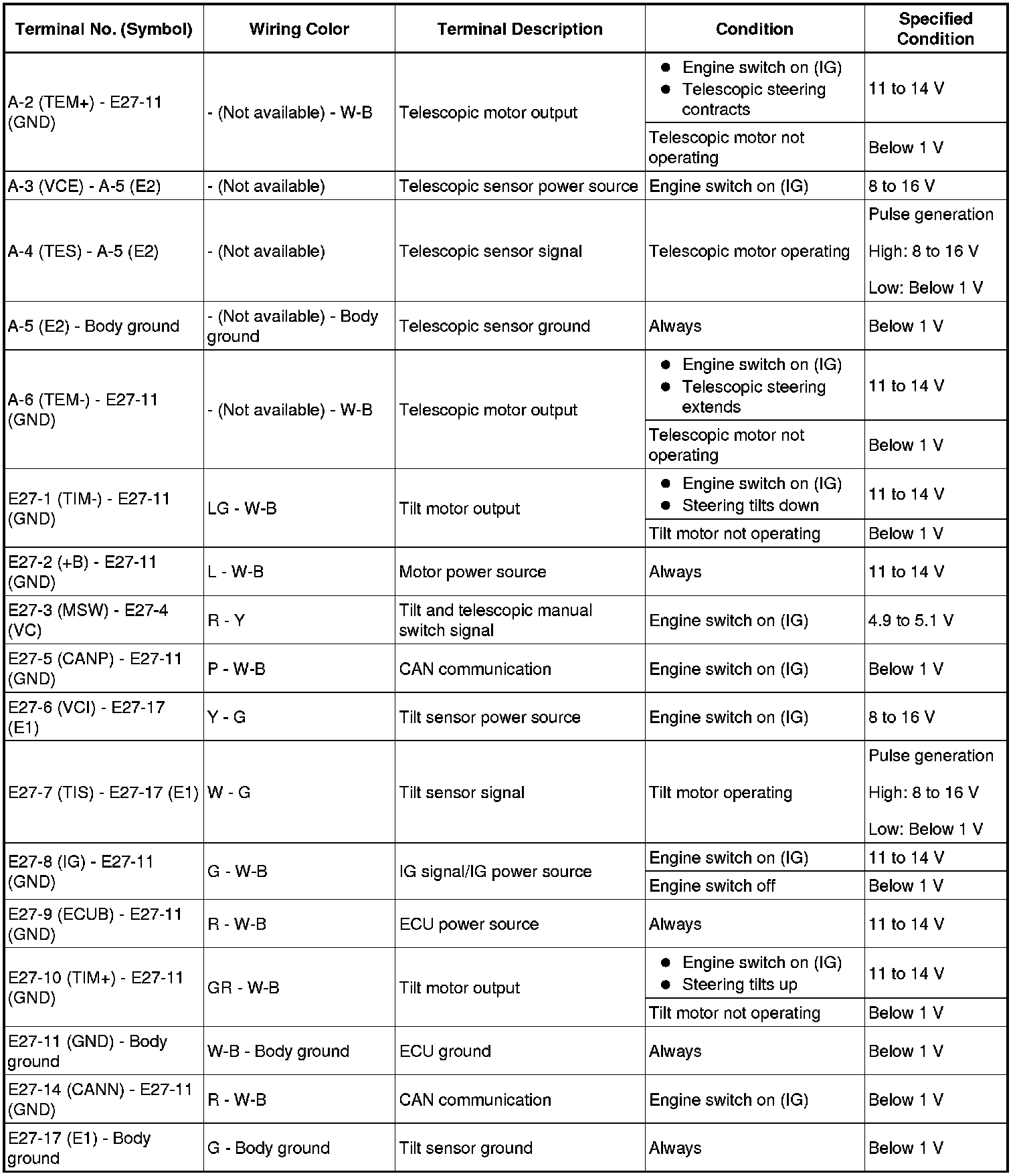

1. CHECK MULTIPLEX TILT AND TELESCOPIC ECU
