Inspection









STEERING COLUMN: STEERING COLUMN ASSEMBLY: INSPECTION





1. INSPECT STEERING COLUMN ASSEMBLY

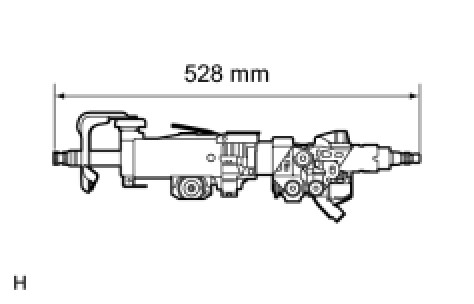

(a) Measure the length of the steering main shaft.
Standard length:
528 mm (1.73 ft.)
