Steering Lock System

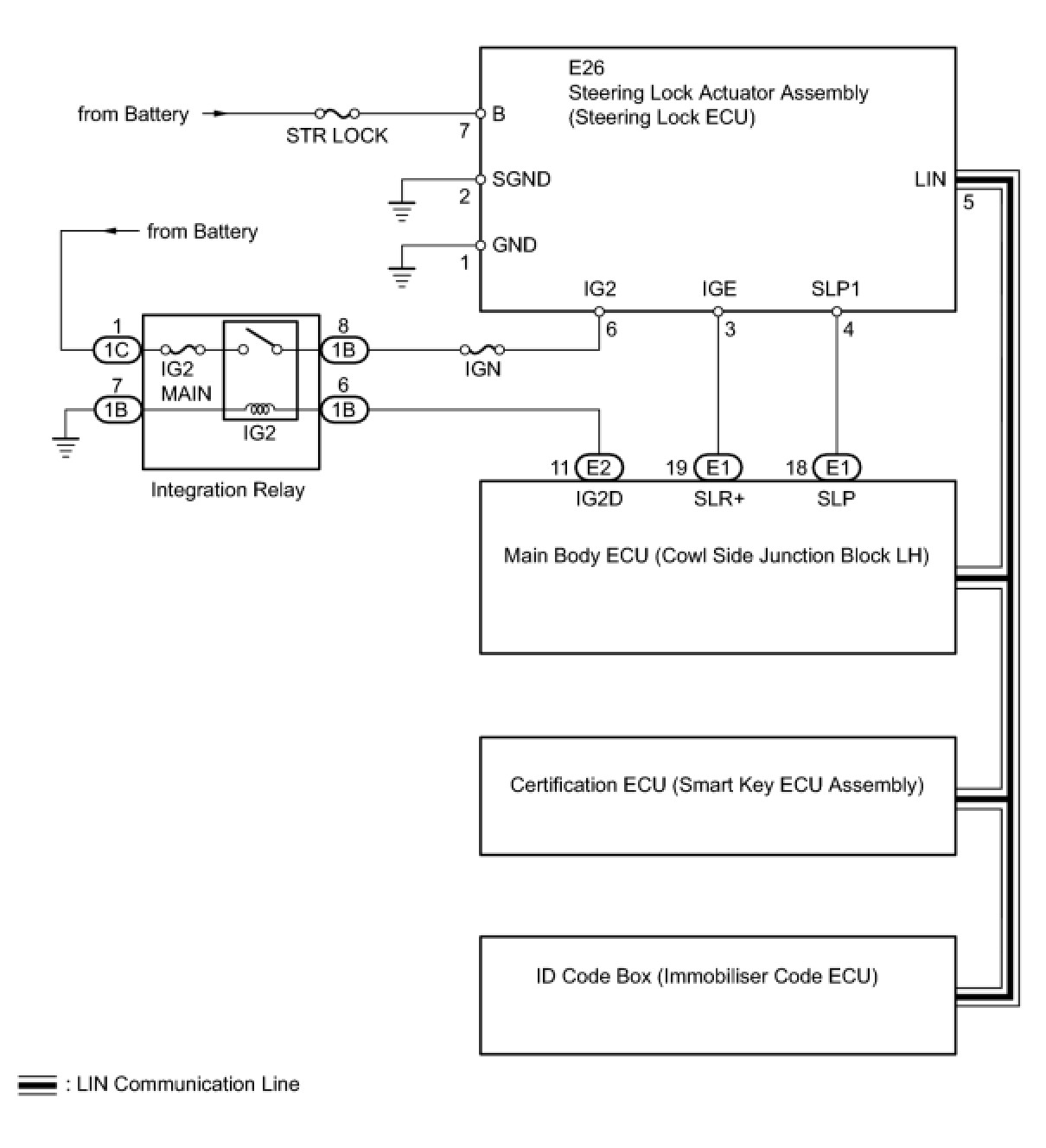

STEERING COLUMN: STEERING LOCK SYSTEM: SYSTEM DIAGRAM

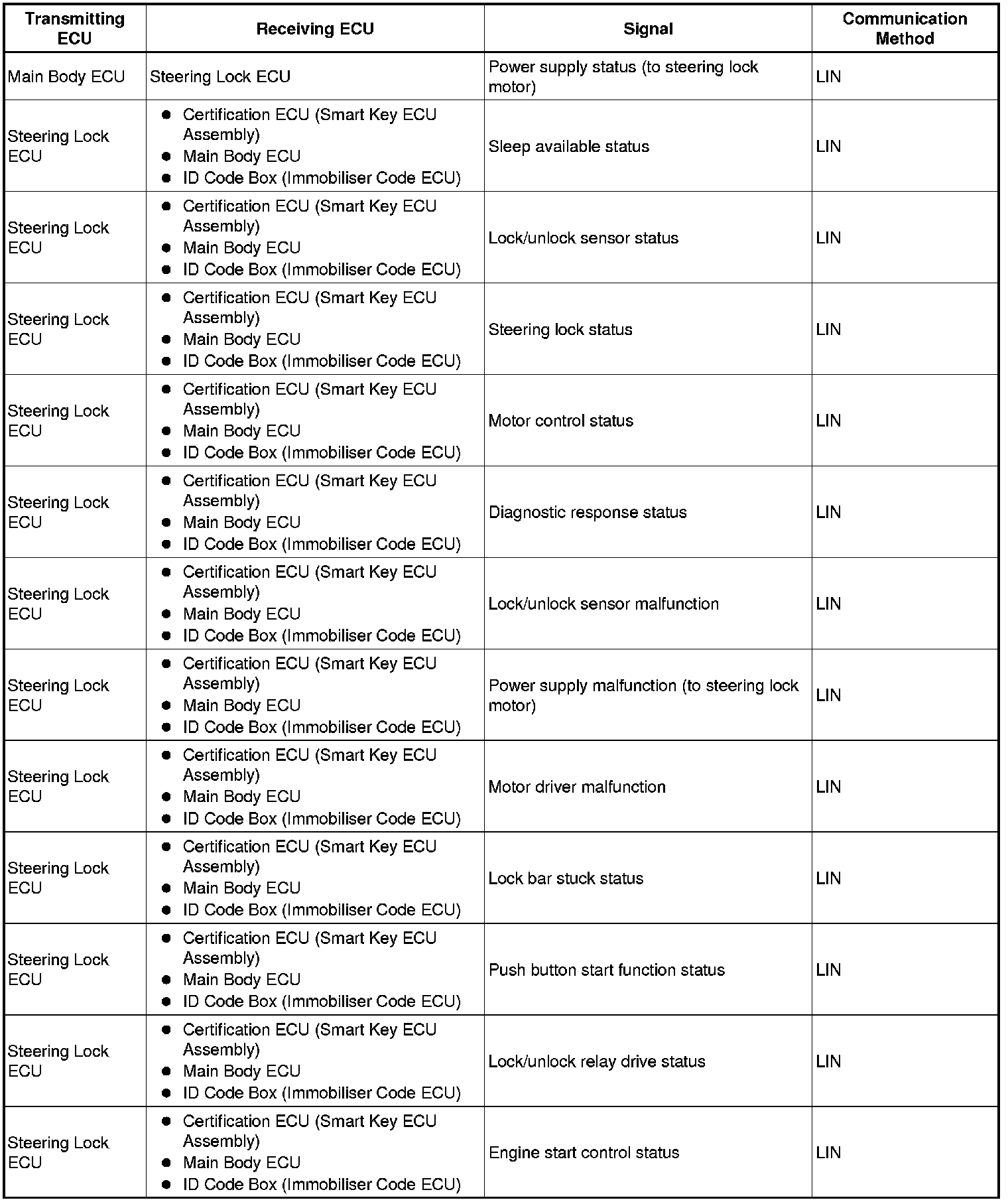

Input and Output Signals of Each ECU





STEERING COLUMN: STEERING LOCK SYSTEM: SYSTEM DESCRIPTION

1. DESCRIPTION
(a) The steering lock system locks and unlocks the steering lock by activating the steering lock bar with a motor. The steering lock ECU activates the motor based on permission signals from the certification ECU (smart key ECU assembly) and main body ECU.

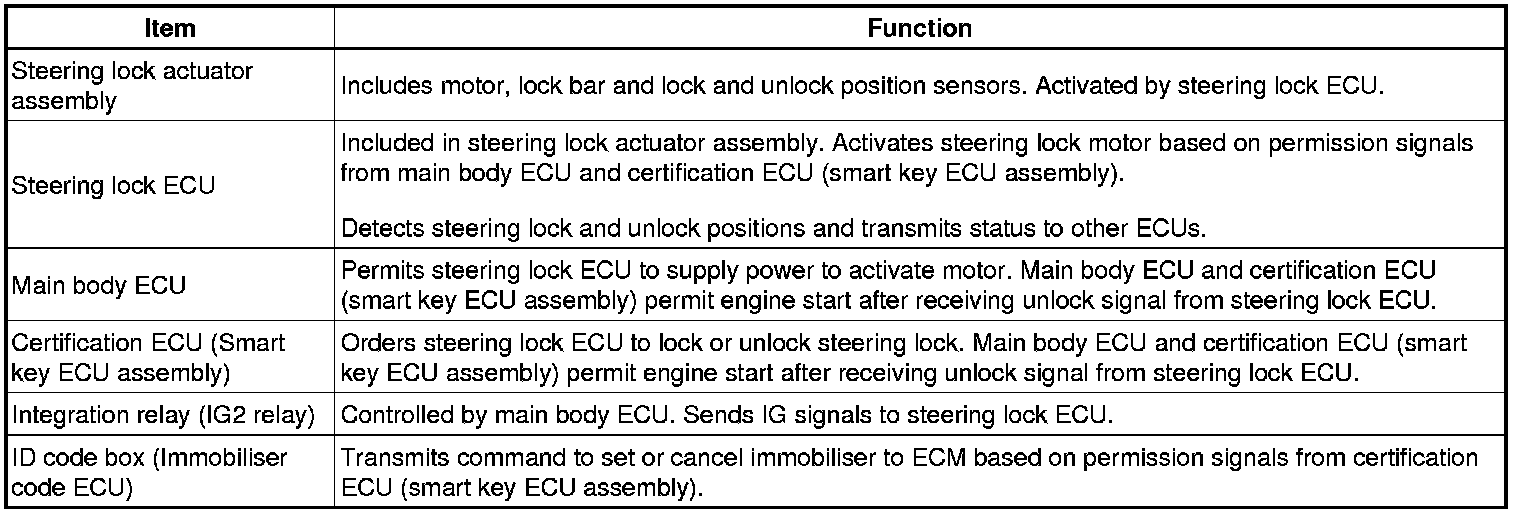

2. FUNCTIONS OF COMPONENTS










3. WARNING FUNCTION OF ENGINE SWITCH INDICATOR

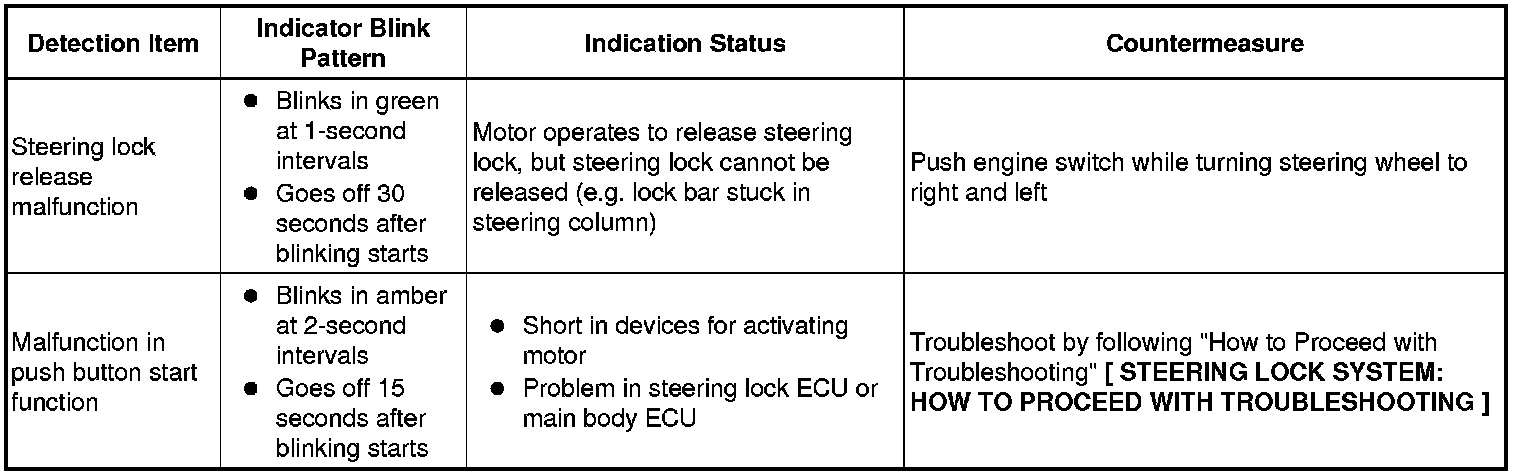

(a) The main body ECU blinks the LED indicator of the engine switch when any of the following problems occur in the system.
