Tilt Wheel Switch: Testing and Inspection

STEERING COLUMN: TILT AND TELESCOPIC MANUAL SWITCH: INSPECTION

1. INSPECT TILT AND TELESCOPIC MANUAL SWITCH

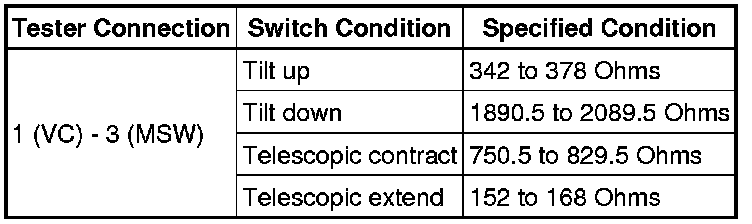

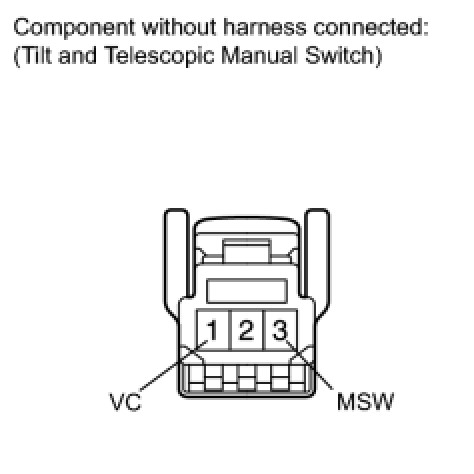

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the tilt and telescopic manual switch.
