Neutral Safety Switch: Adjustments

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: ADJUSTMENT





1. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Loosen the bolt of the park/neutral position switch and move the shift lever to N.

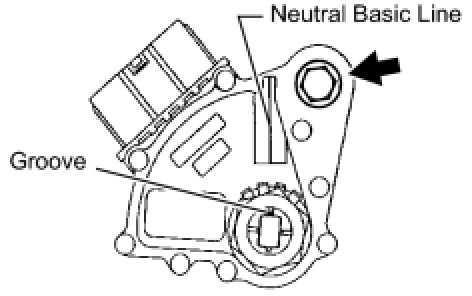

(b) Align the groove with the neutral basic line.
(c) Hold the switch in the position described above and tighten the bolt.
Torque: 13 Nm (130 kgf-cm, 10 ft-lbf)
(d) After the adjustment, perform the on-vehicle inspection On-Vehicle Inspection.
