Home >> Lexus >> 2008 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering and Suspension >> Steering >> Steering Column >> Torque Specifications

Torque Specifications









SPECIFICATIONS: STEERING COLUMN: TORQUE SPECIFICATIONS

Steering System

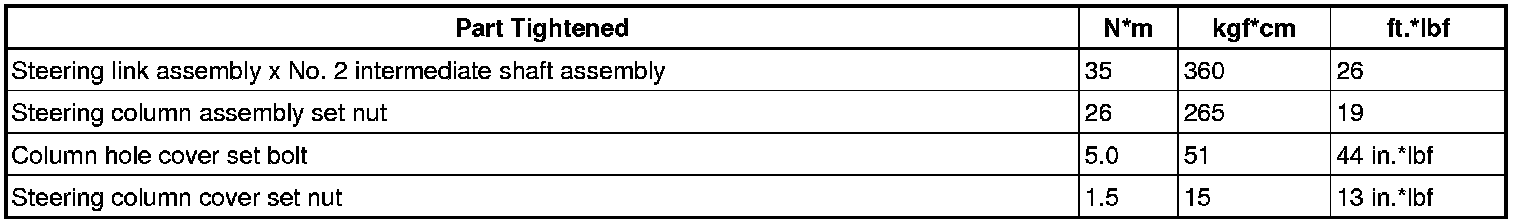

Steering Column Assembly

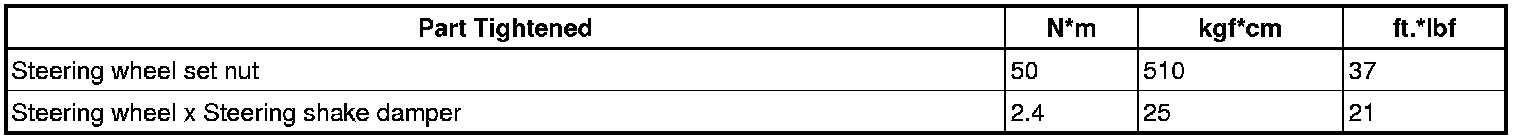

Steering Wheel





Multiplex Tilt and Telescopic ECU





Tilt and Telescopic Manual Switch
