Seat Belt Systems









SPECIFICATIONS: SEAT BELT: TORQUE SPECIFICATIONS

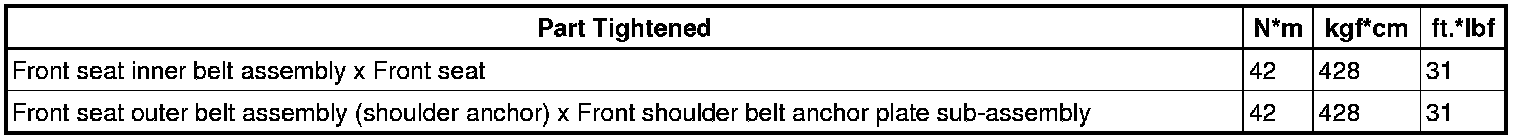

Front Seat Inner Belt Assembly

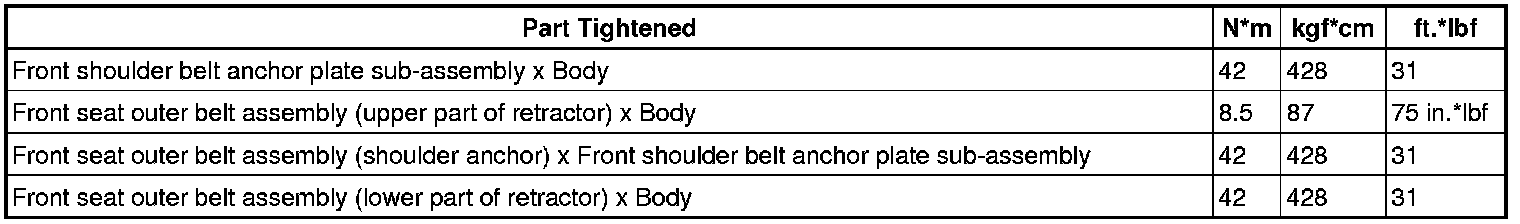

Front Seat Outer Belt Assembly

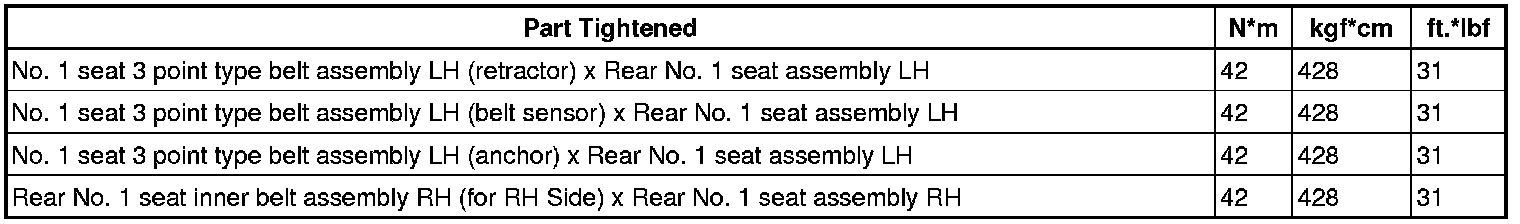

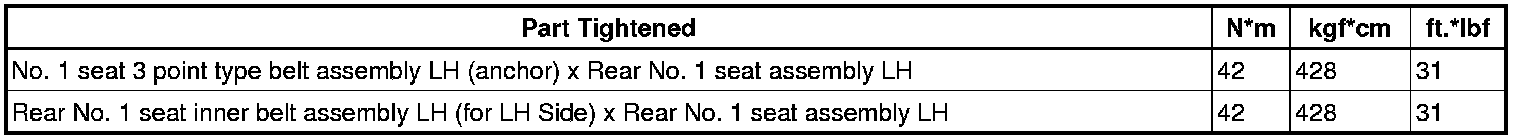

Rear No. 1 Seat Inner Belt Assembly (for LH Side)





Rear No. 1 Seat Inner Belt Assembly (for RH Side)

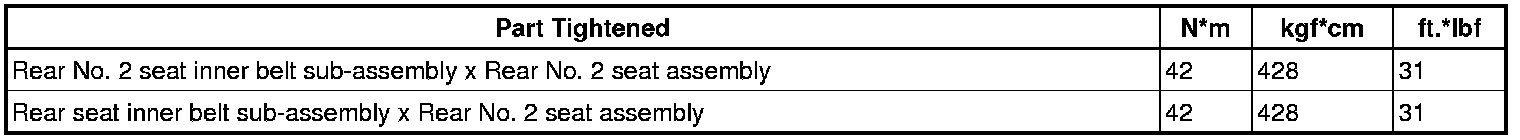

Rear No. 2 Seat Inner Belt Assembly

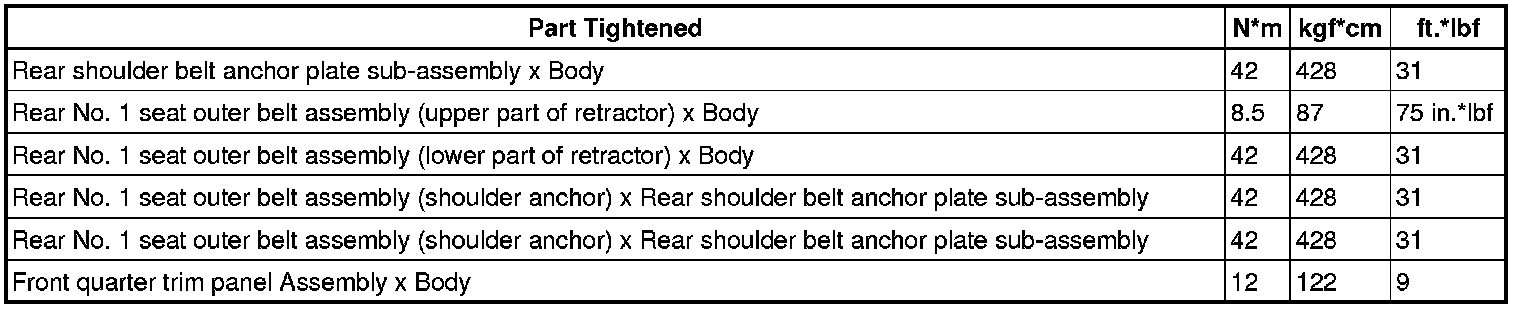

Rear No. 1 Seat Outer Belt Assembly

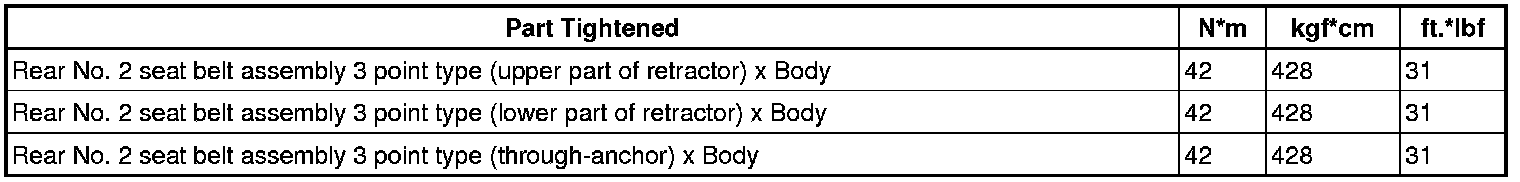

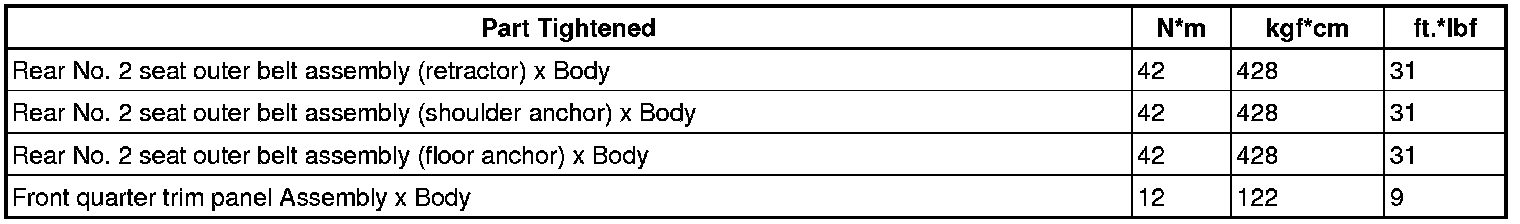

Rear No. 2 Seat Outer Belt Assembly





Rear Center Seat Inner Belt Assembly (for Rear No. 1 Seat)





Rear Center Seat Inner Belt Assembly (for Rear No. 2 Seat)





Rear Center Seat Outer Belt Assembly (for Rear No. 1 Seat)





Rear Center Seat Outer Belt Assembly (for Rear No. 2 Seat)
