Exhaust Manifold

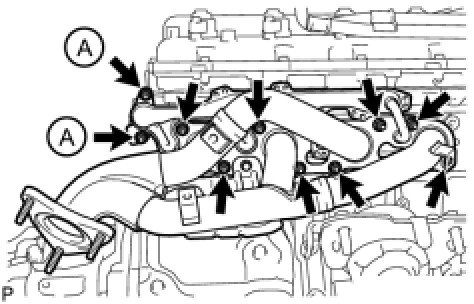

Exhaust Manifold RH





Temporarily install the exhaust manifold with the 2 nuts labeled A and 8 new nuts.
Uniformly tighten the nuts that are not labeled A, and then tighten the 2 nuts labeled A.
For nut A - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
Except nut A - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

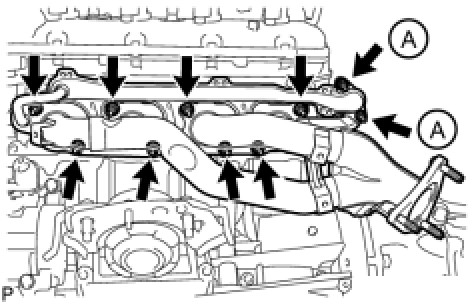

Exhaust Manifold LH





Temporarily install the exhaust manifold with the 2 nuts labeled A and 8 new nuts.
Uniformly tighten the nuts that are not labeled A, and then tighten the 2 nuts labeled A.
For nut A - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
Except nut A - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
