Torque Specifications

SPECIFICATIONS: BRAKE (REAR): TORQUE SPECIFICATIONS

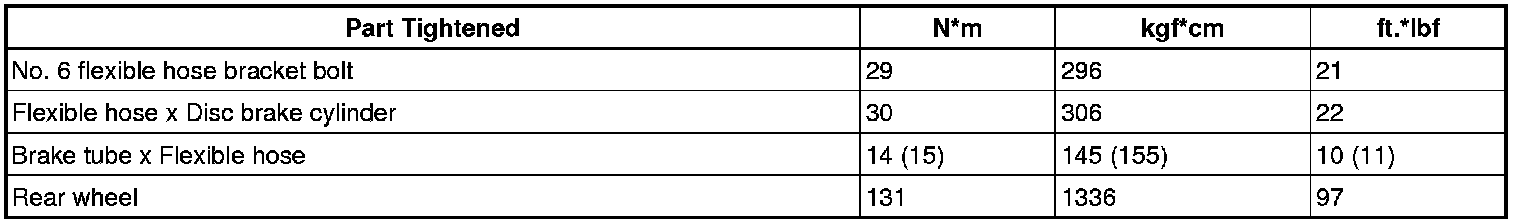

Rear Brake

Rear Brake Flexible Hose

( ): For use without union nut wrench
