Torque Specifications









SPECIFICATIONS: BRAKE (FRONT): TORQUE SPECIFICATIONS

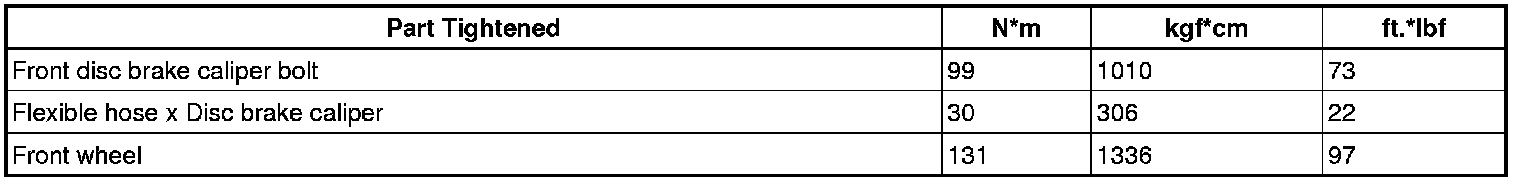

Front Brake

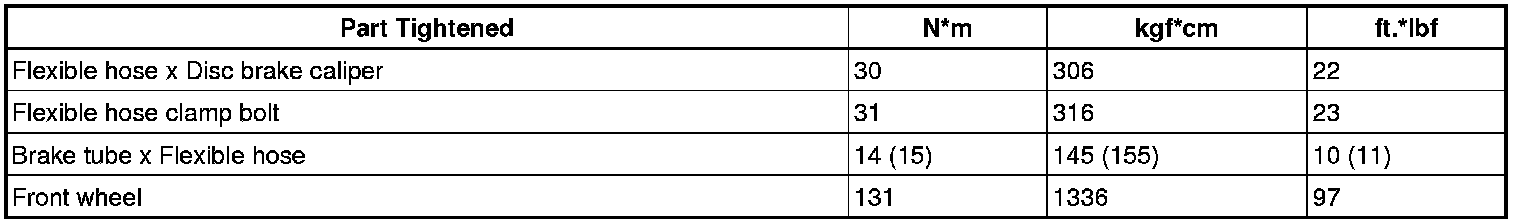

Front Brake Flexible Hose





( ): For use without union nut wrench
