Torque Specifications









SPECIFICATIONS: PARKING BRAKE: TORQUE SPECIFICATIONS

Parking Brake System

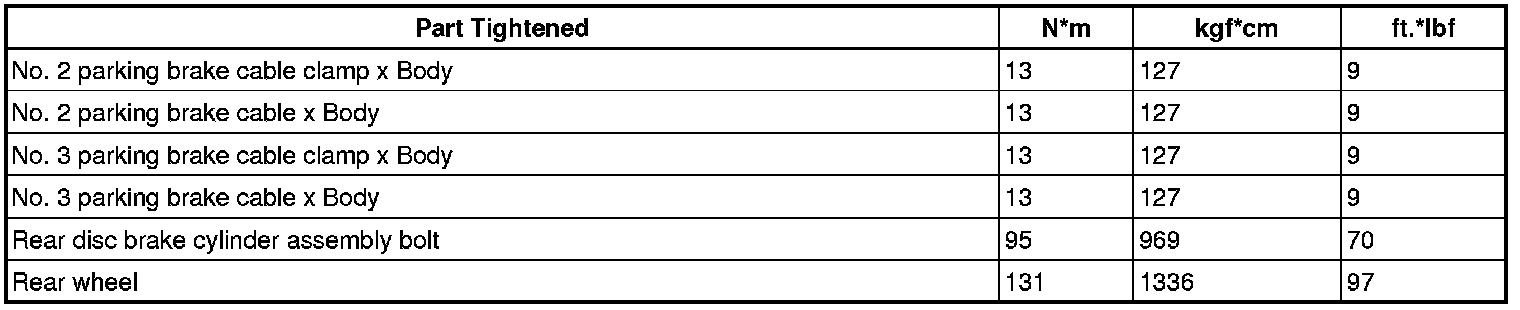

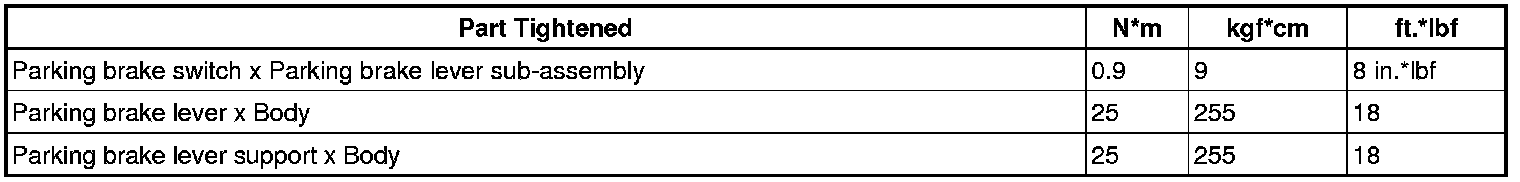

Parking Brake Lever





Parking Brake Cable

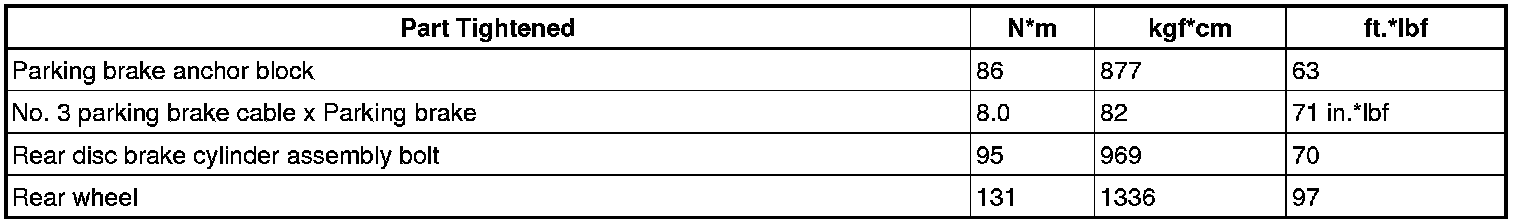

Parking Brake Assembly
