Torque Specifications









SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

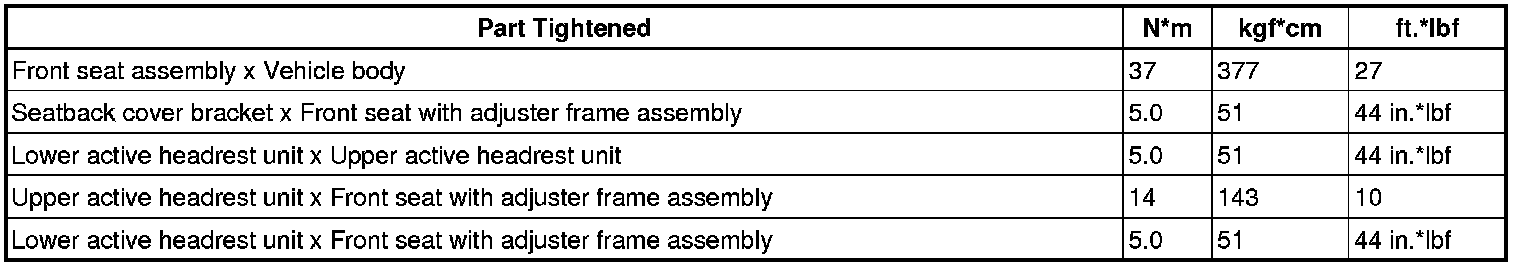

Front Seat Assembly

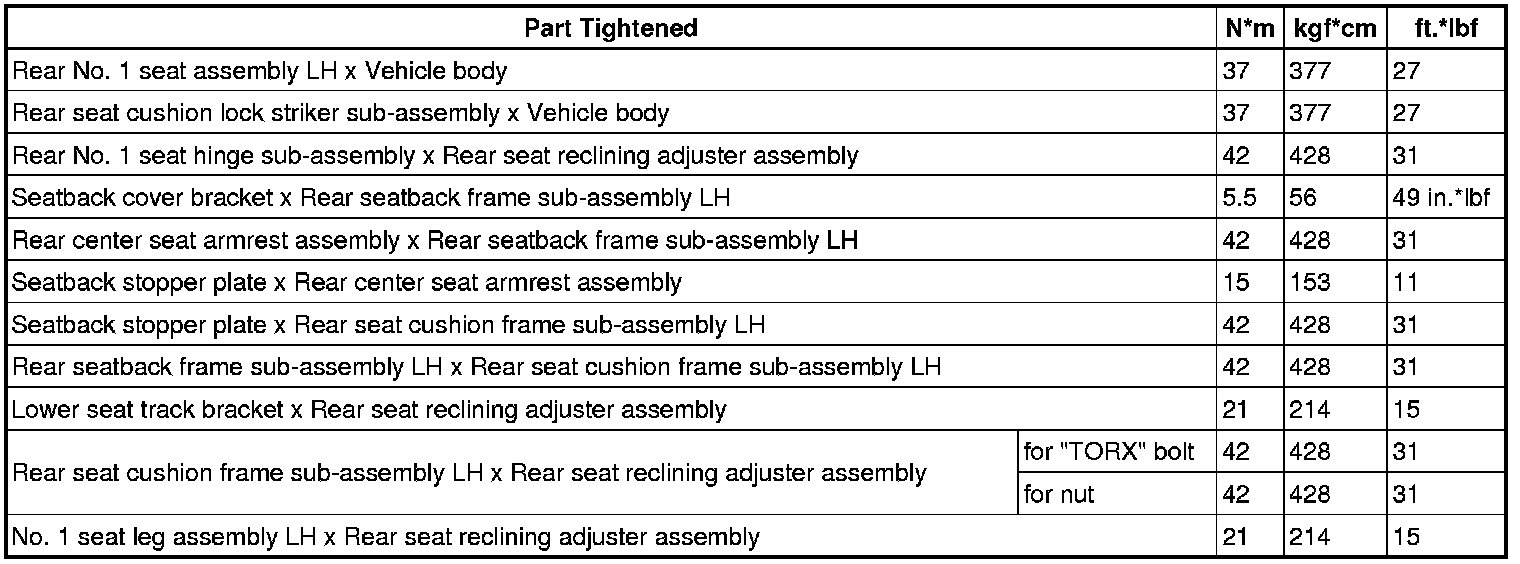

Rear No. 1 Seat Assembly (for LH Side)

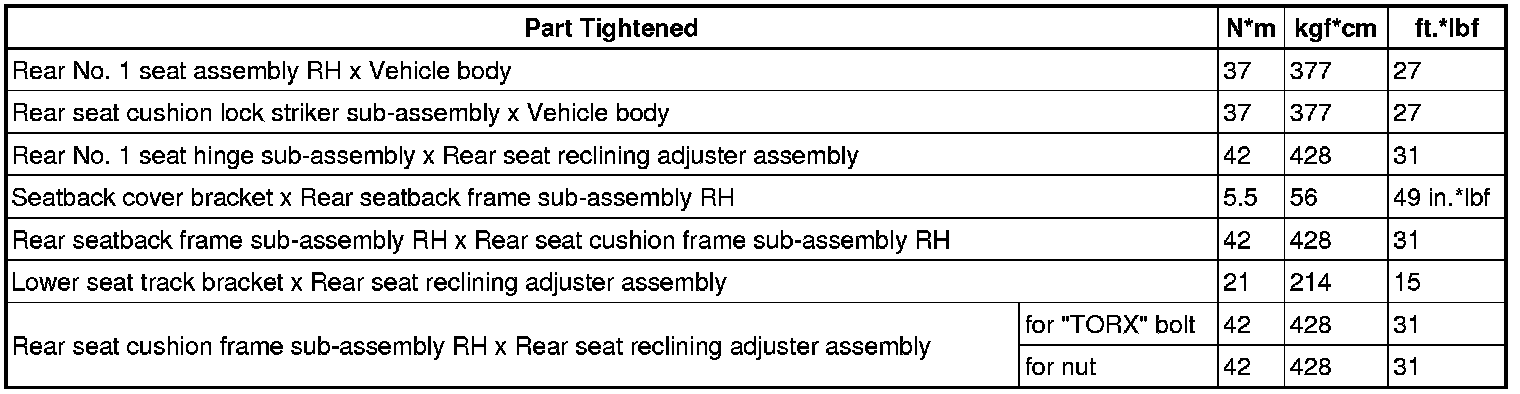

Rear No. 1 Seat Assembly (for RH Side)

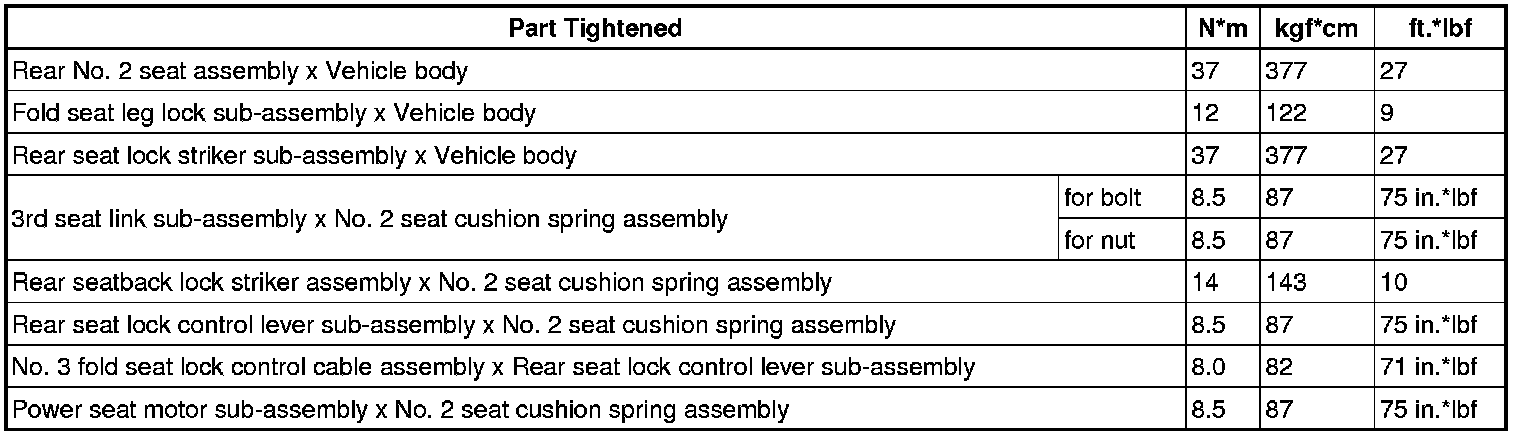

Rear No. 2 Seat Assembly
