Torque Specifications









SPECIFICATIONS: INTERIOR PANELS / TRIM: TORQUE SPECIFICATIONS

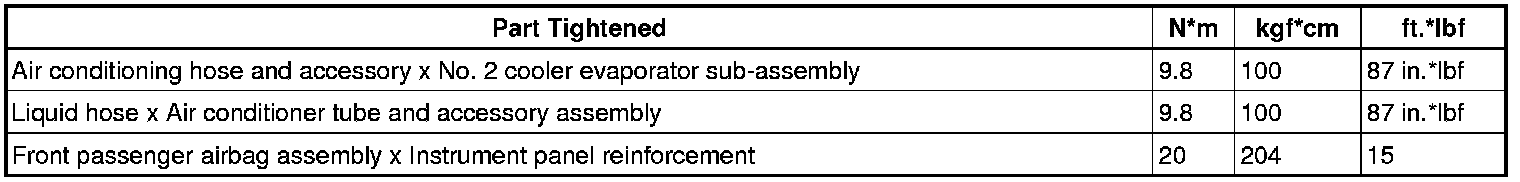

Instrument Panel Safety Pad

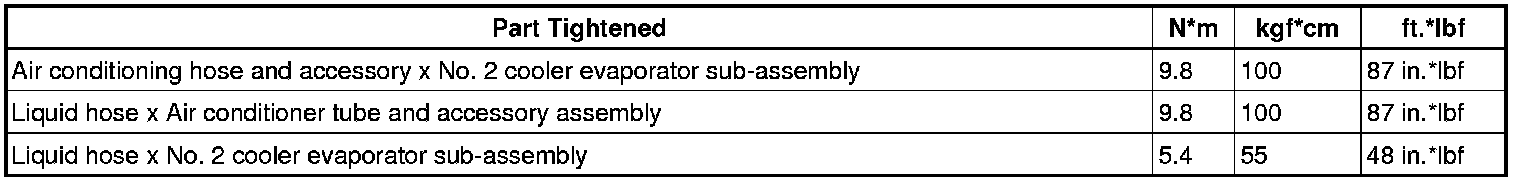

Front Console Box (w/ Cool Box)





Roof Headlining

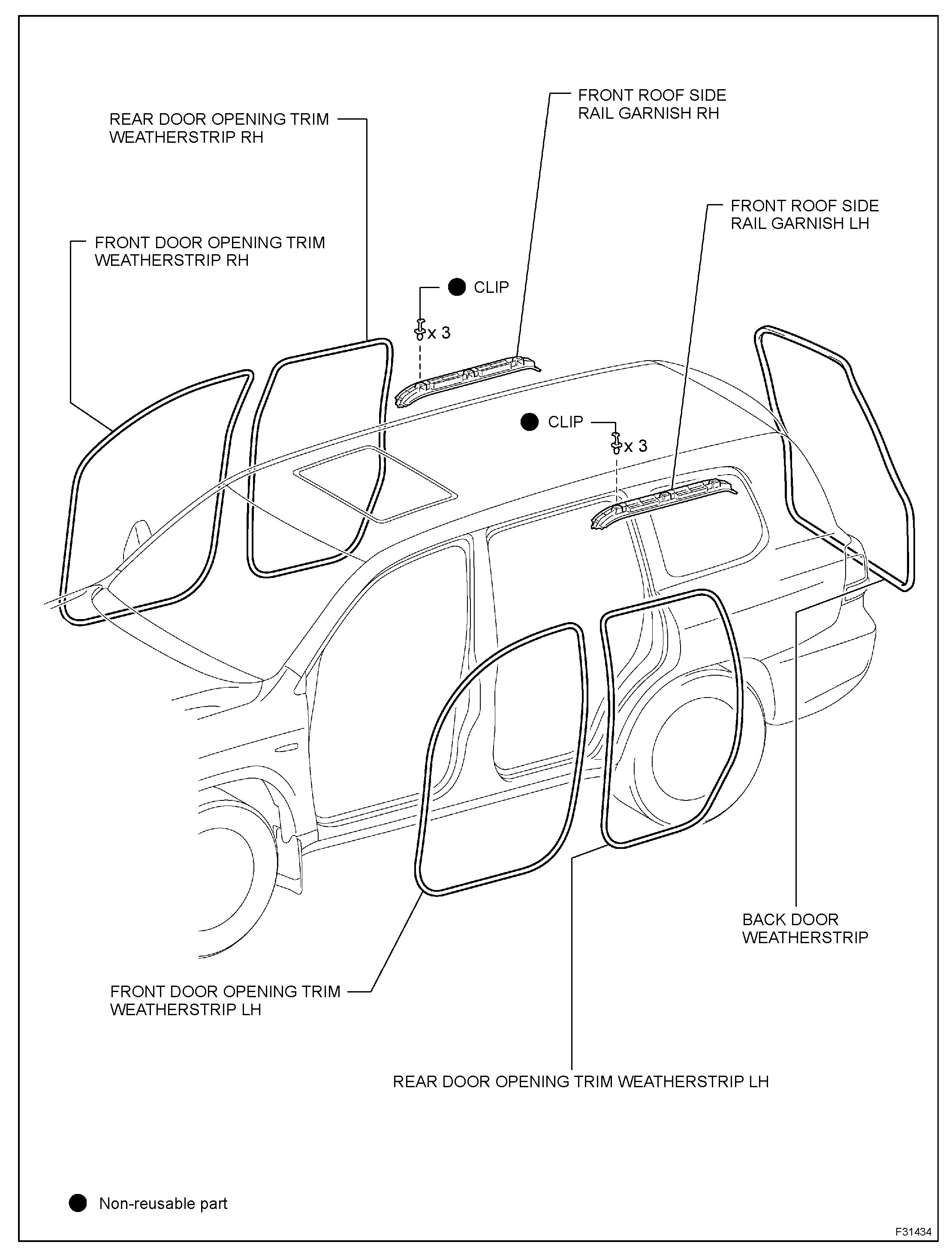

Rear Door Opening Trim Weatherstrip

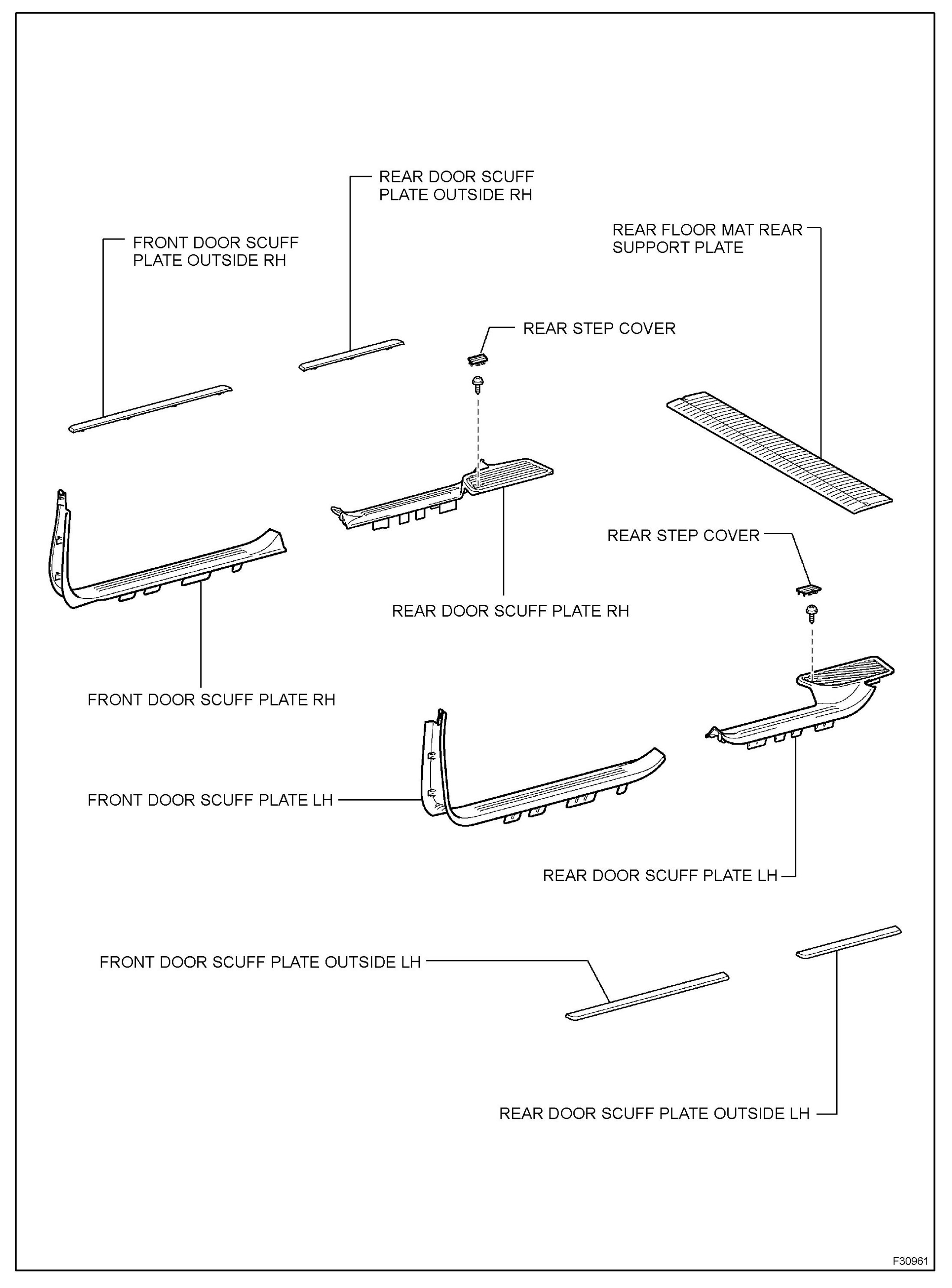

Rear Door Scuff Plate Outside

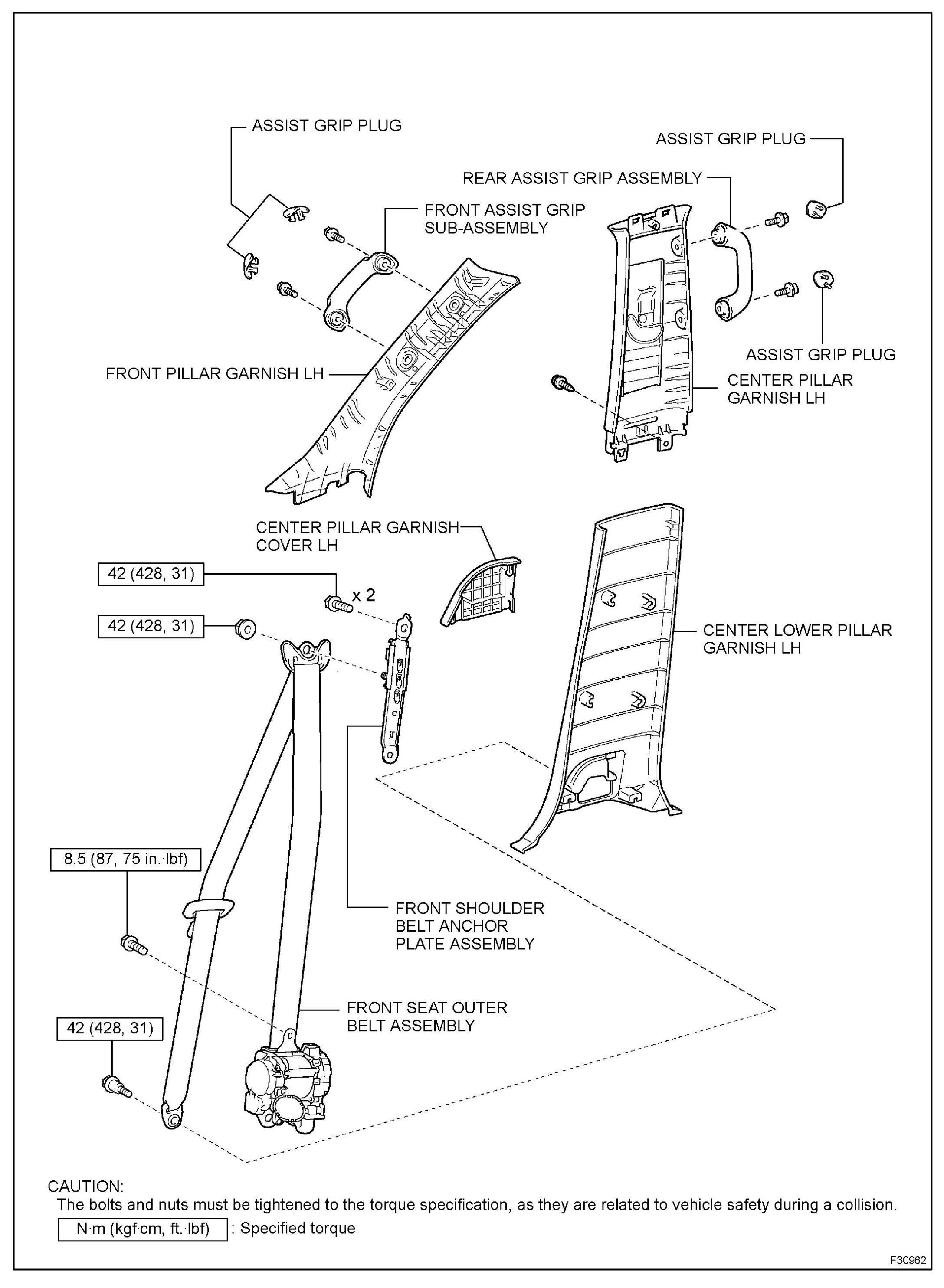

Pillar Garnish

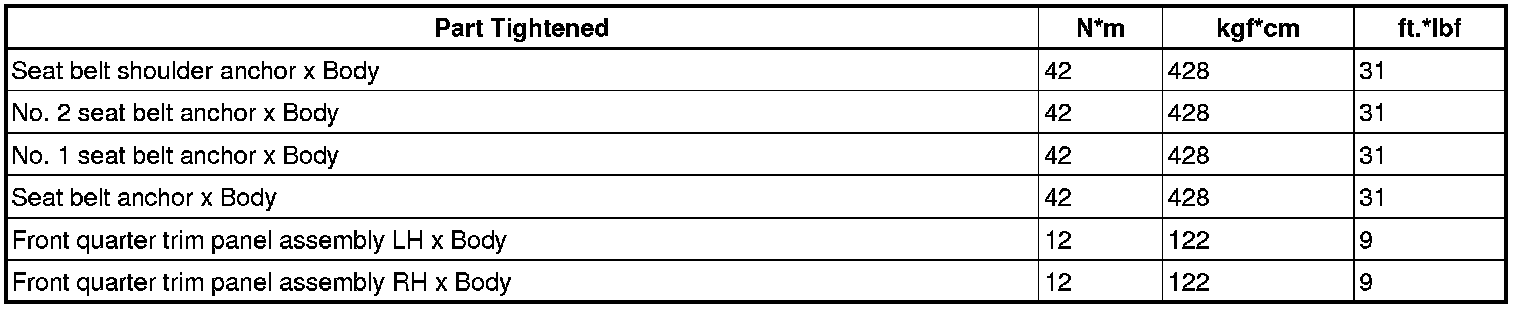

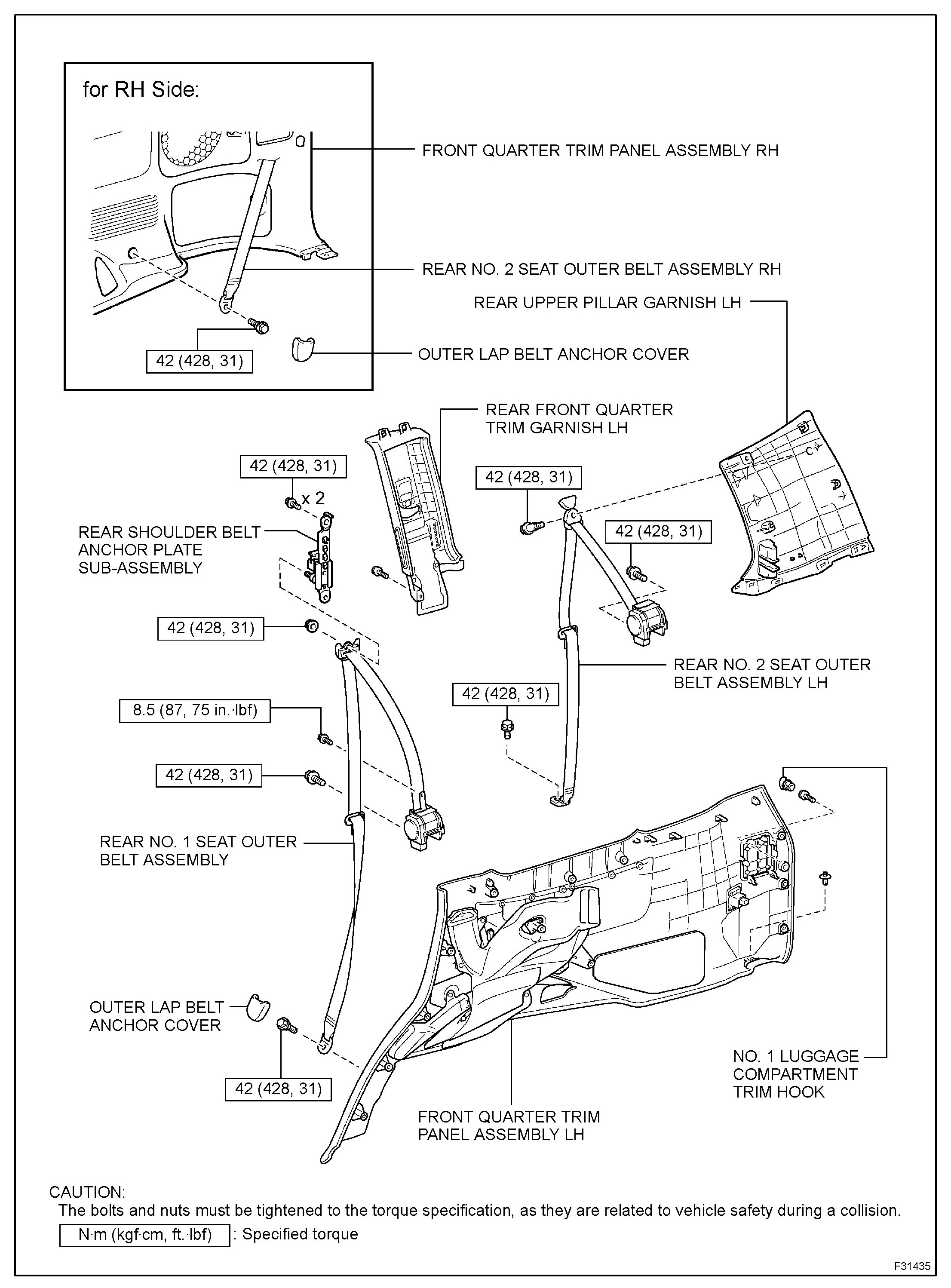

Quarter Trim Garnish

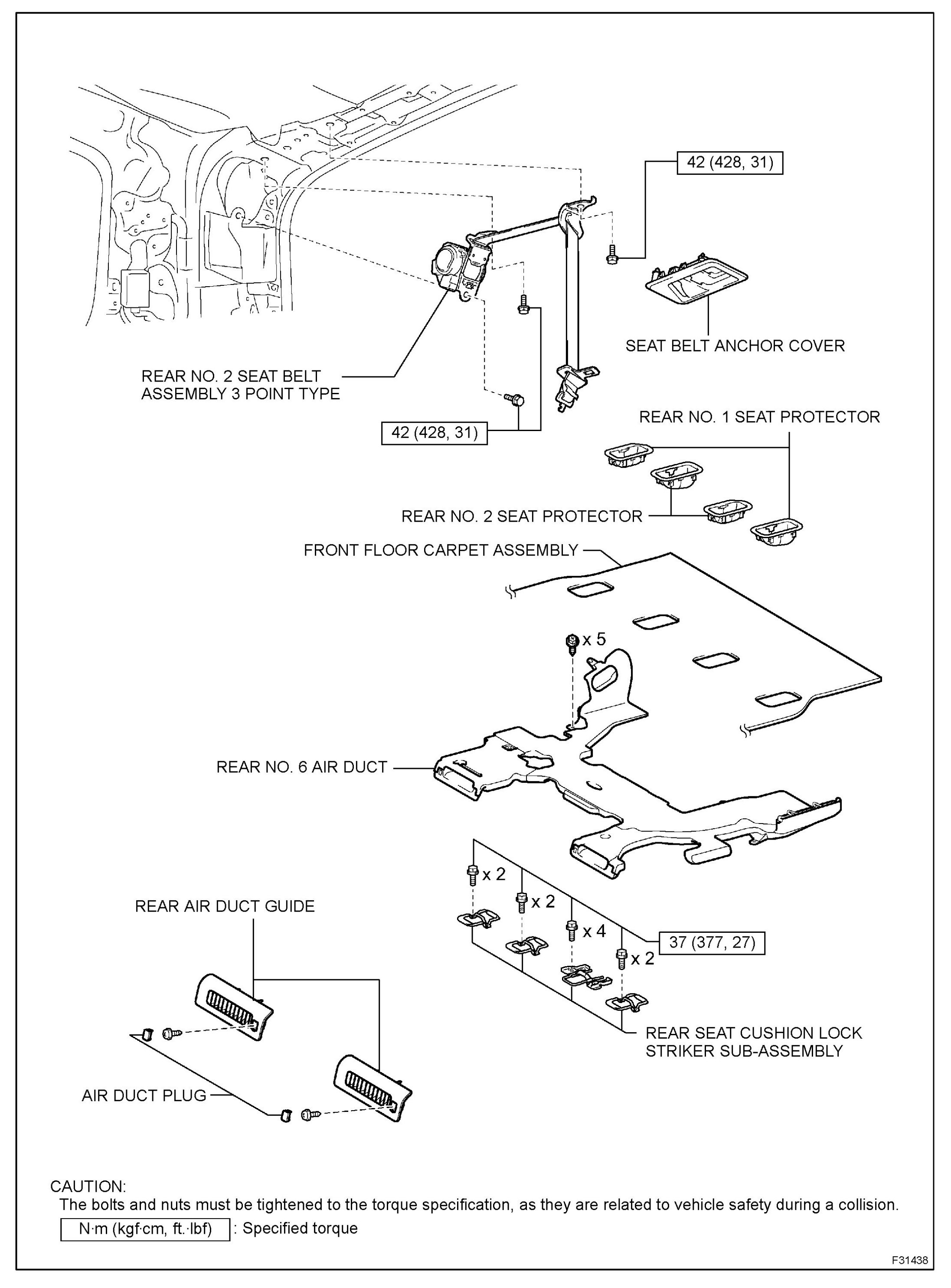

Carpet and Ducts

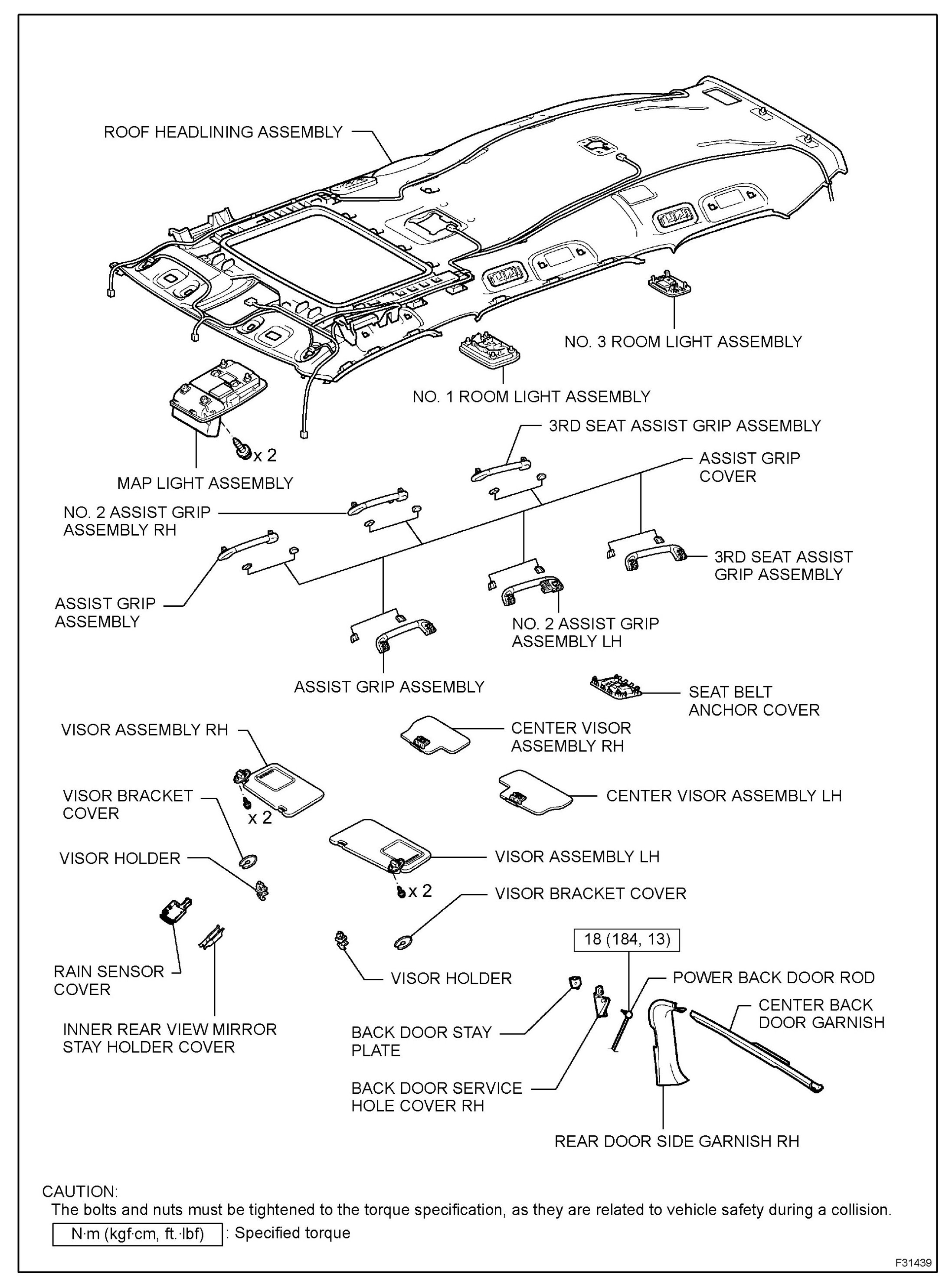

Roof Headlining Assembly
