Power Back Door Main Switch

DOOR / HATCH: POWER BACK DOOR MAIN SWITCH: INSPECTION

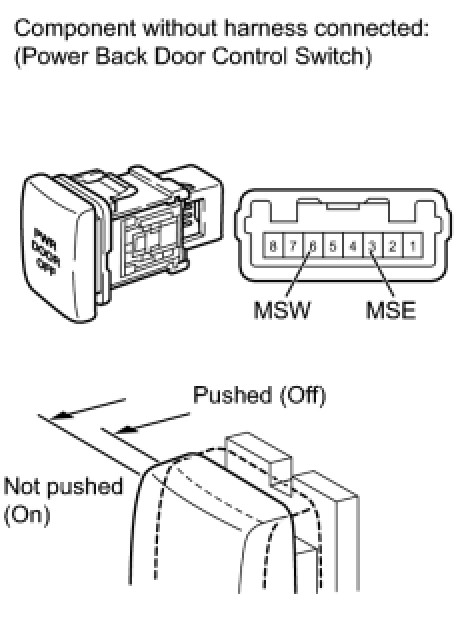

1. INSPECT POWER BACK DOOR MAIN SWITCH

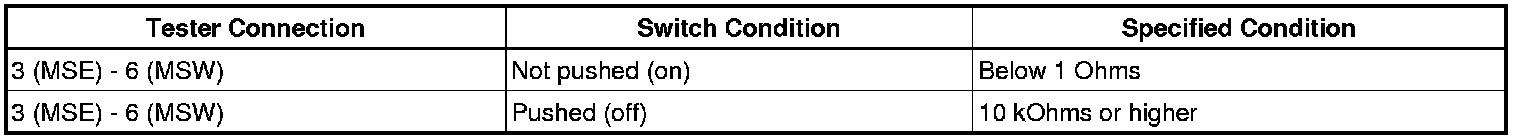

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the power back door main switch.
