Front and Side Monitor Main Switch









PARK ASSIST / MONITORING: FRONT AND SIDE MONITOR MAIN SWITCH: INSPECTION

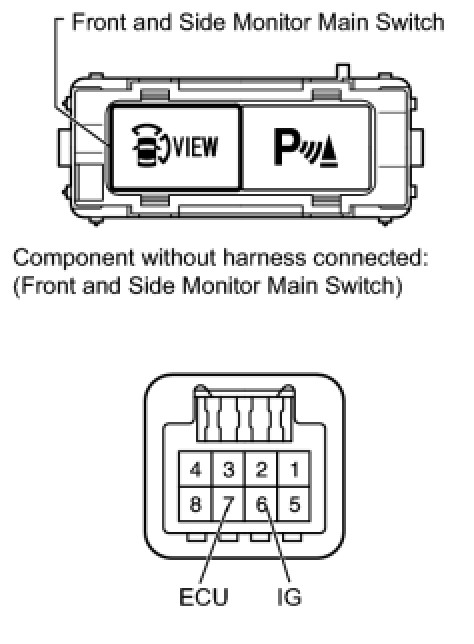

1. INSPECT FRONT AND SIDE MONITOR MAIN SWITCH

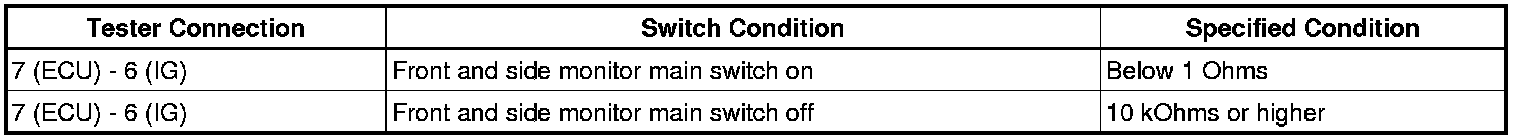

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the switch.
