Fail-Safe Chart

SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION SYSTEM: FAIL-SAFE CHART

1. FAIL SAFE FUNCTION

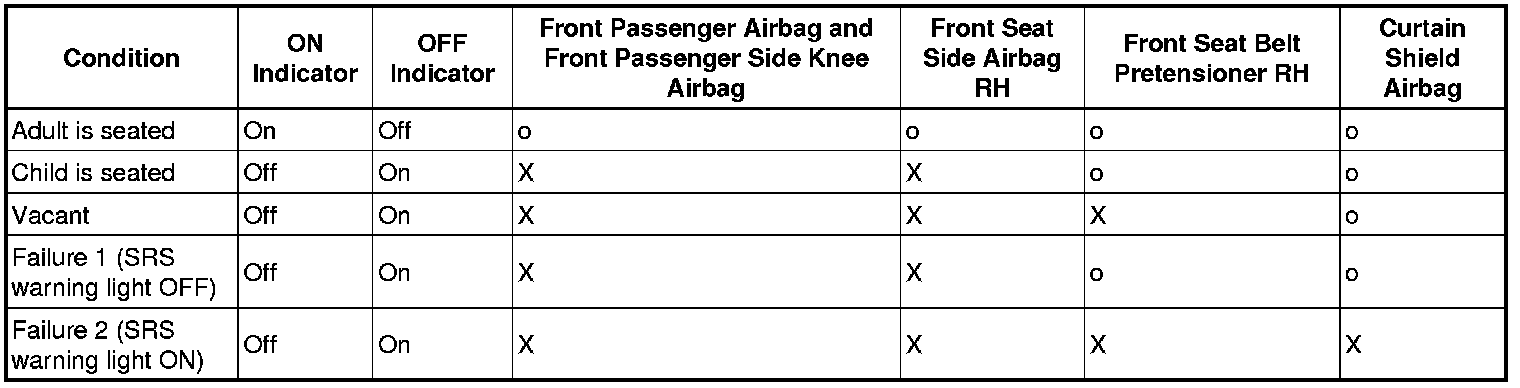

(a) The following chart shows the status of the controls when the system is normal and malfunctioning.
- The passenger airbag ON/OFF indicator ("ON" and "OFF") comes on for approximately 4 seconds, then goes off for approximately 2 seconds.
- Approximately 6 seconds after the engine switch is turned on (IG), the passenger airbag ON/OFF indicator will show ("ON" or "OFF") depending on the conditions listed below.





HINT:
o: Deployable
X: Not deployable
