Air Bag Deactivation Switch: Testing and Inspection

SUPPLEMENTAL RESTRAINT SYSTEMS: CURTAIN SHIELD AIRBAG CUTOFF SWITCH: INSPECTION

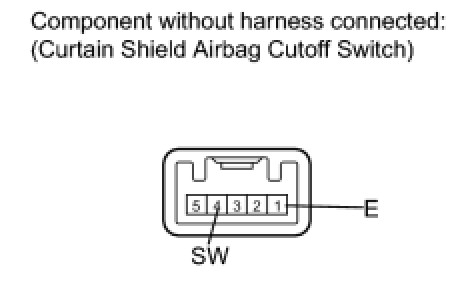

1. INSPECT CURTAIN SHIELD AIRBAG CUTOFF SWITCH

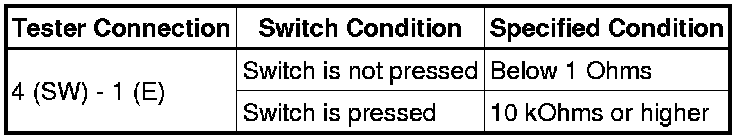

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the curtain shield airbag cutoff switch.
