Pinout Values and Diagnostic Parameters

SEAT BELT: SEAT BELT WARNING SYSTEM: TERMINALS OF ECU

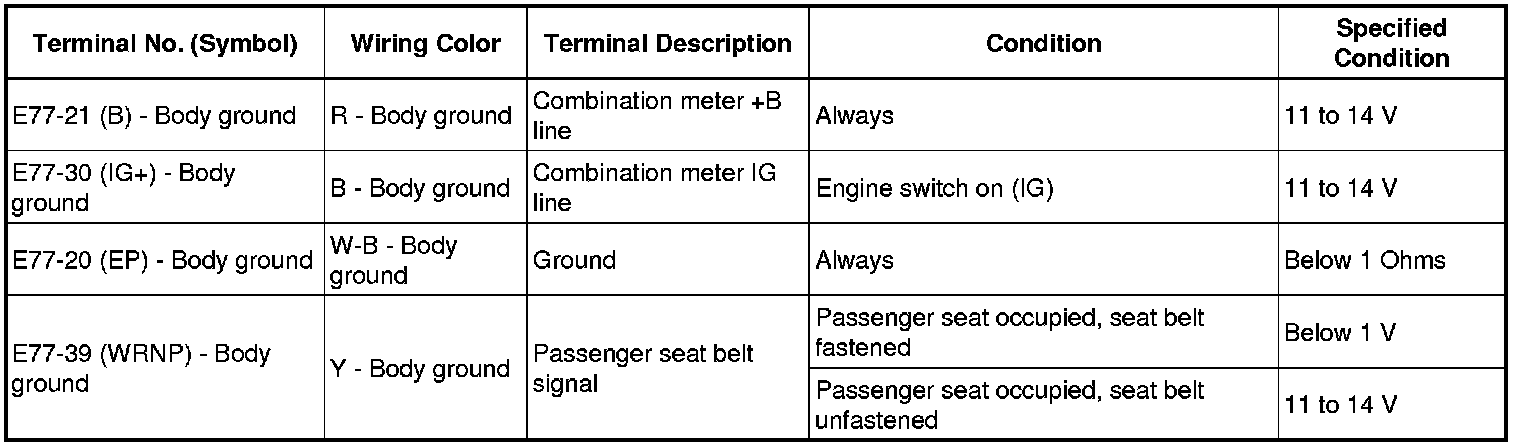

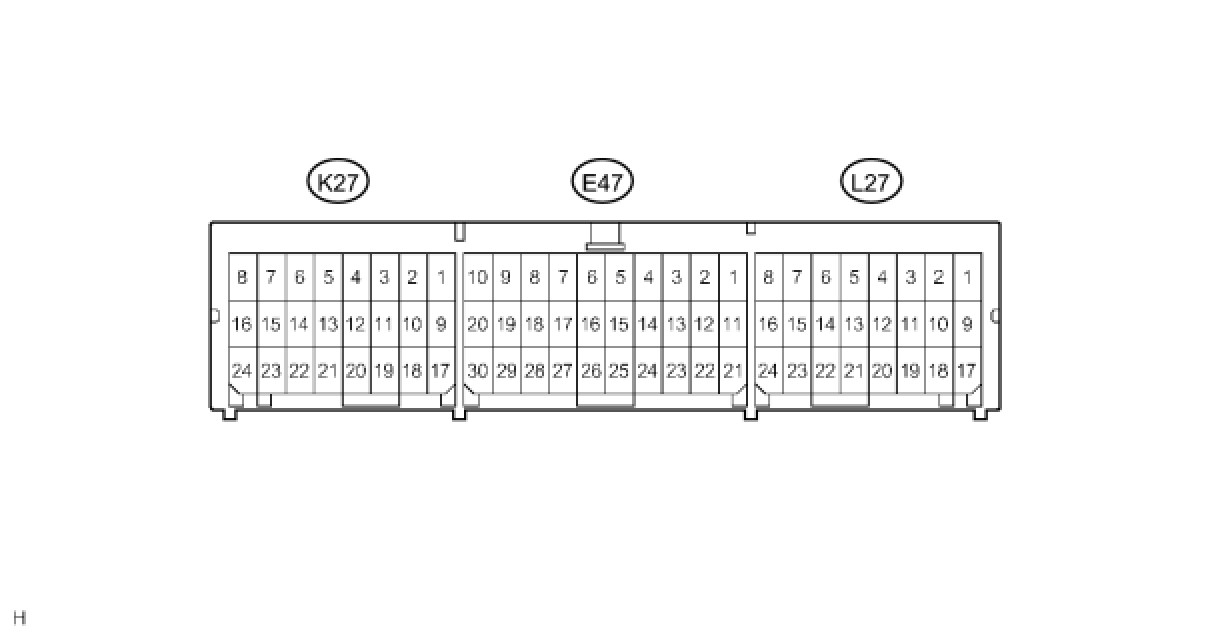

1. CHECK COMBINATION METER

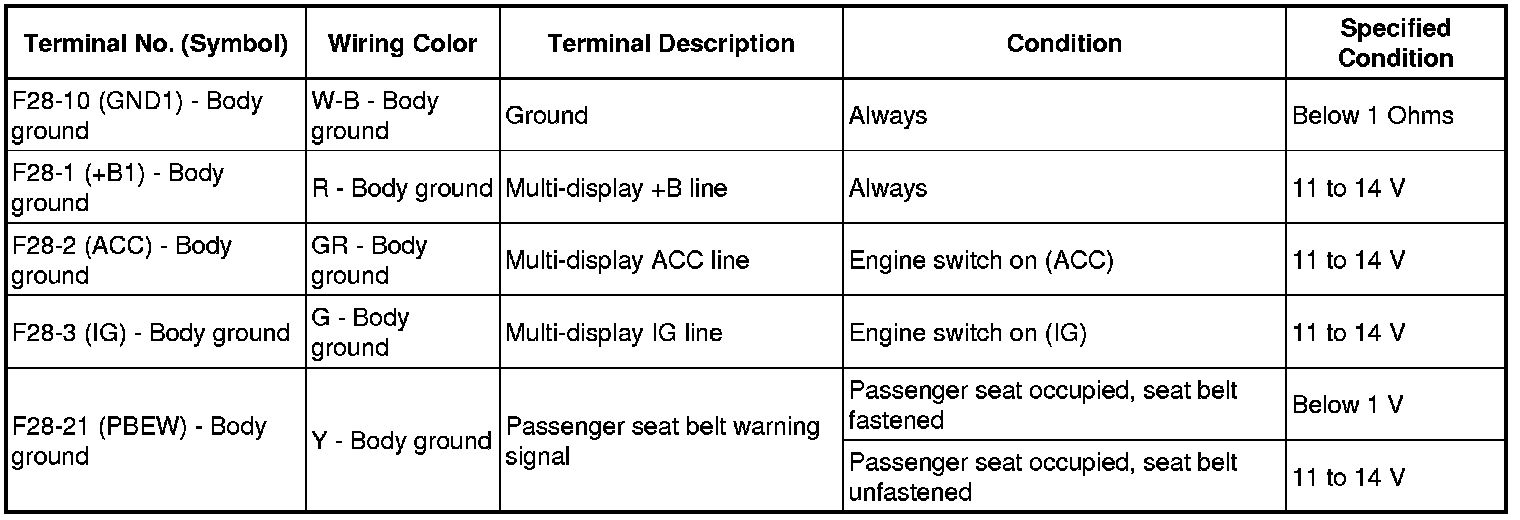

2. CHECK DISPLAY AND NAVIGATION MODULE DISPLAY*1 (MULTI-DISPLAY*2)

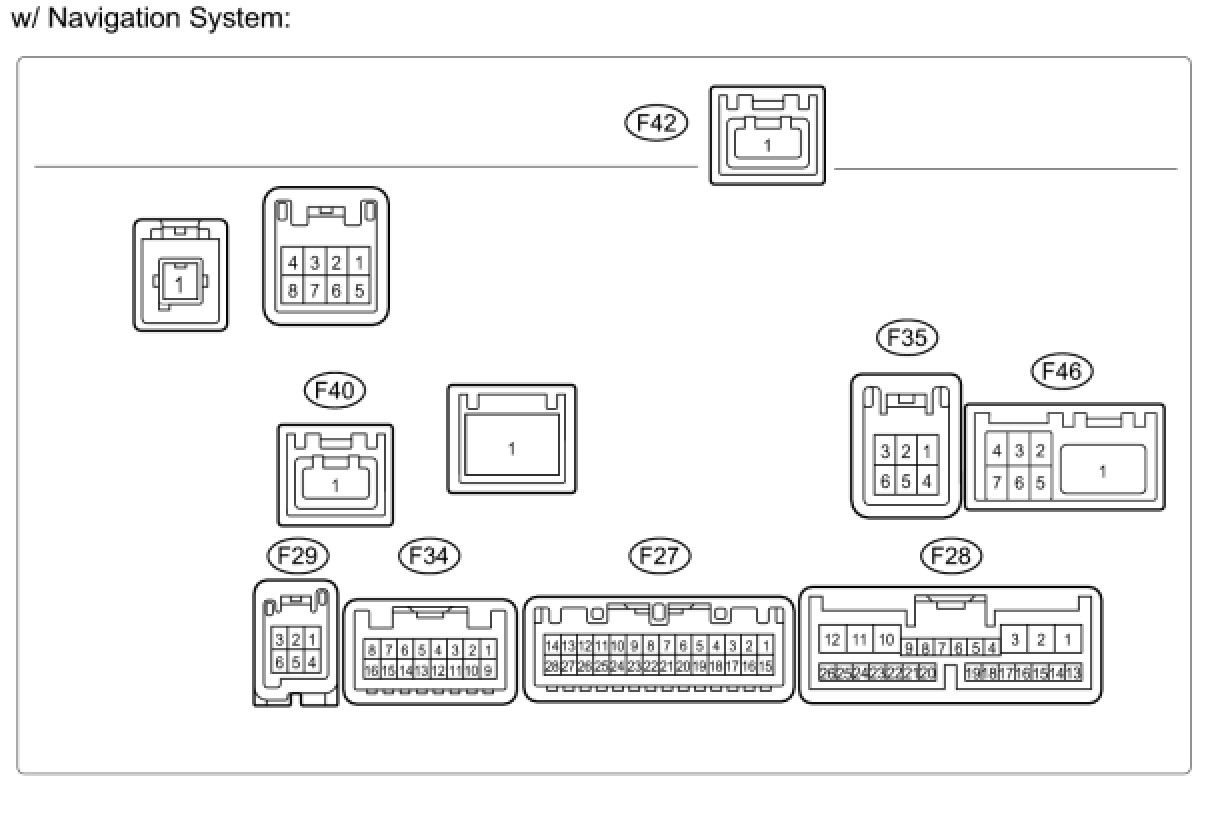

*1: w/ Navigation System

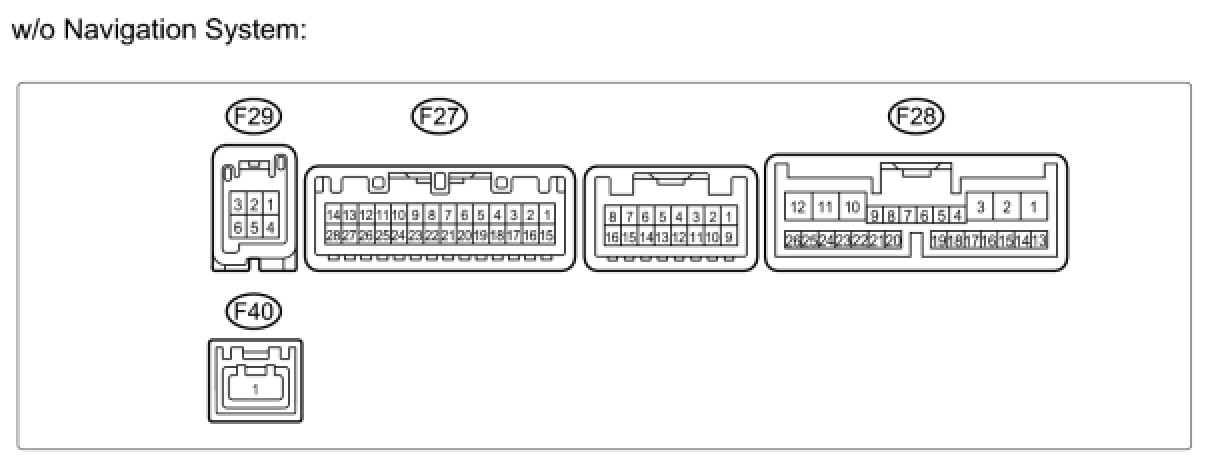

*2: w/o Navigation System

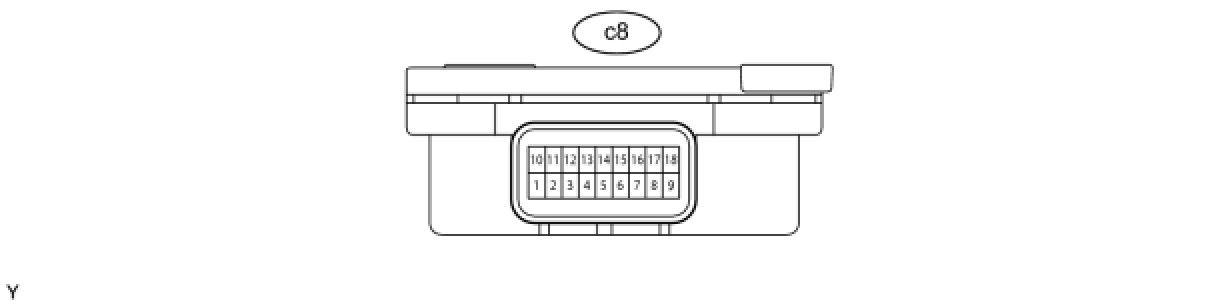

3. CHECK CENTER AIRBAG SENSOR

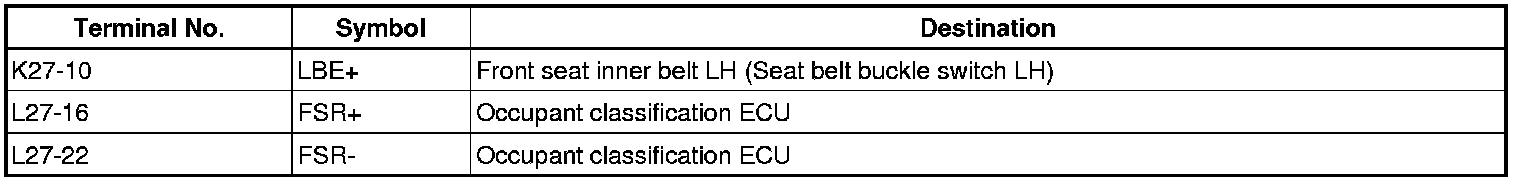

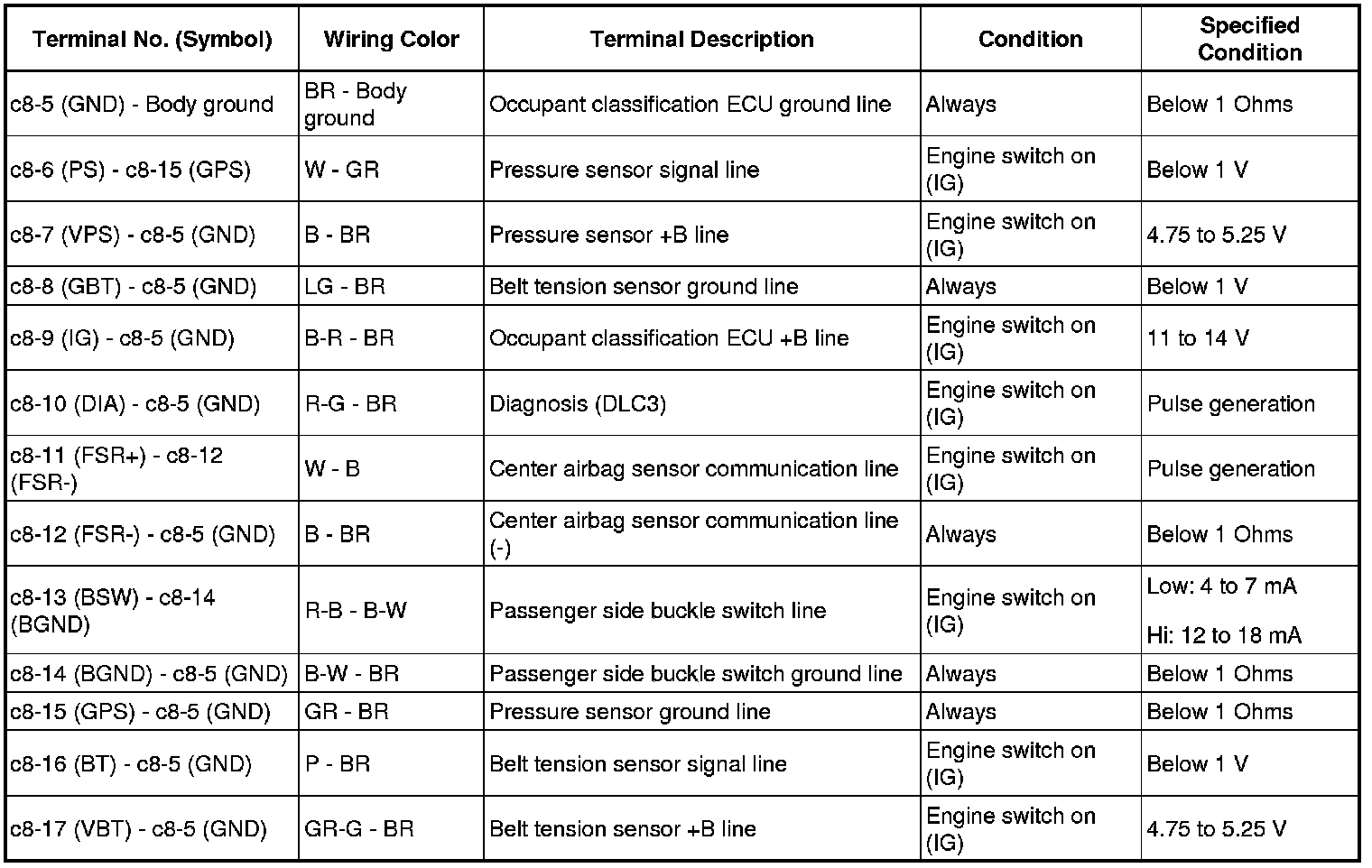

4. CHECK OCCUPANT CLASSIFICATION ECU
