Rear No. 2 Seat Outer Belt Assembly

SEAT BELT: REAR NO. 2 SEAT OUTER BELT ASSEMBLY: INSPECTION





1. INSPECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY
NOTICE:
Do not disassemble the retractor.

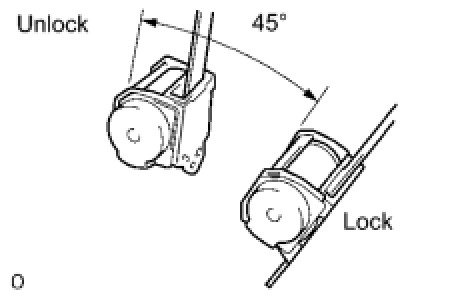

(a) When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the operation is not as specified, replace the belt.
