Rear Center Seat Outer Belt Assembly (for Rear No. 1 Seat)

SEAT BELT: REAR CENTER SEAT OUTER BELT ASSEMBLY (for Rear No. 1 Seat): INSPECTION

1. INSPECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH






(a) Check the ELR.

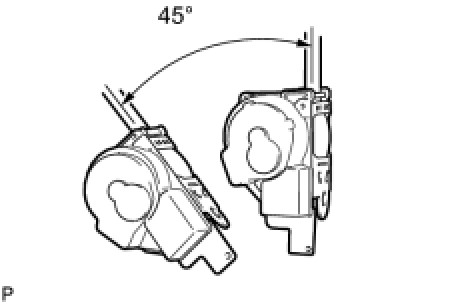

(1) When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the operation is not as specified, replace the seat belt assembly.
