Removal

SEAT BELT: REAR NO. 2 SEAT OUTER BELT ASSEMBLY: REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR NO. 2 SEAT ASSEMBLY
(a) w/ Automatic Folding-up Function:
Remove the rear No. 2 seat assembly Removal.
(b) w/ Manual Folding-up Function:
Remove the rear No. 2 seat assembly Removal.
2. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE Removal

3. REMOVE REAR STEP COVER Removal

4. REMOVE REAR DOOR SCUFF PLATE Removal

5. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal

6. REMOVE REAR SEAT COVER CAP (w/ Manual Folding-up Function) Removal

7. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY

HINT:
When removing the front quarter trim panel, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.

(a) Detach the 3 claws and remove the cover.

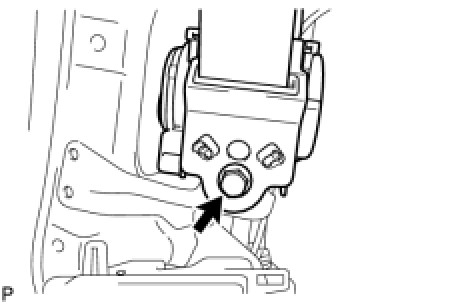

(b) Remove the bolt and disconnect the rear seat outer belt floor anchor.

(1) Detach the 3 claws and remove the cover.

(2) Remove the bolt and disconnect the rear seat outer belt floor anchor RH.
(e) w/ Manual Folding-up Function:
(1) Remove the screw, clip and bolt.
(2) Detach the 19 clips and 2 claws.

(3) Disconnect the thermistor connector, power outlet socket connector and rear seat lock control lever cable, and then remove the quarter trim panel.
(f) w/ Automatic Folding-up Function:
(1) Remove the screw and clip.
(2) Detach the 19 clips and 2 claws.

(3) Disconnect the thermistor connector and power outlet socket connector, and then remove the quarter trim panel.
8. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY
(a) Remove the bolt and disconnect the seat belt shoulder anchor.

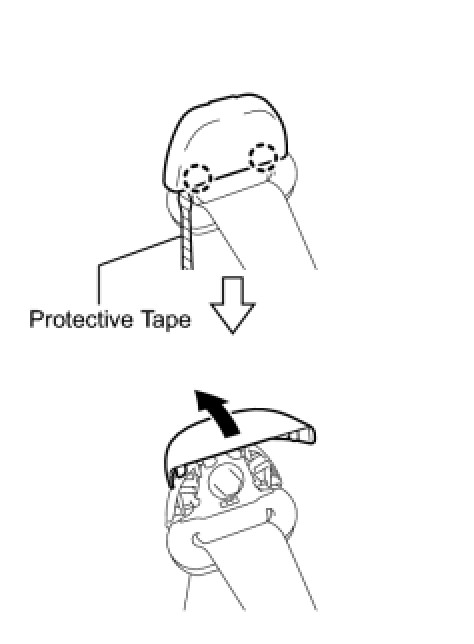

(1) Using a screwdriver, detach the 2 claws and open the seat belt anchor cover as shown in the illustration.
HINT:
Tape the screwdriver tip before use.

(2) Remove the bolt and seat belt shoulder anchor.

(b) Remove the bolt and rear No. 2 seat outer belt.
