Removal

SEAT BELT: REAR NO. 2 SEAT INNER BELT ASSEMBLY: REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR NO. 2 SEAT ASSEMBLY LH
(a) w/ Automatic Folding-up Function:
Remove the rear No. 2 seat assembly LH Removal.
(b) w/ Manual Folding-up Function:
Remove the rear No. 2 seat assembly LH Removal.
2. REMOVE NO. 2 SEAT CUSHION COVER Disassembly

3. REMOVE FOLD SEAT CONTROL ECU
(a) w/ Automatic Folding-up Function:
Remove the fold seat control ECU Disassembly.
(b) w/ Manual Folding-up Function:
Remove the fold seat control ECU Disassembly.
4. REMOVE REAR NO. 2 SEAT LEG BRACKET REAR LH Disassembly

5. REMOVE SEAT ADJUSTER BOLT COVER Disassembly

6. REMOVE NO. 2 RECLINING ADJUSTER RELEASE HANDLE LH Disassembly

7. REMOVE RECLINING ADJUSTER COVER LH Disassembly

8. REMOVE RECLINING ADJUSTER COVER RH Disassembly

9. REMOVE REAR SEAT RECLINING COVER INNER LH Disassembly

10. REMOVE REAR SEAT REAR BRACKET COVER REAR Disassembly

11. REMOVE REAR NO. 3 SEAT LEG COVER LH Disassembly

12. REMOVE NO. 2 SEAT LEG COVER NO. 2 Disassembly

13. REMOVE 3RD SEAT LINK SUB-ASSEMBLY LH Disassembly

14. REMOVE REAR SEAT CUSHION UNDER COVER LH Disassembly

15. REMOVE NO. 3 SEAT FRONT BRACKET COVER LH Disassembly

16. REMOVE NO. 3 SEAT LEG COVER NO. 2 Disassembly

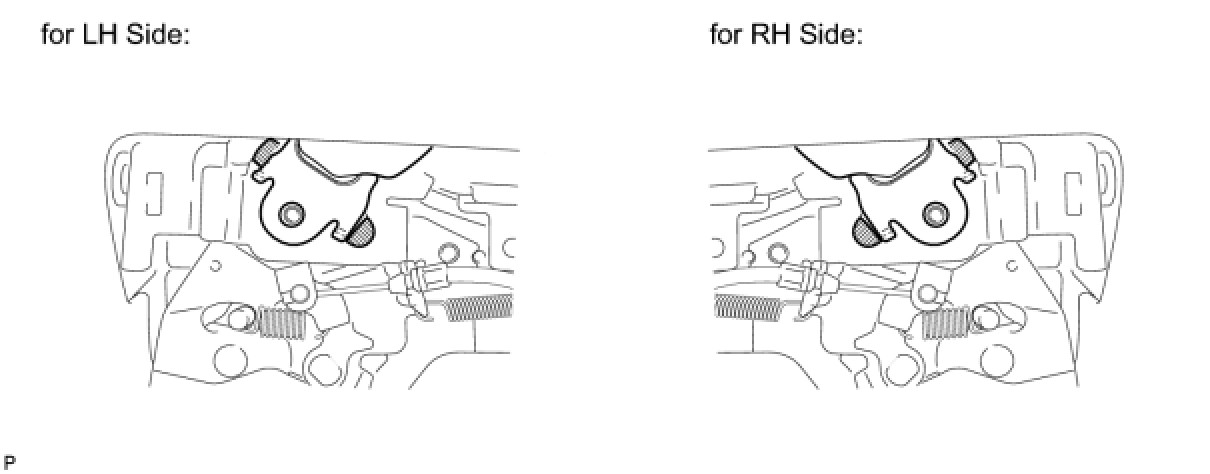

17. REMOVE REAR SEAT INNER BELT SUB-ASSEMBLY (for LH Side)

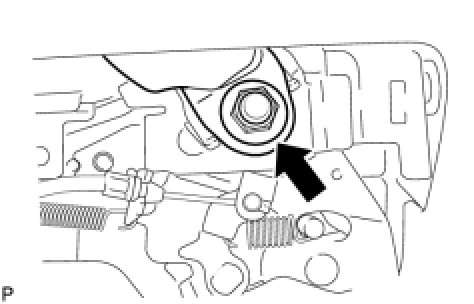

(a) Remove the nut and belt.
HINT:
The rear No. 2 seat inner belt is fixed with the same nut as the rear seat inner belt. Therefore, it becomes disconnected when the nut is removed.





18. REMOVE REAR SEAT OUTER BELT SUB-ASSEMBLY (for RH Side)
(a) Remove the nut and belt.
HINT:
The rear No. 2 seat inner belt is fixed with the same nut as the rear seat outer belt. Therefore, it becomes disconnected when the nut is removed.

19. REMOVE REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY
(a) Remove the 2 belts.
