Removal

SEAT BELT: REAR NO. 1 SEAT OUTER BELT ASSEMBLY: REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE REAR NO. 2 SEAT ASSEMBLY
(a) w/ Automatic Folding-up Function:
Remove the rear No. 2 seat assembly Removal.
(b) w/ Manual Folding-up Function:
Remove the rear No. 2 seat assembly Removal.
3. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE Removal

4. REMOVE REAR STEP COVER Removal

5. REMOVE REAR DOOR SCUFF PLATE Removal

6. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal

7. REMOVE REAR SEAT COVER CAP (w/ Manual Folding-up Function) Removal

8. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY

HINT:
When removing the front quarter trim panel, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.

(a) Detach the 3 claws and remove the cover.

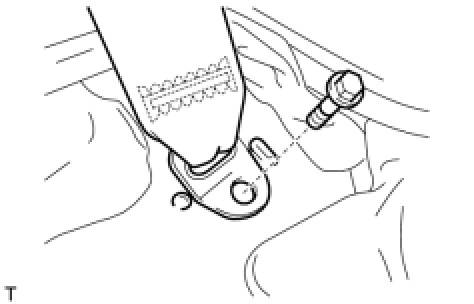

(b) Remove the bolt and disconnect the rear seat outer belt floor anchor.

(d) for RH side:
(1) Detach the 3 claws and remove the cover.

(2) Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor RH.
(e) w/ Manual Folding-up Function:
(1) Remove the screw, clip and bolt.
(2) Detach the 19 clips and 2 claws.

(3) Disconnect the thermistor connector, power outlet socket connector and rear seat lock control lever cable, and then remove the quarter trim panel.
(f) w/ Automatic Folding-up Function:
(1) Remove the screw and clip.
(2) Detach the 19 clips and 2 claws.

(3) Disconnect the thermistor connector and power outlet socket connector, and then remove the quarter trim panel.
9. REMOVE REAR FRONT QUARTER TRIM GARNISH Removal

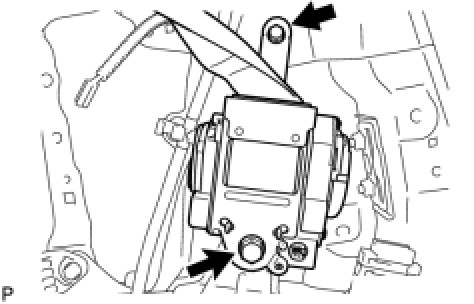

10. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY

(a) Remove the nut and seat belt shoulder anchor.

(b) Disconnect the pretensioner connector as shown in the illustration

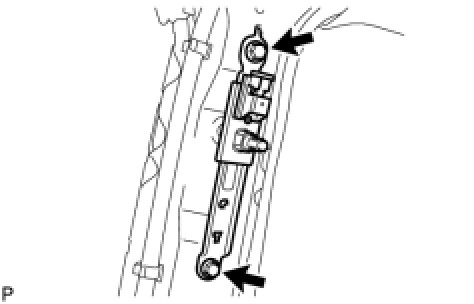

11. REMOVE REAR SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY
(a) Remove the 2 bolts and anchor plate.
