Installation

SEAT BELT: REAR NO. 1 SEAT INNER BELT ASSEMBLY (for RH Side): INSTALLATION





1. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY RH
(a) Install the belt with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
NOTICE:

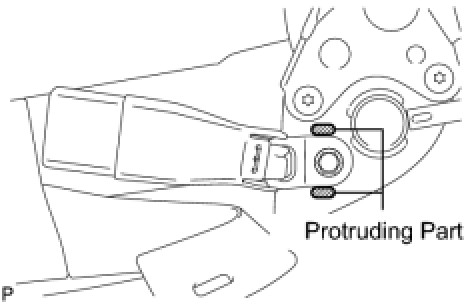

Do not overlap the anchor part of the seat belt and protruding parts of the seat.

2. INSTALL REAR NO. 1 SEAT RECLINING COVER LH Reassembly

3. INSTALL REAR NO. 1 SEAT ASSEMBLY RH
(a) Install the rear No. 1 seat assembly Installation.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
