Removal

SEAT BELT: REAR NO. 1 SEAT INNER BELT ASSEMBLY (for LH Side): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
(a) Remove the rear No. 1 seat assembly Removal.
3. REMOVE SEAT ADJUSTER BOLT COVER Disassembly

4. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH Disassembly

5. REMOVE REAR NO. 1 SEAT RECLINING COVER LH Disassembly

6. REMOVE REAR NO. 1 SEAT RECLINING COVER RH Disassembly

7. REMOVE UPPER SEAT TRACK RAIL COVER LH Disassembly

8. REMOVE UPPER SEAT TRACK RAIL COVER RH Disassembly

9. REMOVE REAR NO. 2 SEAT LEG SIDE COVER Disassembly

10. REMOVE REAR NO. 2 SEAT PROTECTOR Disassembly

11. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY LH Disassembly

12. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY RH Disassembly

13. REMOVE SEAT BELT ANCHOR COVER CAP Disassembly

14. REMOVE REAR SEATBACK STAY COVER LH Disassembly

15. REMOVE REAR UNDER SIDE COVER LH Disassembly

16. REMOVE REAR SEAT CUSHION COVER RH Disassembly

17. REMOVE REAR SEAT UNDER TRAY COVER LH Disassembly







18. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY LH

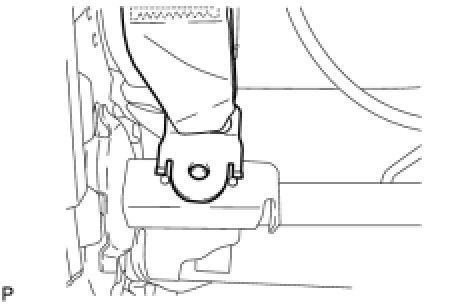

(a) Remove the bolt and belt.
HINT:
The No. 1 seat 3 point type belt anchor is fixed with the same bolt as the rear No. 1 seat inner belt LH. Therefore, it becomes disconnected when the bolt is removed.





19. DISCONNECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

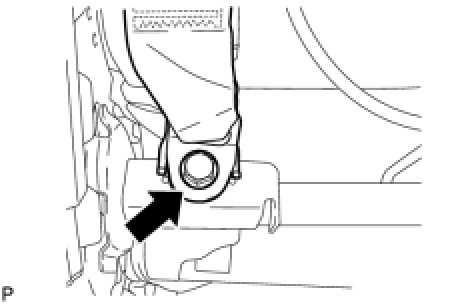

(a) Disconnect the belt anchor.
