Installation

SEAT BELT: REAR NO. 1 SEAT INNER BELT ASSEMBLY (for LH Side): INSTALLATION





1. CONNECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

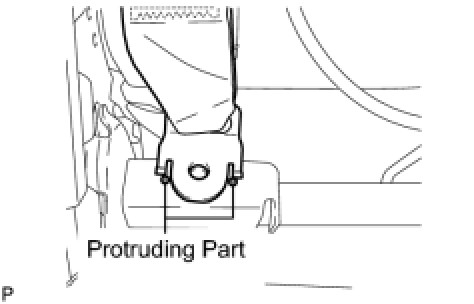

(a) Connect the belt anchor.
NOTICE:
Do not overlap the anchor part of the seat belt and protruding parts of the vehicle body.





2. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY LH

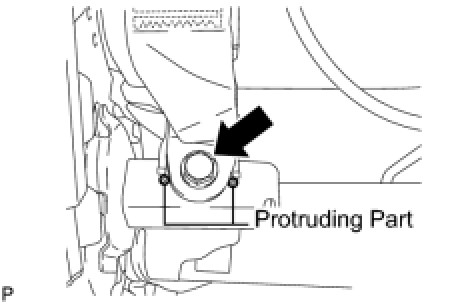

(a) Install the belt with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
NOTICE:
Do not overlap the anchor part of the seat belt and protruding parts of the vehicle body.
HINT:
The No. 1 seat 3 point type belt anchor is fixed with the same bolt as the rear No. 1 seat inner belt LH. Therefore, connect it when installing the rear No. 1 seat inner belt LH.

3. INSTALL REAR SEAT UNDER TRAY COVER LH Reassembly

4. INSTALL REAR SEAT CUSHION COVER RH Reassembly

5. INSTALL REAR UNDER SIDE COVER LH Reassembly

6. INSTALL REAR SEATBACK STAY COVER LH Reassembly

7. INSTALL SEAT BELT ANCHOR COVER CAP Reassembly

8. INSTALL REAR NO. 1 SEAT HINGE SUB-ASSEMBLY RH Reassembly

9. INSTALL REAR NO. 1 SEAT HINGE SUB-ASSEMBLY LH Reassembly

10. INSTALL REAR NO. 2 SEAT PROTECTOR Reassembly

11. INSTALL REAR NO. 2 SEAT LEG SIDE COVER Reassembly

12. INSTALL UPPER SEAT TRACK RAIL COVER RH Reassembly

13. INSTALL UPPER SEAT TRACK RAIL COVER LH Reassembly

14. INSTALL REAR NO. 1 SEAT RECLINING COVER RH Reassembly

15. INSTALL REAR NO. 1 SEAT RECLINING COVER LH Reassembly

16. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH Reassembly

17. INSTALL SEAT ADJUSTER BOLT COVER Reassembly

18. INSTALL REAR NO. 1 SEAT ASSEMBLY LH
(a) Install the rear No. 1 seat assembly Installation.
19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
