Installation

SEAT BELT: REAR CENTER SEAT OUTER BELT ASSEMBLY (for Rear No. 2 Seat): INSTALLATION

1. INSTALL REAR NO. 2 SEAT BELT ASSEMBLY 3 POINT TYPE

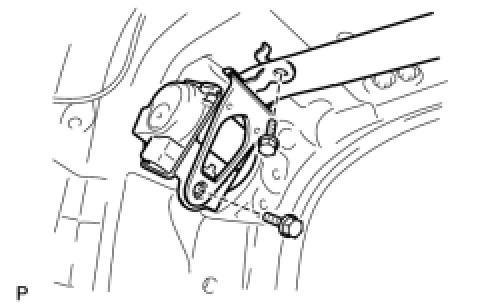

(a) Install the belt with the 2 bolts.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)

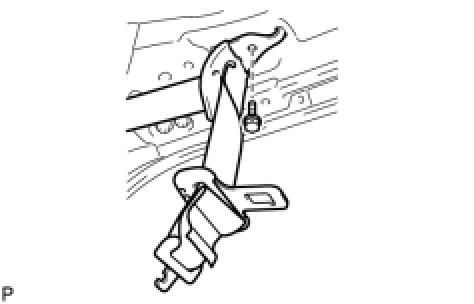

(b) Install the through anchor with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
2. INSTALL ROOF HEADLINING
(a) Install the roof headlining Installation.






3. INSTALL SEAT BELT ANCHOR COVER

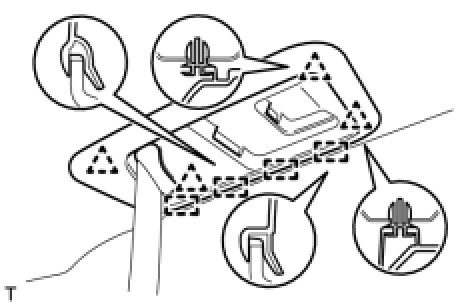

(a) Attach the 4 guides and 4 clips to install the seat belt anchor cover.
