Removal

SEAT BELT: REAR CENTER SEAT OUTER BELT ASSEMBLY (for Rear No. 1 Seat): REMOVAL

1. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
(a) Remove the rear No. 1 seat assembly Removal.
2. REMOVE SEAT ADJUSTER BOLT COVER Disassembly

3. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH Disassembly

4. REMOVE REAR NO. 1 SEAT RECLINING COVER LH Disassembly

5. REMOVE REAR NO. 1 SEAT RECLINING COVER RH Disassembly

6. REMOVE UPPER SEAT TRACK RAIL COVER LH Disassembly

7. REMOVE UPPER SEAT TRACK RAIL COVER RH Disassembly

8. REMOVE REAR NO. 2 SEAT LEG SIDE COVER Disassembly

9. REMOVE REAR NO. 2 SEAT PROTECTOR Disassembly

10. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY LH Disassembly

11. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY RH Disassembly

12. REMOVE SEAT BELT ANCHOR COVER CAP Disassembly

13. REMOVE REAR SEATBACK STAY COVER LH Disassembly

14. REMOVE REAR UNDER SIDE COVER LH Disassembly

15. REMOVE REAR SEAT CUSHION COVER RH Disassembly

16. REMOVE REAR SEAT UNDER TRAY COVER LH Disassembly

17. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY LH Removal

18. REMOVE SEAT CUSHION COVER WITH PAD Disassembly

19. REMOVE REAR SEATBACK COVER Disassembly

20. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH Disassembly

21. REMOVE REAR SEAT HEADREST ASSEMBLY
22. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY Disassembly

23. REMOVE SHOULDER BELT ANCHOR COVER Disassembly

24. REMOVE REAR SEAT BELT HOLE COVER LH Disassembly

25. REMOVE SEATBACK COVER WITH PAD Disassembly

26. REMOVE REAR SEATBACK HINGE COVER LH Disassembly

27. REMOVE REAR LOWER SEATBACK COVER SUB-ASSEMBLY LH Disassembly







28. REMOVE REAR SEAT SHOULDER BELT HOLE COVER
(a) Using a screwdriver, detach the 3 claws and remove the shoulder belt hole cover.

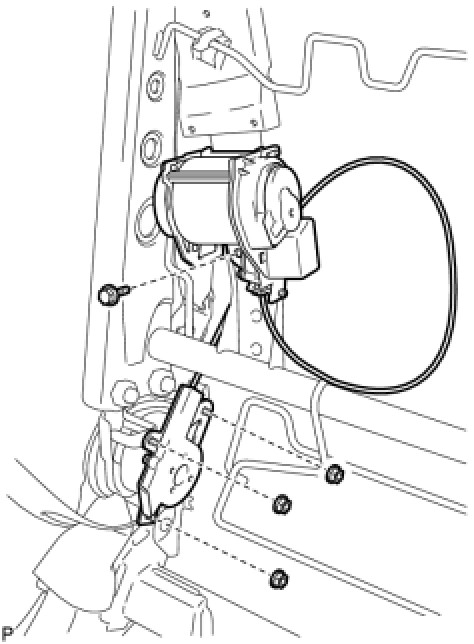

29. REMOVE NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH
(a) Remove the 3 nuts and belt sensor.
(b) Remove the nut and outer belt.
