Installation

SEAT BELT: REAR CENTER SEAT OUTER BELT ASSEMBLY (for Rear No. 1 Seat): INSTALLATION





1. INSTALL NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH

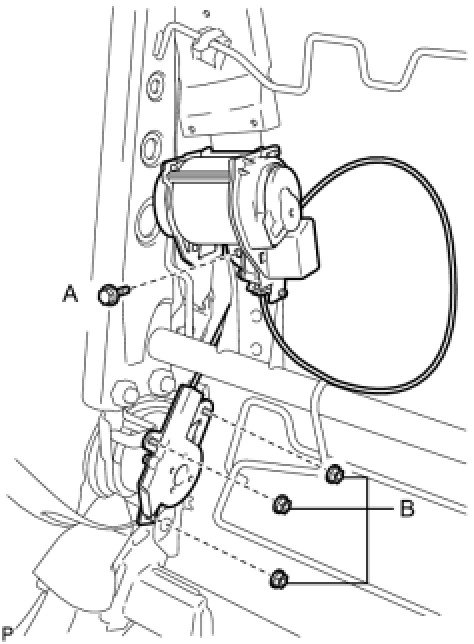

(a) Install the belt with the nut labeled A.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
(b) Install the belt sensor with the 3 nuts labeled B.
2. INSTALL REAR SEAT SHOULDER BELT HOLE COVER

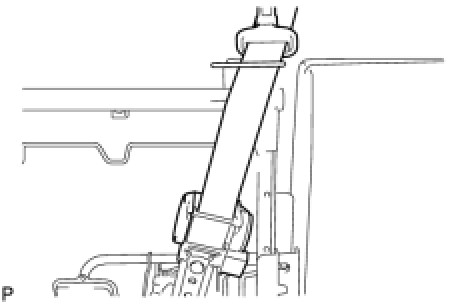

(a) Install the seat belt as shown in the illustration.

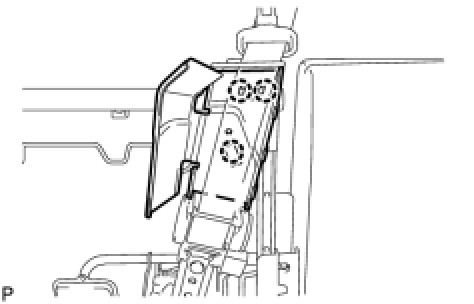

(b) Attach the 3 claws to install the shoulder belt hole cover.
3. INSTALL REAR LOWER SEATBACK COVER SUB-ASSEMBLY LH Reassembly

4. INSTALL REAR SEATBACK HINGE COVER LH Reassembly

5. INSTALL SEATBACK COVER WITH PAD Reassembly

6. INSTALL REAR SEAT BELT HOLE COVER LH Reassembly

7. INSTALL SHOULDER BELT ANCHOR COVER Reassembly

8. INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY Reassembly

9. INSTALL REAR SEAT HEADREST ASSEMBLY
10. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH Reassembly

11. INSTALL REAR SEATBACK COVER Reassembly

12. INSTALL SEAT CUSHION COVER WITH PAD Reassembly

13. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY LH Installation

14. INSTALL REAR SEAT UNDER TRAY COVER LH Reassembly

15. INSTALL REAR SEAT CUSHION COVER RH Reassembly

16. INSTALL REAR UNDER SIDE COVER LH Reassembly

17. INSTALL REAR SEATBACK STAY COVER LH Reassembly

18. INSTALL SEAT BELT ANCHOR COVER CAP Reassembly

19. INSTALL REAR NO. 1 SEAT HINGE SUB-ASSEMBLY RH Reassembly

20. INSTALL REAR NO. 1 SEAT HINGE SUB-ASSEMBLY LH Reassembly

21. INSTALL REAR NO. 2 SEAT PROTECTOR Reassembly

22. INSTALL REAR NO. 2 SEAT LEG SIDE COVER Reassembly

23. INSTALL UPPER SEAT TRACK RAIL COVER RH Reassembly

24. INSTALL UPPER SEAT TRACK RAIL COVER LH Reassembly

25. INSTALL REAR NO. 1 SEAT RECLINING COVER RH Reassembly

26. INSTALL REAR NO. 1 SEAT RECLINING COVER LH Reassembly

27. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH Reassembly

28. INSTALL SEAT ADJUSTER BOLT COVER Reassembly

29. INSTALL REAR NO. 1 SEAT ASSEMBLY LH
(a) Install the rear No. 1 seat assembly Installation.
