Installation

SEAT BELT: REAR CENTER SEAT INNER BELT ASSEMBLY (for Rear No. 2 Seat): INSTALLATION

1. INSTALL REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY






(a) Install the belt.

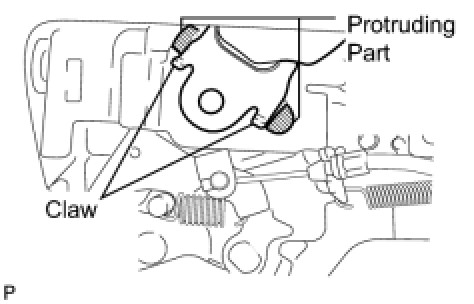

NOTICE:

- Make sure the claws are facing away from the seat.
- Do not overlap the anchor part of the seat belt and protruding parts of the seat.






2. INSTALL REAR SEAT INNER BELT SUB-ASSEMBLY (for LH Side)
(a) Install the belt with the nut.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
NOTICE:
Do not overlap the anchor part of the seat belt and protruding parts of the seat.
HINT:
The rear No. 2 seat inner belt is fixed with the same nut as the rear seat inner belt. Therefore, connect it when installing the rear seat inner belt.

3. INSTALL NO. 3 SEAT LEG COVER NO. 2 Reassembly

4. INSTALL NO. 3 SEAT FRONT BRACKET COVER LH Reassembly

5. INSTALL REAR SEAT CUSHION UNDER COVER LH Reassembly

6. INSTALL 3RD SEAT LINK SUB-ASSEMBLY LH Reassembly

7. INSTALL NO. 2 SEAT LEG COVER NO. 2 Reassembly

8. INSTALL REAR NO. 3 SEAT LEG COVER LH Reassembly

9. INSTALL REAR SEAT REAR BRACKET COVER REAR Reassembly

10. INSTALL RECLINING ADJUSTER COVER RH Reassembly

11. INSTALL RECLINING ADJUSTER COVER LH Reassembly

12. INSTALL NO. 2 RECLINING ADJUSTER RELEASE HANDLE LH Reassembly

13. INSTALL SEAT ADJUSTER BOLT COVER Reassembly

14. INSTALL REAR NO. 2 SEAT LEG BRACKET REAR LH Reassembly

15. INSTALL FOLD SEAT CONTROL ECU
(a) w/ Automatic Folding-up Function:
Install the control ECU Reassembly.
(b) w/ Manual Folding-up Function:
Install the control ECU Reassembly.
16. INSTALL NO. 2 SEAT CUSHION COVER Reassembly

17. INSTALL REAR NO. 2 SEAT ASSEMBLY LH
(a) w/ Automatic Folding-up Function:
Install the rear No. 2 seat assembly Installation.
(b) w/ Manual Folding-up Function:
Install the rear No. 2 seat assembly Installation.
