Installation

SEAT BELT: REAR CENTER SEAT INNER BELT ASSEMBLY (for Rear No. 1 Seat): INSTALLATION





1. INSTALL REAR SEAT INNER BELT ASSEMBLY
(a) Install the seat belt with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)

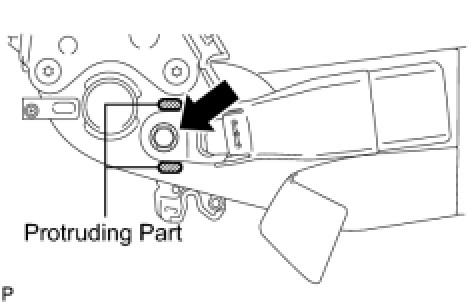

NOTICE:
The anchor part of the seat belt must not overlap the protruding part.

2. INSTALL REAR NO. 1 SEAT RECLINING COVER RH Reassembly

3. INSTALL REAR NO. 1 SEAT ASSEMBLY LH
(a) Install the rear No. 1 seat assembly Installation.
