Removal

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE FRONT SEAT ASSEMBLY
(a) Remove the front seat assembly Removal.

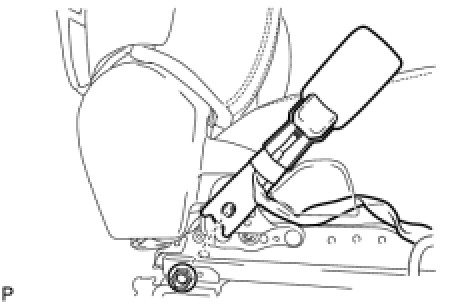

3. REMOVE FRONT SEAT INNER BELT ASSEMBLY
(a) Disconnect the 3 connectors and detach the clamps






(b) Remove the nut and front seat inner belt assembly.
