Electrical Diagrams

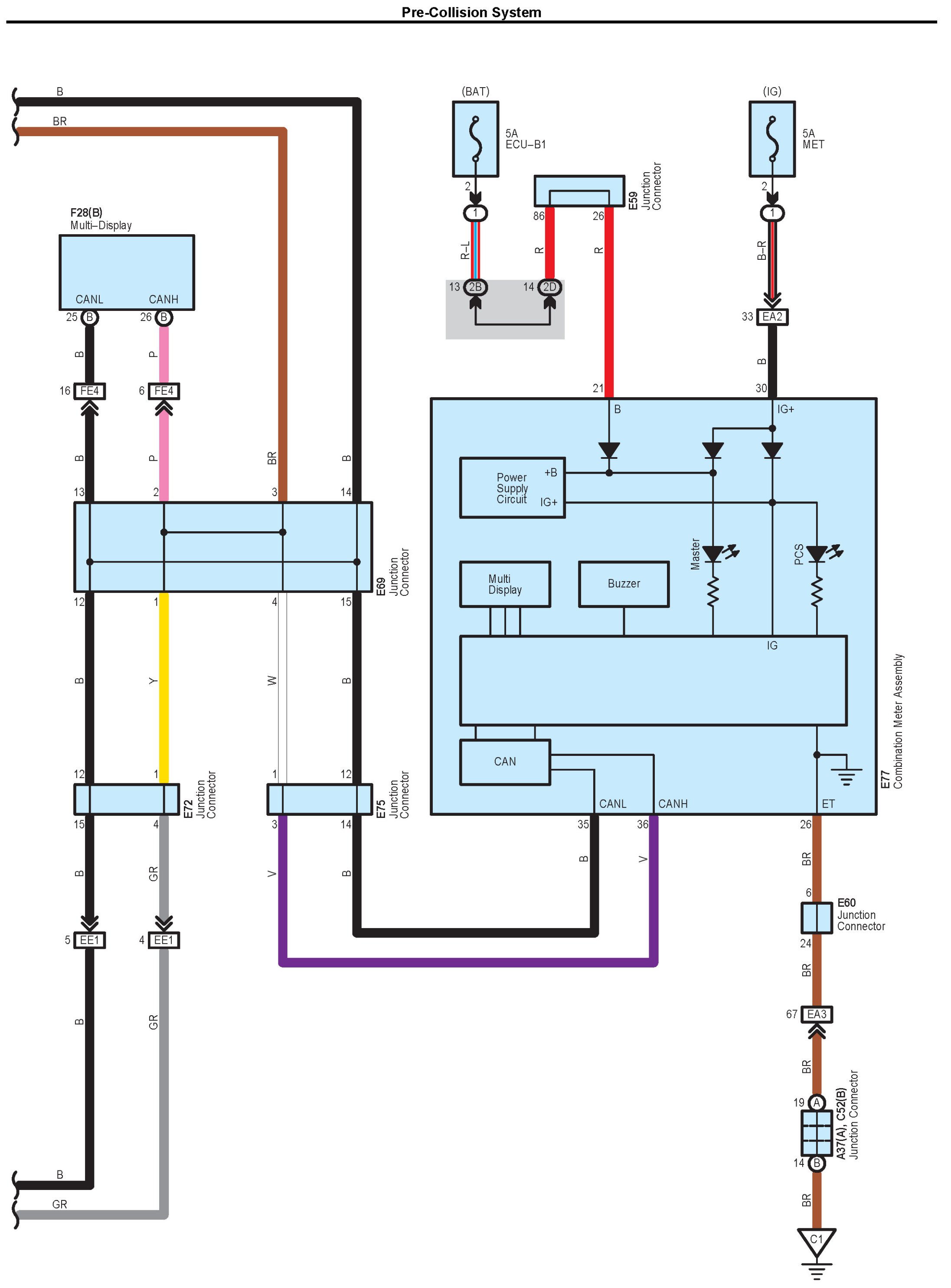

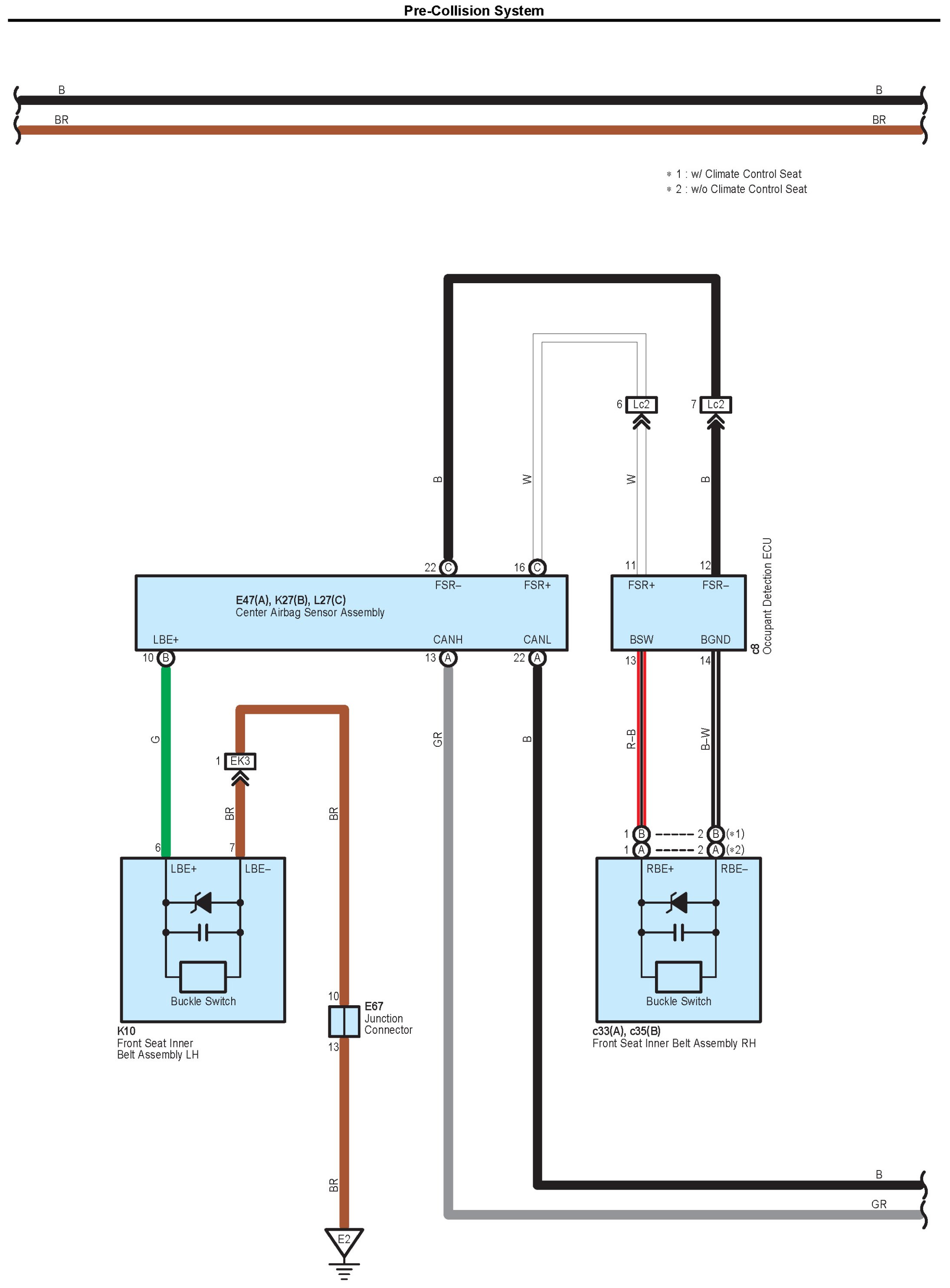

Pre-Collision System Part 1:

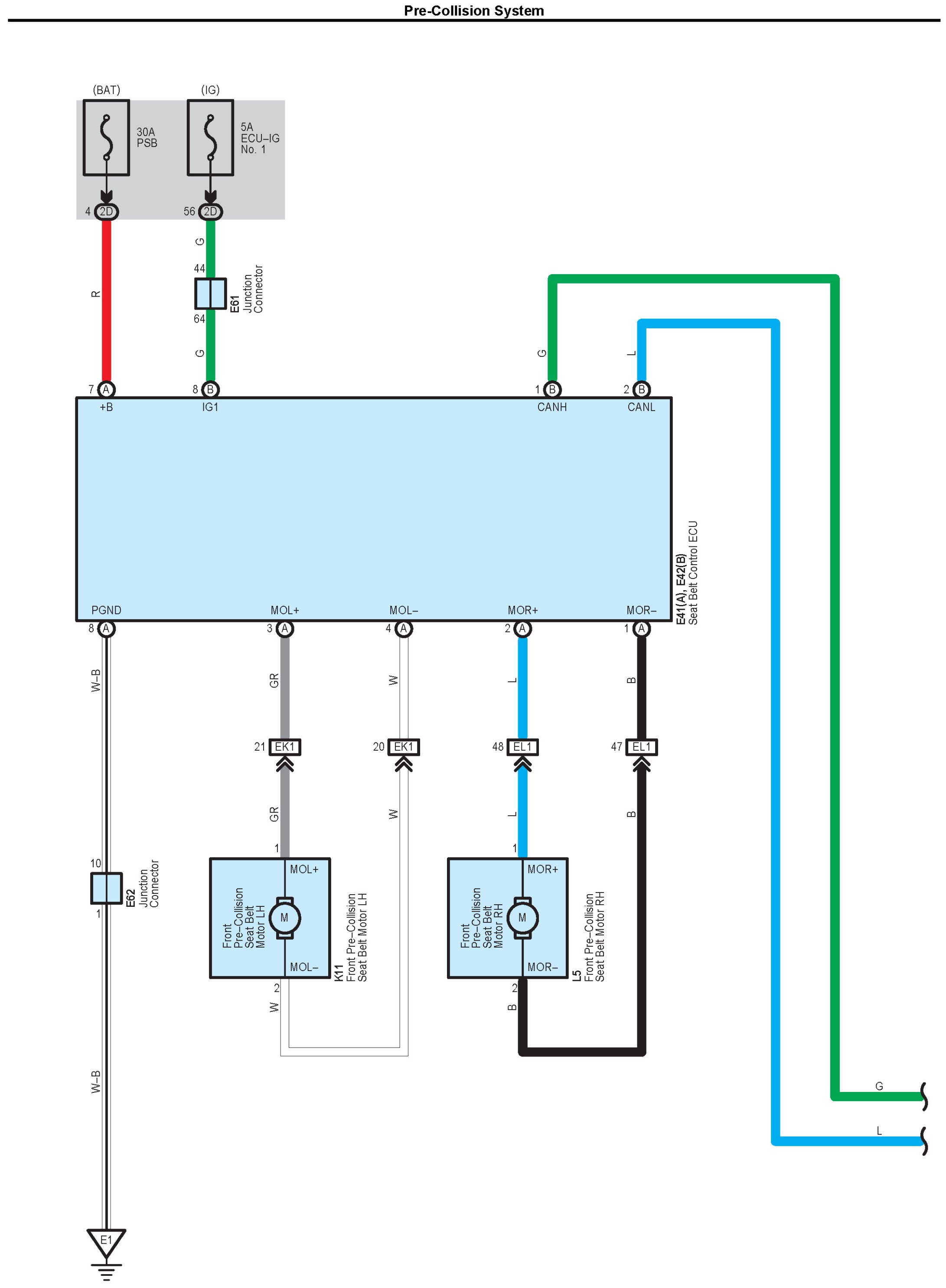

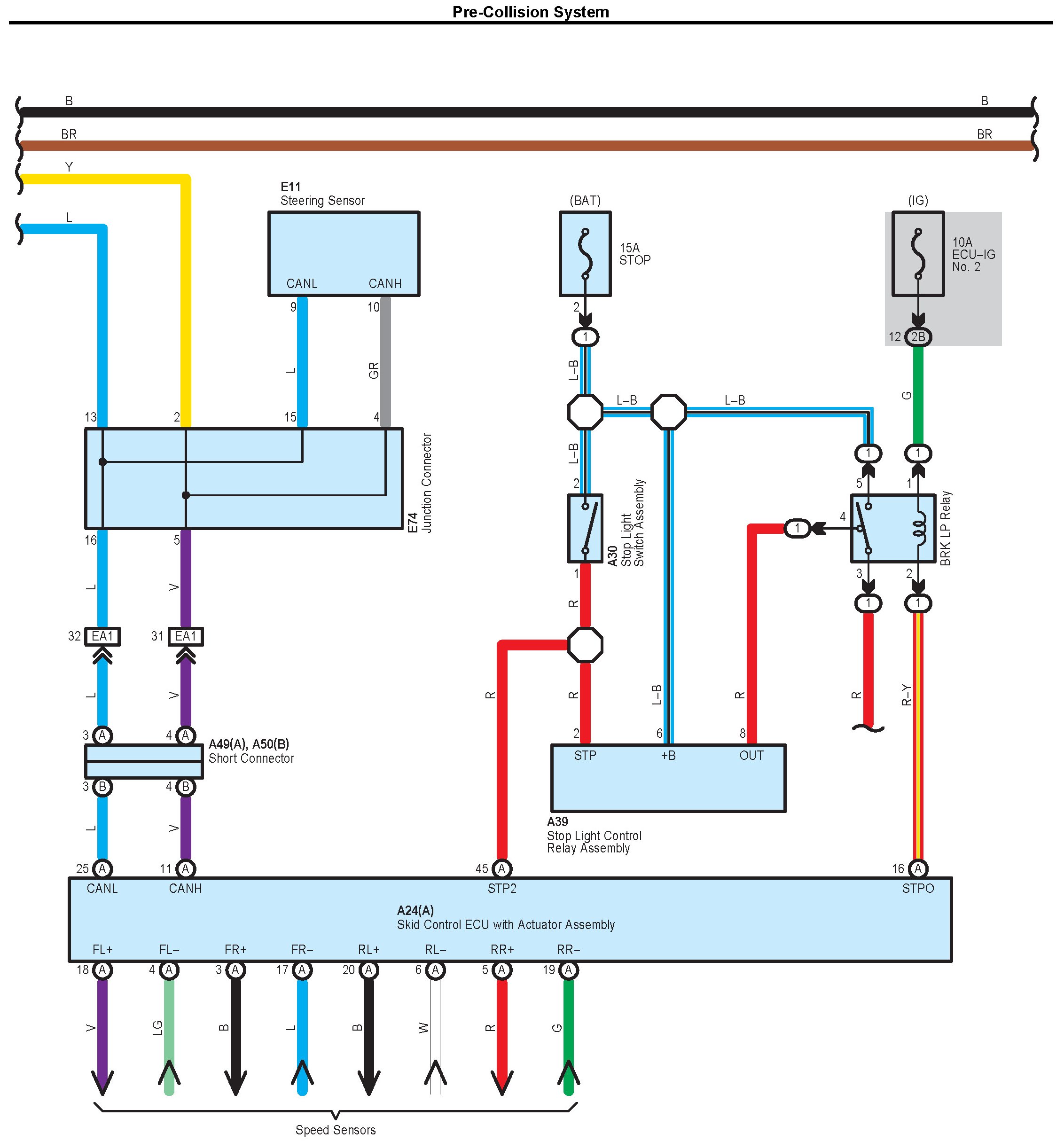

Pre-Collision System Part 2:

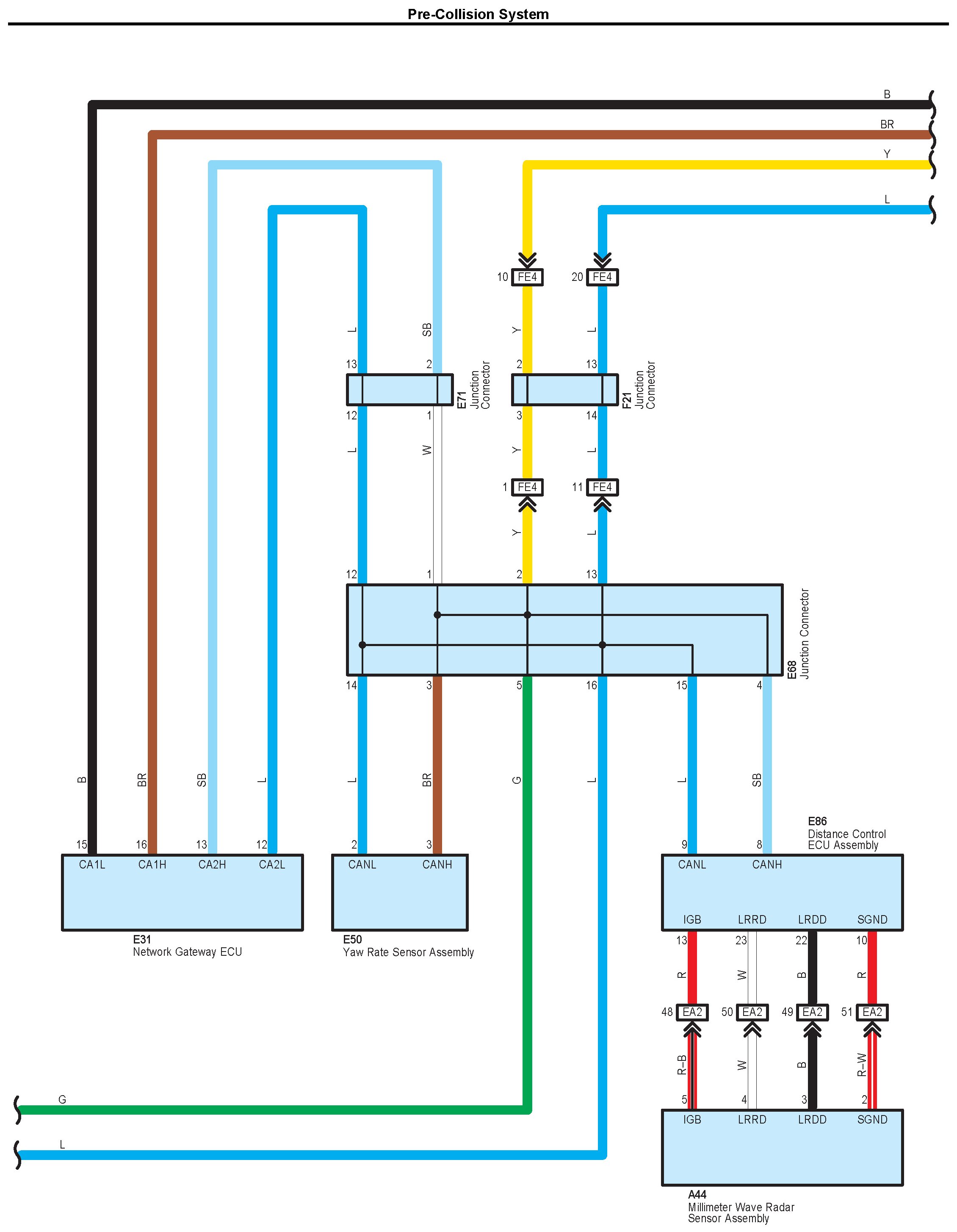

Pre-Collision System Part 3:

Pre-Collision System Part 4:

Pre-Collision System Part 5:

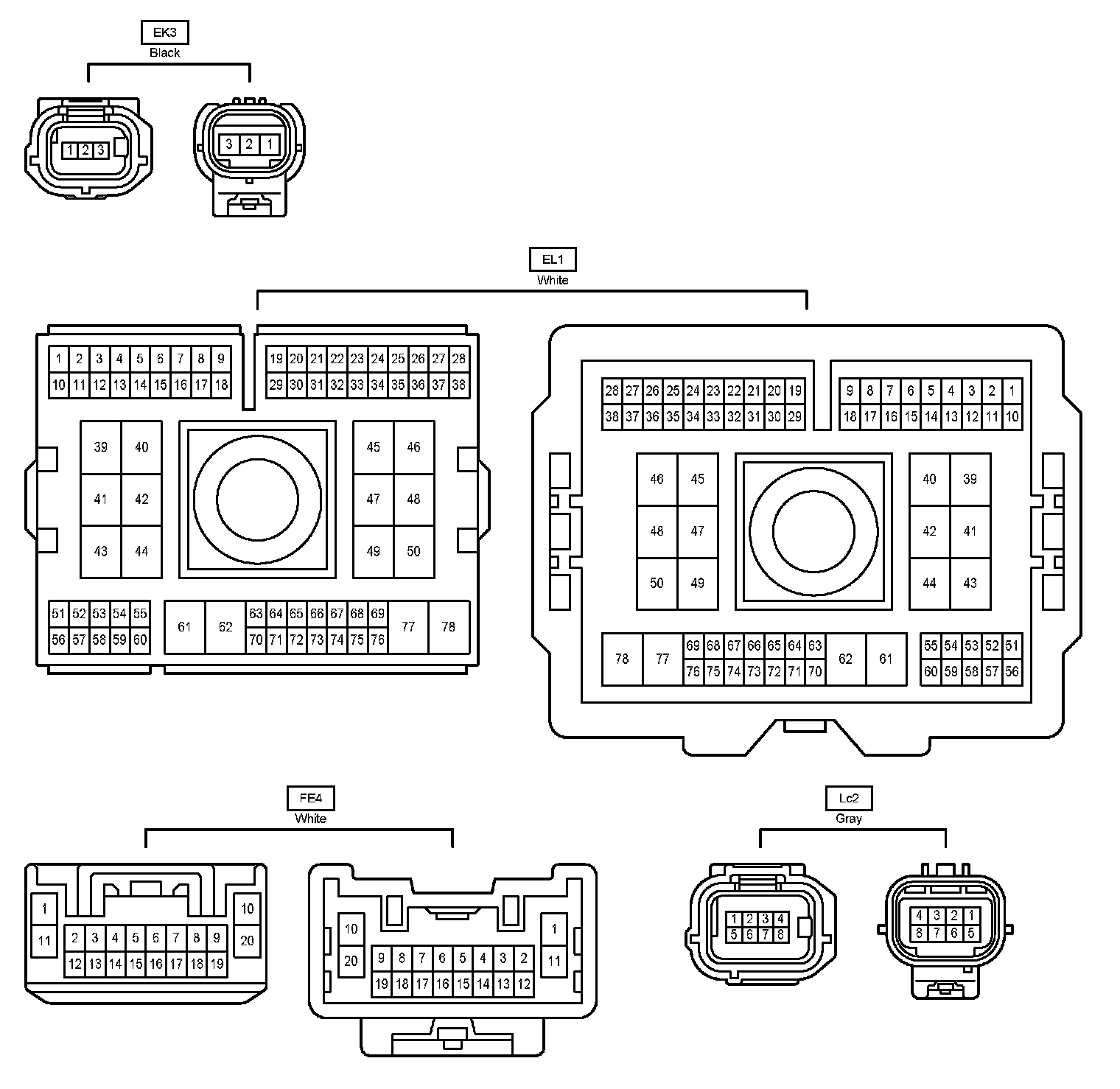

Connector Pin Outs Part 1:

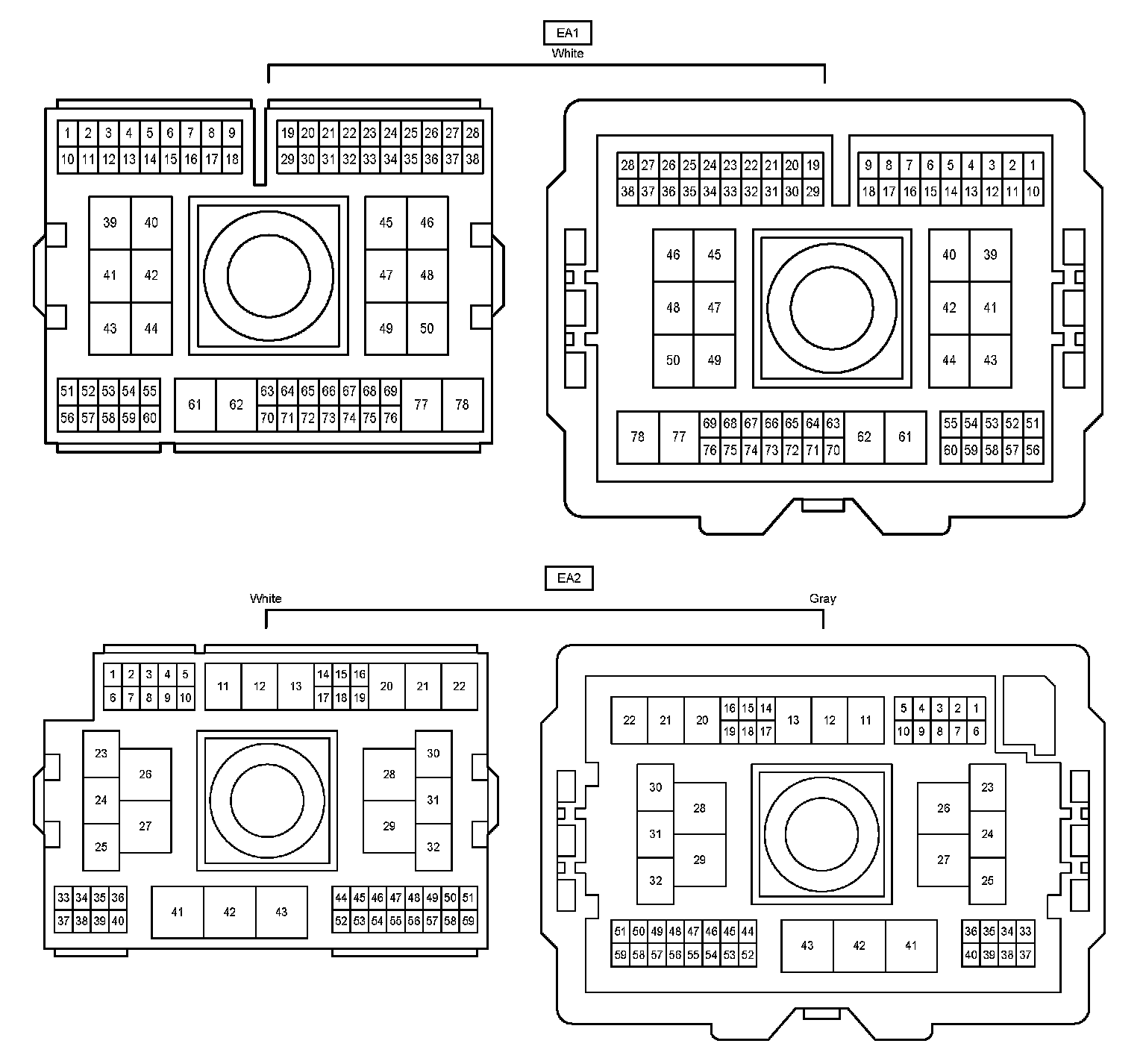

Connector Pin Outs Part 2:

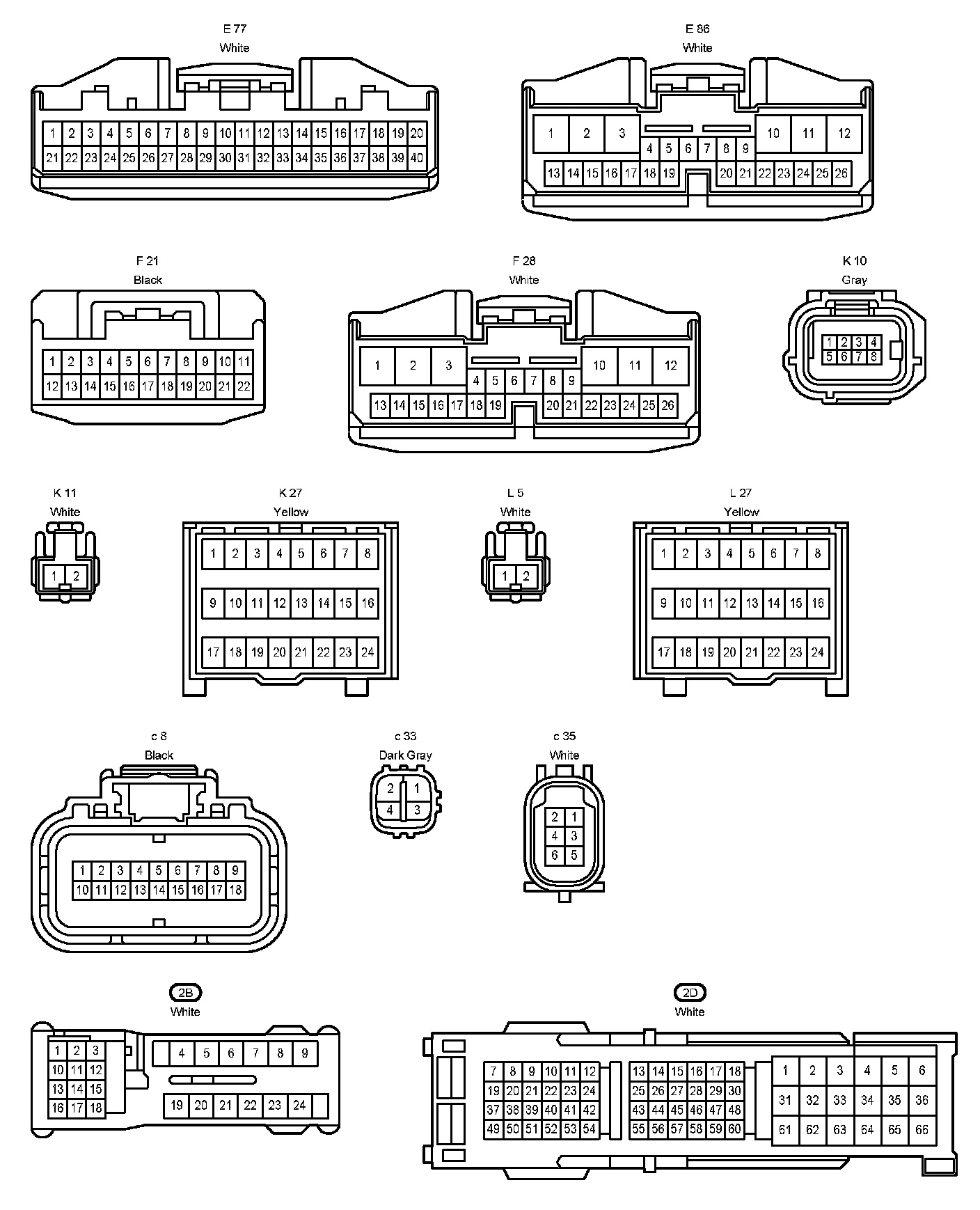

Connector Pin Outs Part 3:

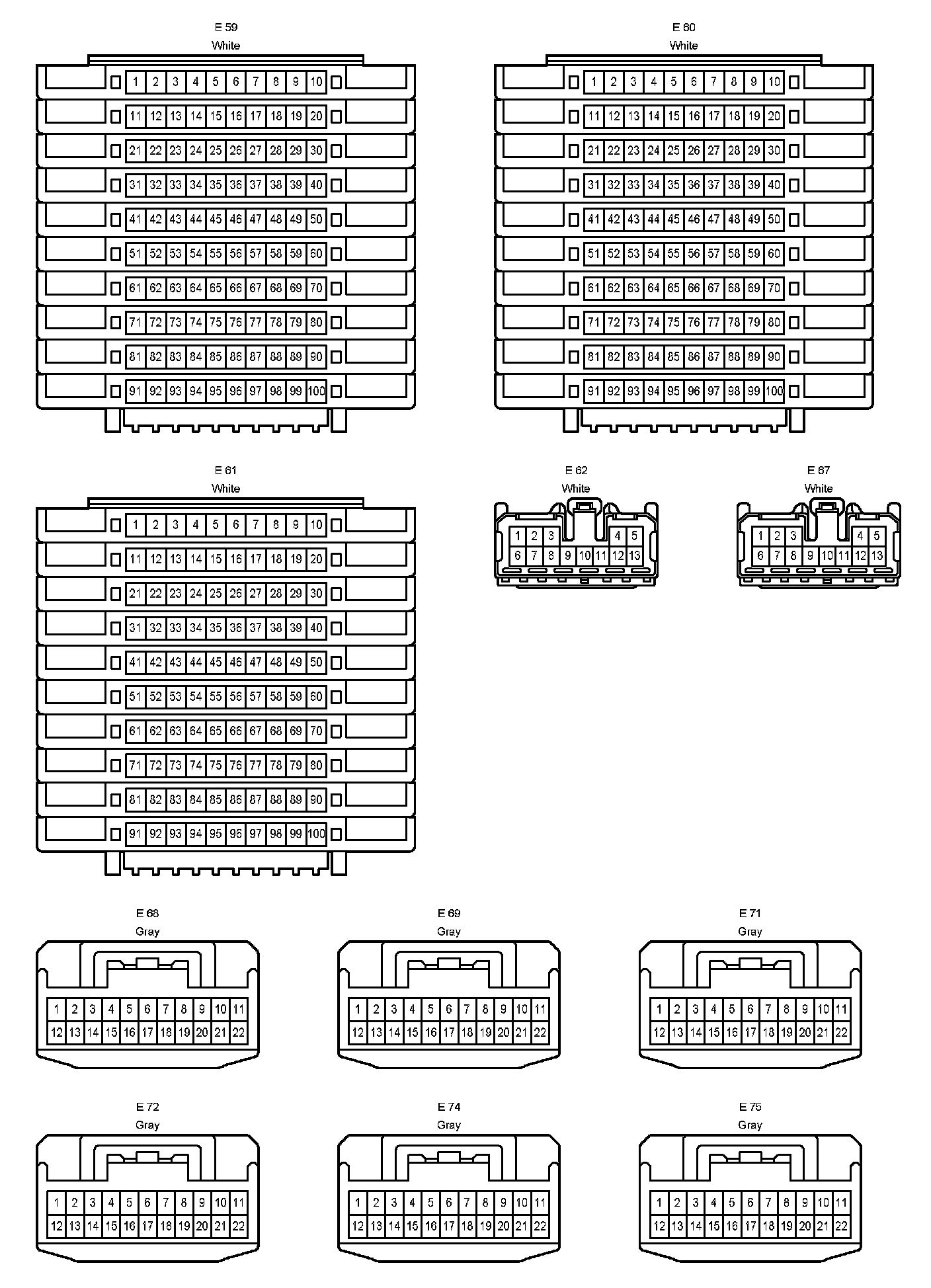

Connector Pin Outs Part 4:

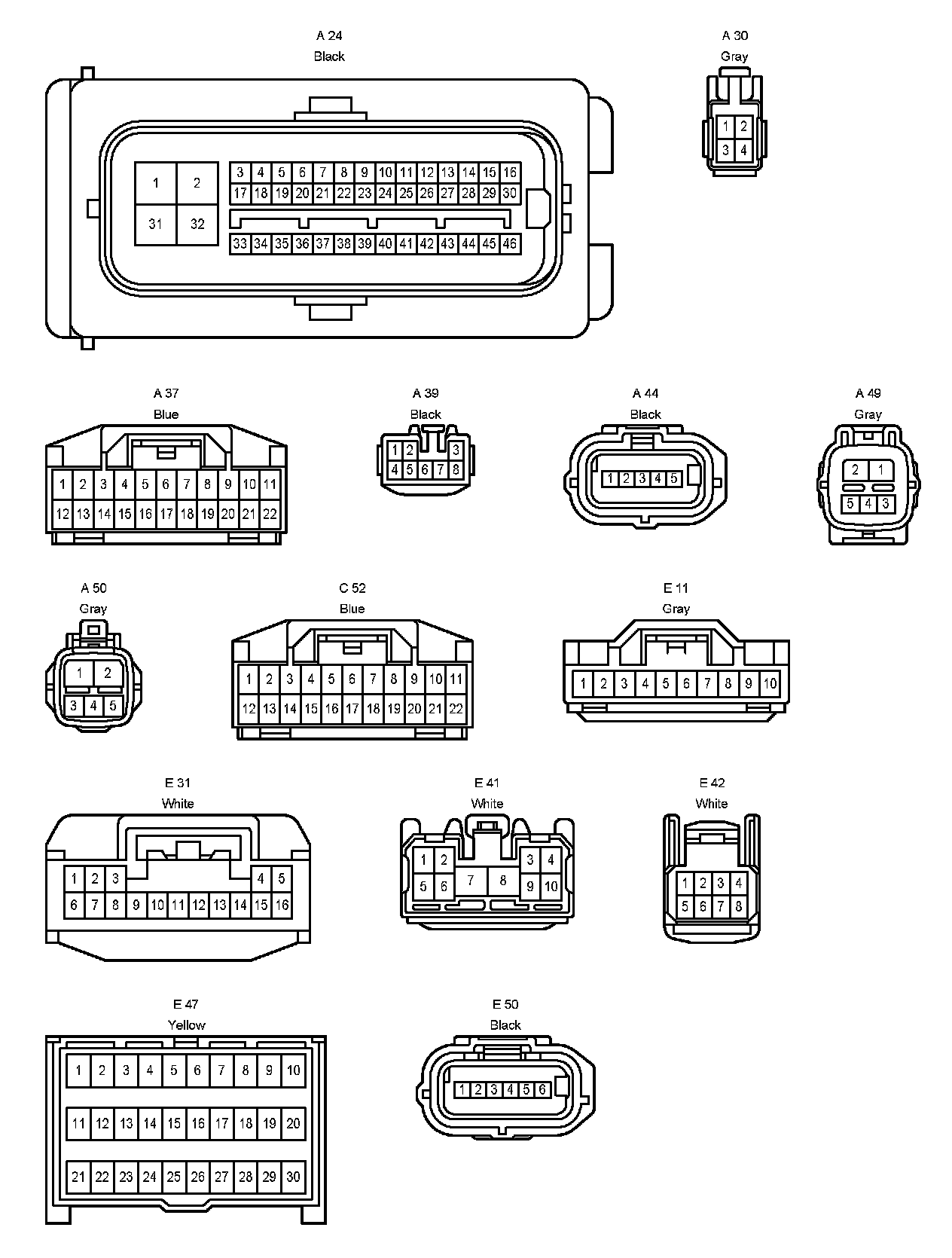

Connector Pin Outs Part 5:

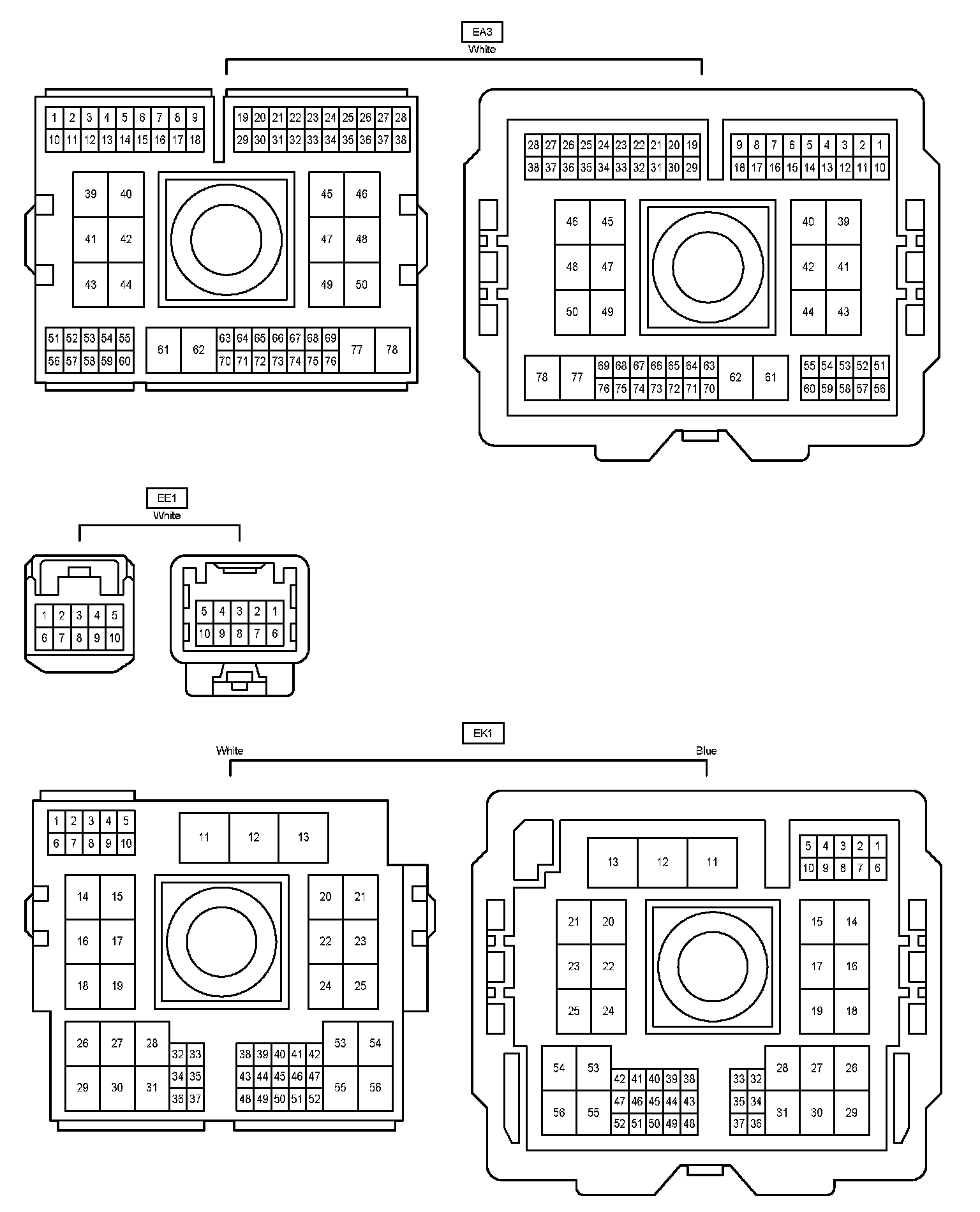

Connector Pin Outs Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
