Pinout Values and Diagnostic Parameters

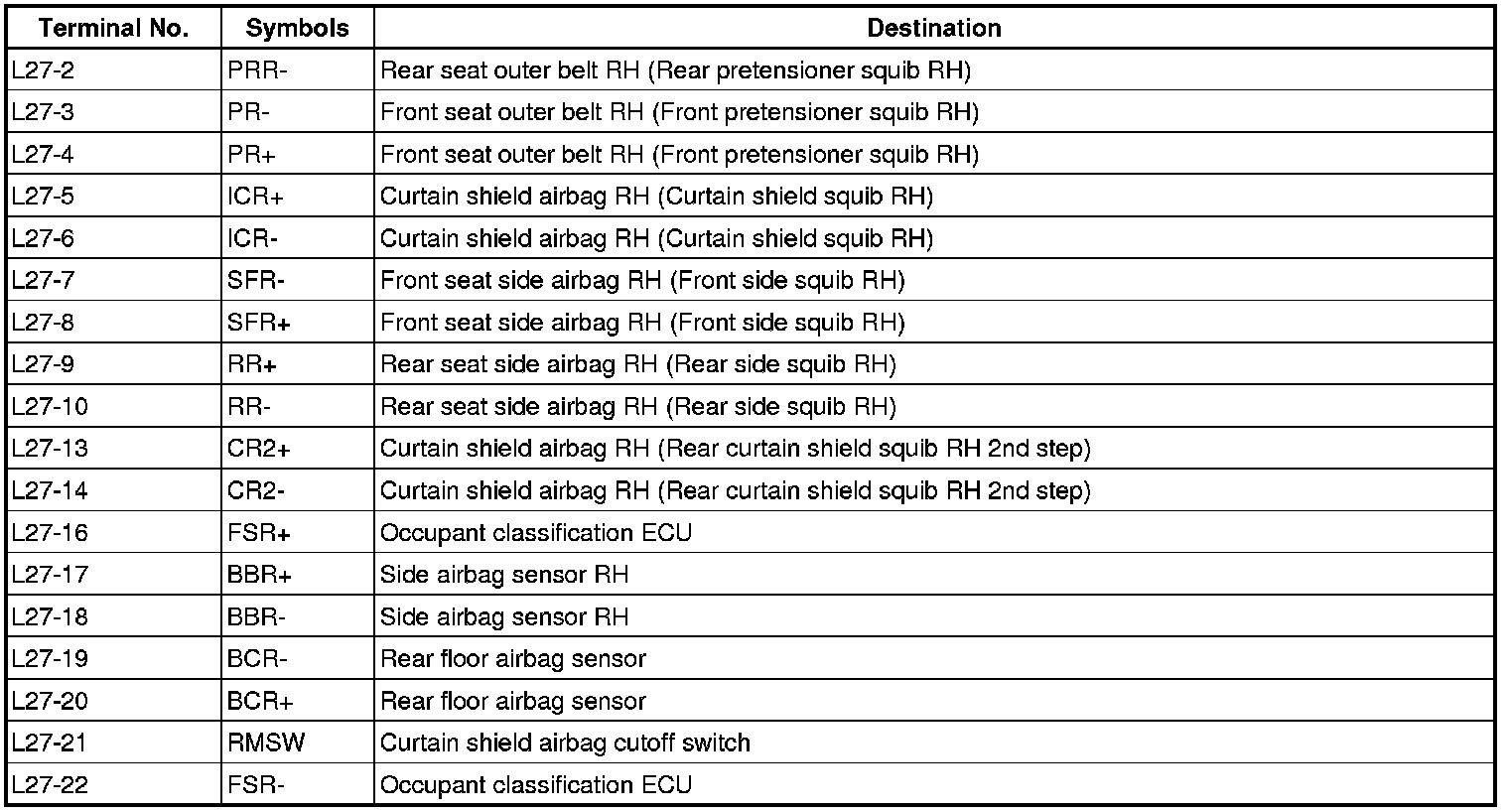

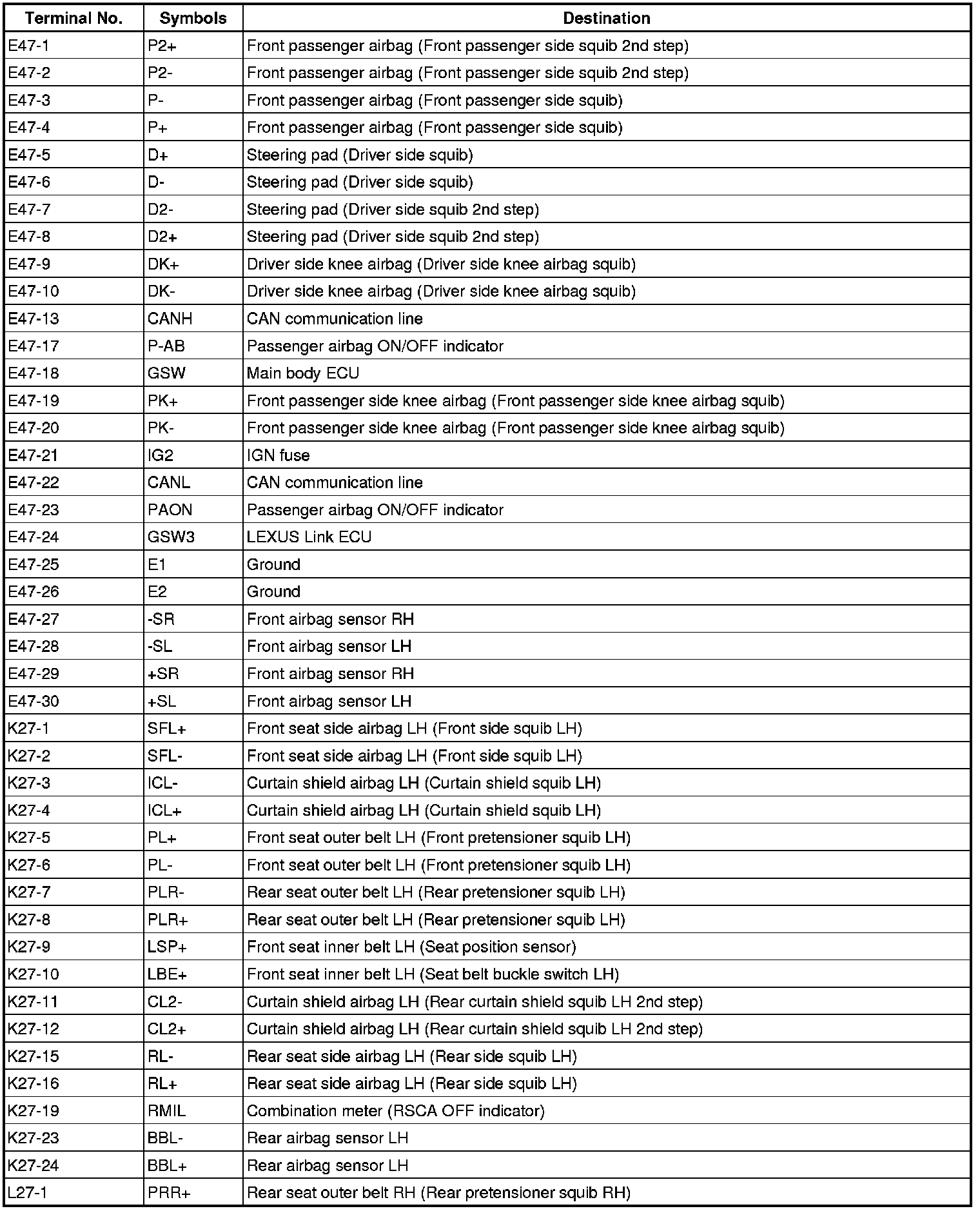

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: TERMINALS OF ECU

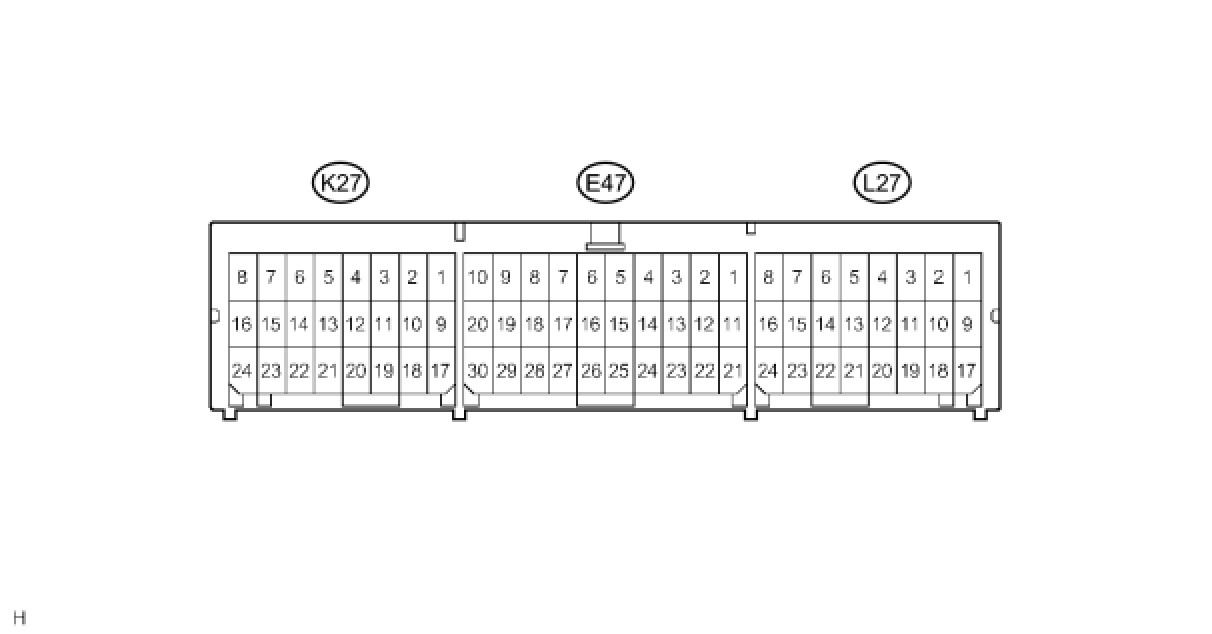

1. CENTER AIRBAG SENSOR
