Inspection

SUPPLEMENTAL RESTRAINT SYSTEMS: STEERING PAD: INSPECTION

CAUTION:
The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution in the SRS Service Precautions.

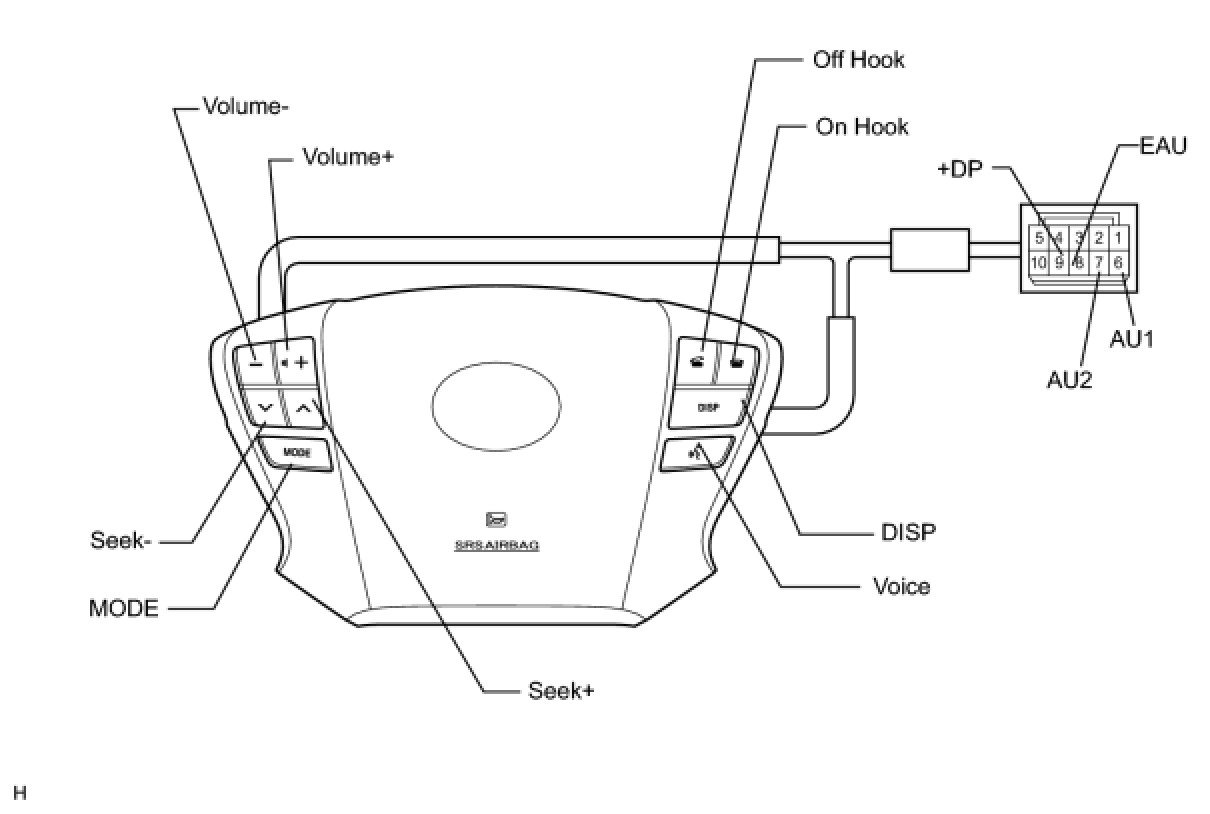

1. INSPECT STEERING PAD
(a) Disconnect the z35 switch connector.

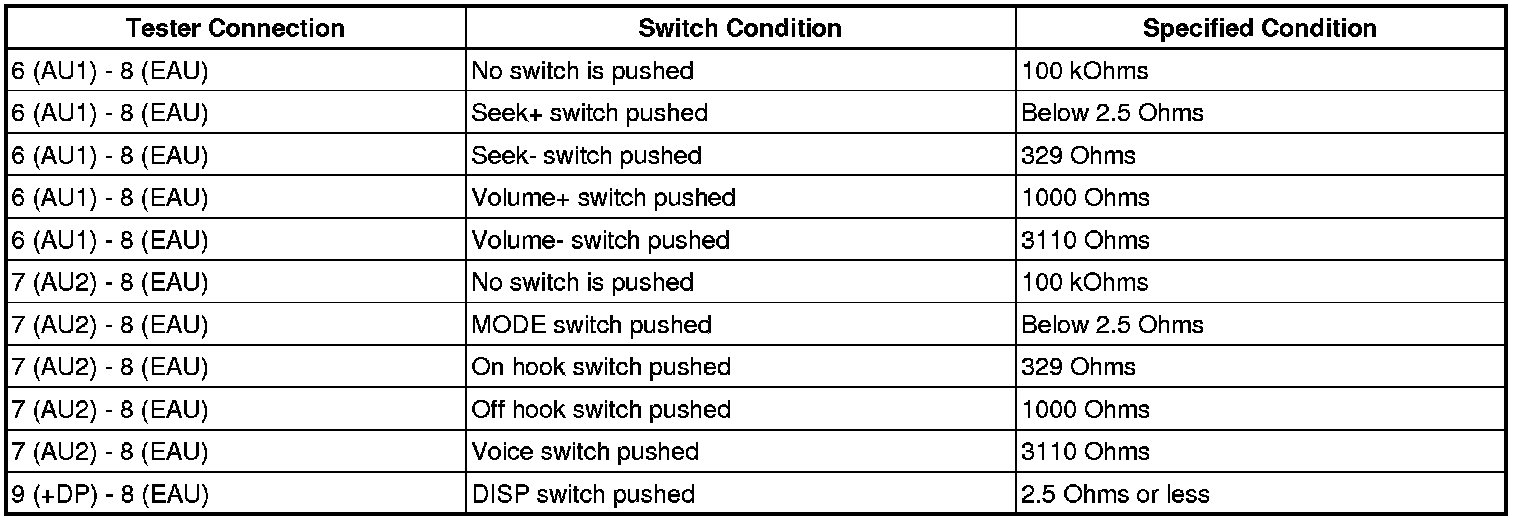

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the steering pad.
