SUPPLEMENTAL RESTRAINT SYSTEMS: KNEE AIRBAG ASSEMBLY (for Front Passenger Side): INSTALLATION

1. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY

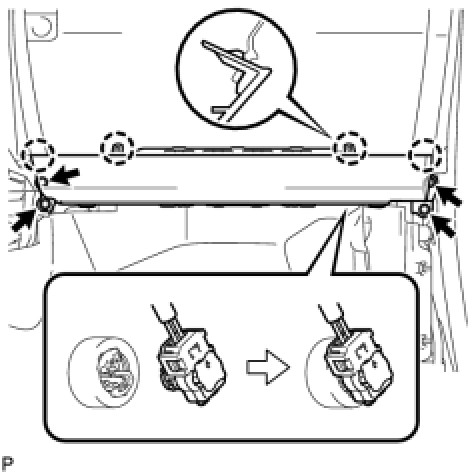

(a) Connect the connector.
NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

(b) Attach the 4 claws to install the front passenger side knee airbag.
(c) Install the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
2. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH Installation

3. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Installation

4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL COWL SIDE TRIM BOARD RH Installation

6. INSTALL FRONT DOOR SCUFF PLATE RH Installation

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

8. INSTALL ENGINE ROOM SIDE COVER LH Installation

9. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
