Installation

SUPPLEMENTAL RESTRAINT SYSTEMS: KNEE AIRBAG ASSEMBLY (for Driver Side): INSTALLATION

1. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY






(a) Connect the connector.
NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

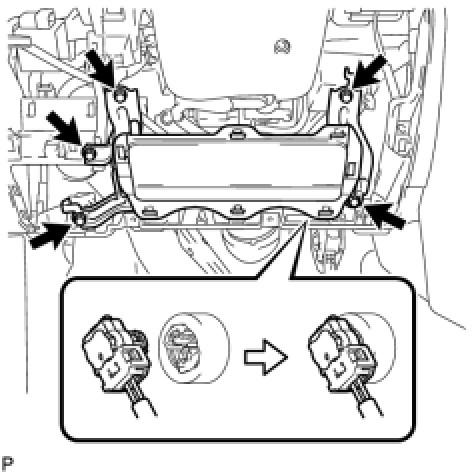

(b) Install the driver side knee airbag with the 5 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
2. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation

3. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH Installation

4. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

5. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

6. INSTALL NO. 1 SWITCH HOLE BASE Installation

7. INSTALL INSTRUMENT SIDE PANEL LH Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSTALL ENGINE ROOM SIDE COVER LH Installation

10. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
