Installation

SUPPLEMENTAL RESTRAINT SYSTEMS: FRONT PASSENGER AIRBAG ASSEMBLY: INSTALLATION

1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY

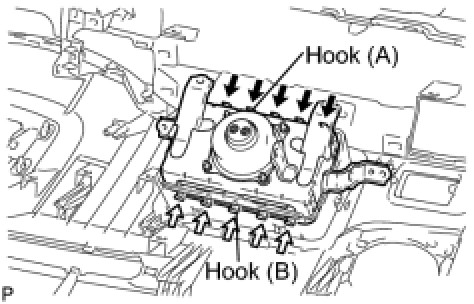

(a) Attach the 5 hooks (A).
(b) Attach the 5 hooks (B) to install the front passenger airbag on the instrument panel.

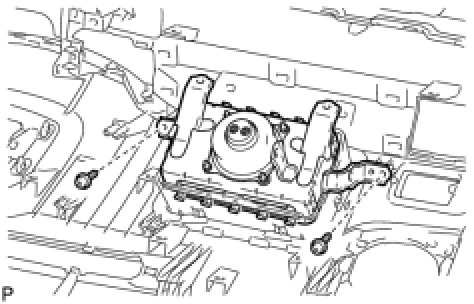

(c) Install the 2 screws.

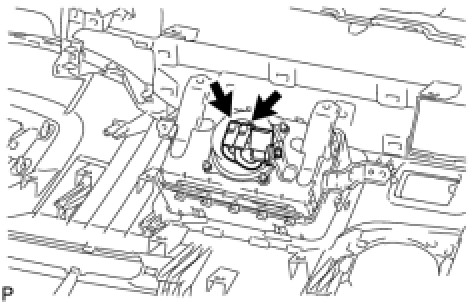

(d) Connect the 2 connectors and install the instrument panel wire assembly to the front passenger airbag.
NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

(e) Attach the claw and install the wire.
2. INSTALL INSTRUMENT PANEL SAFETY PAD
(a) Install the instrument panel safety pad Installation.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. INSTALL ENGINE ROOM SIDE COVER LH Installation

5. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
