Steering Control ECU
>>
Components
Components

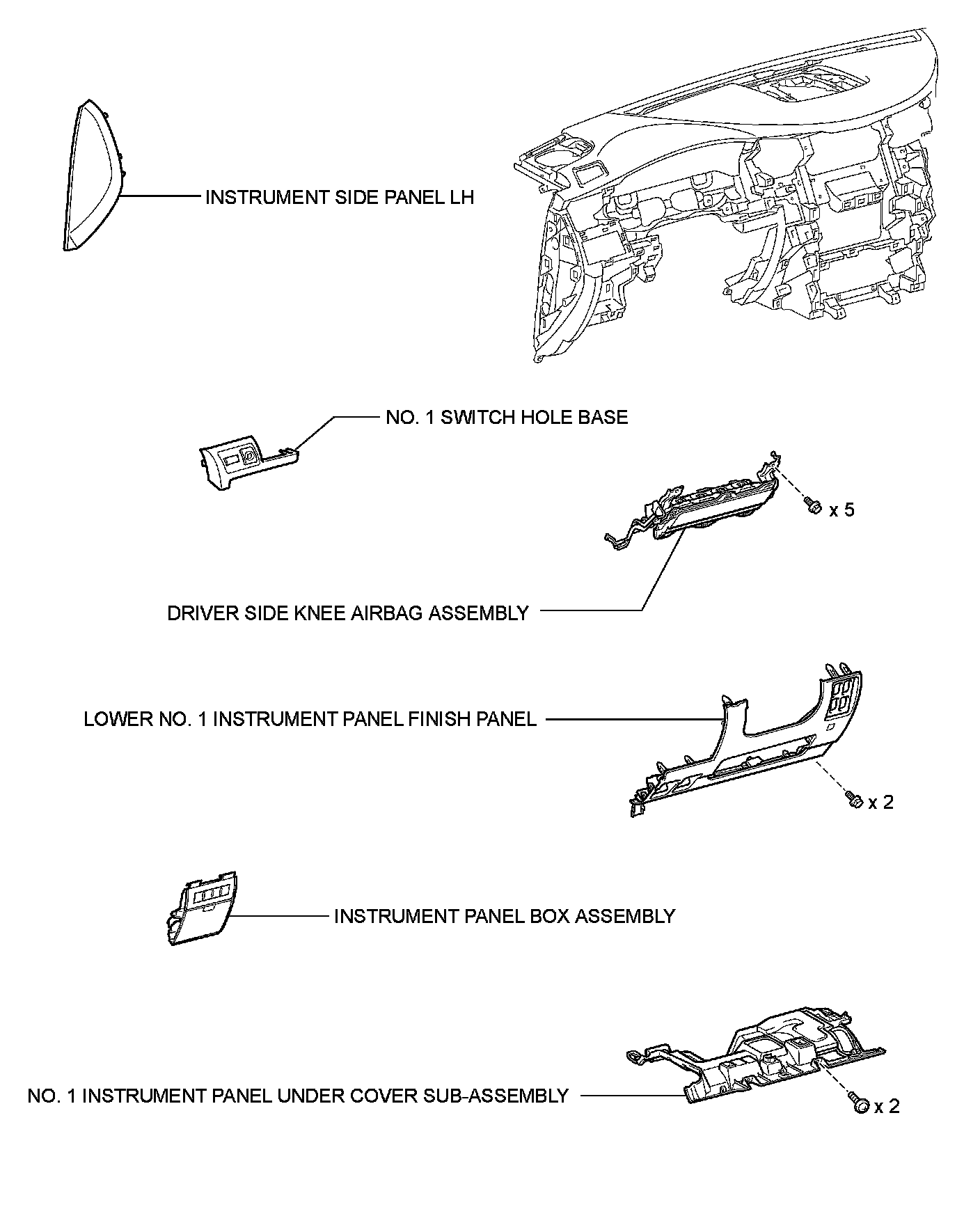

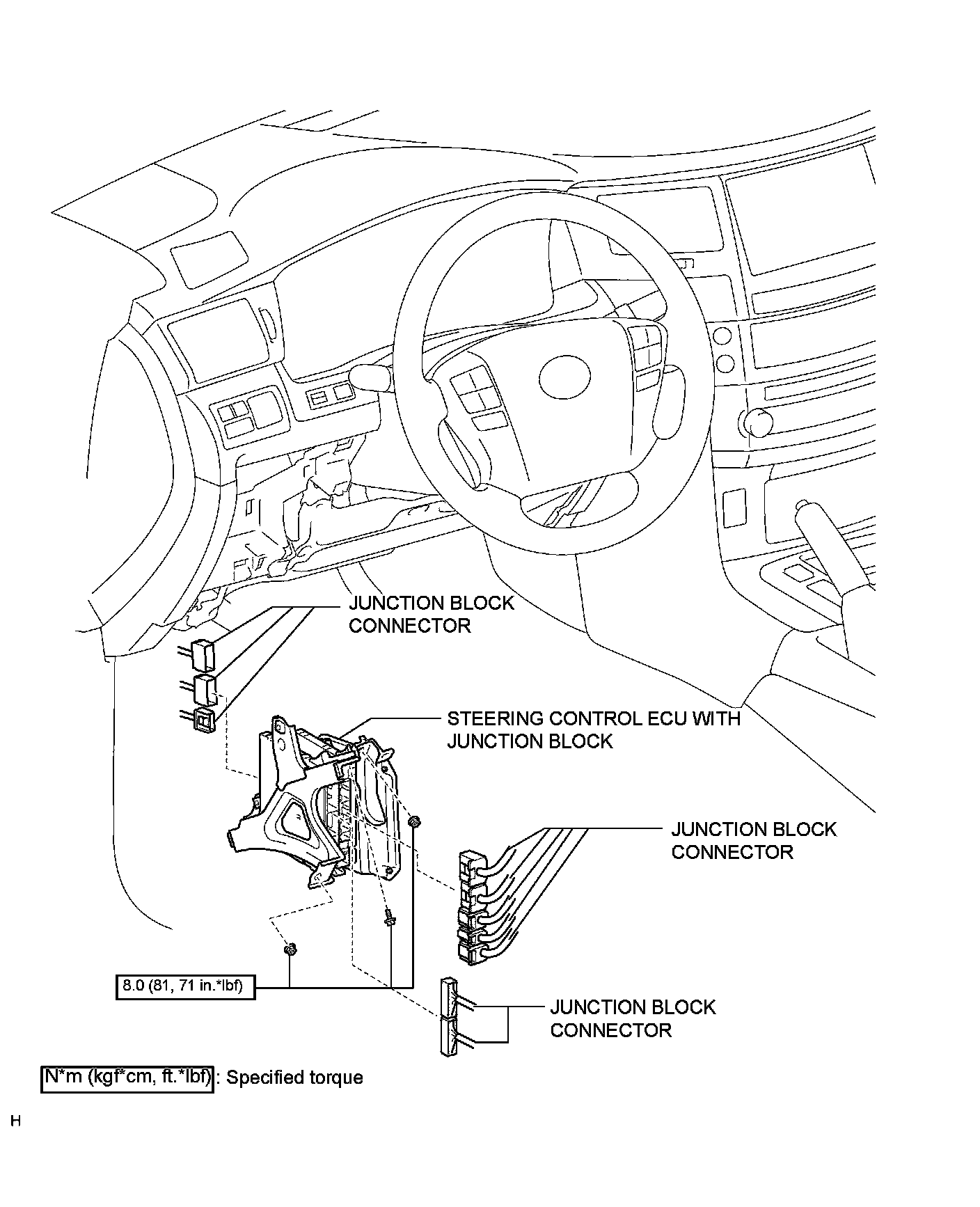

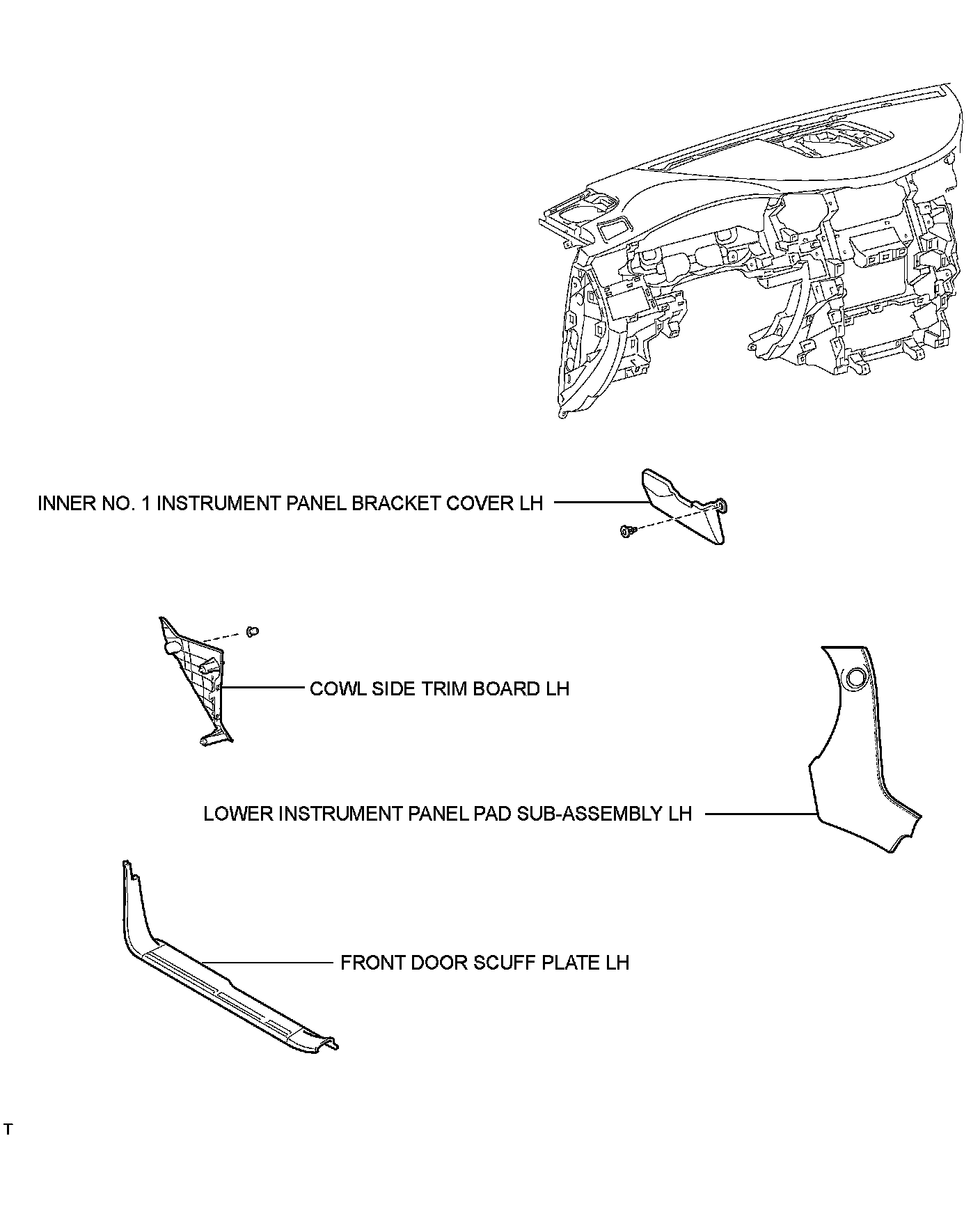

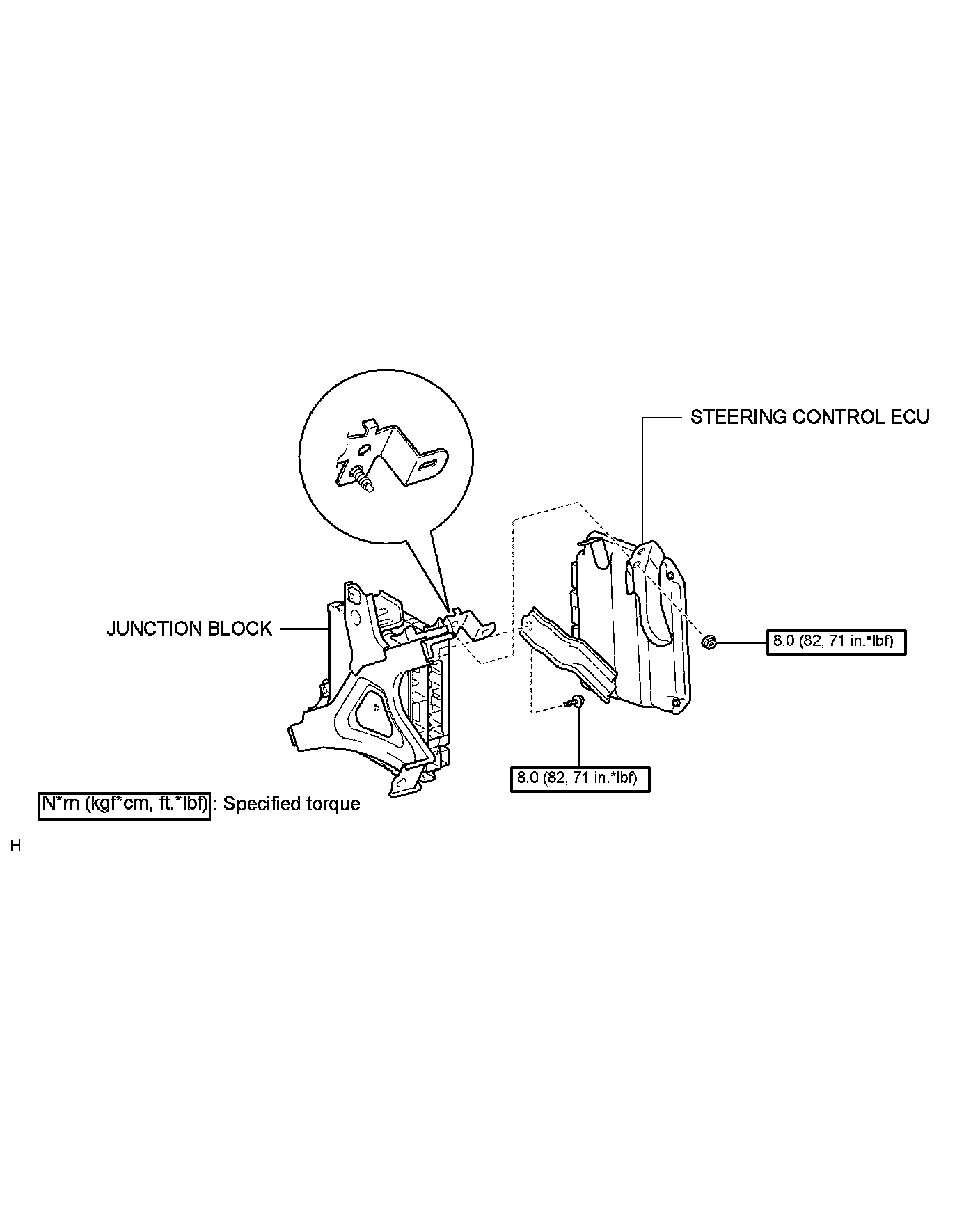

VARIABLE GEAR RATIO STEERING: STEERING CONTROL ECU: COMPONENTS
