Multiplex Tilt and Telescopic ECU

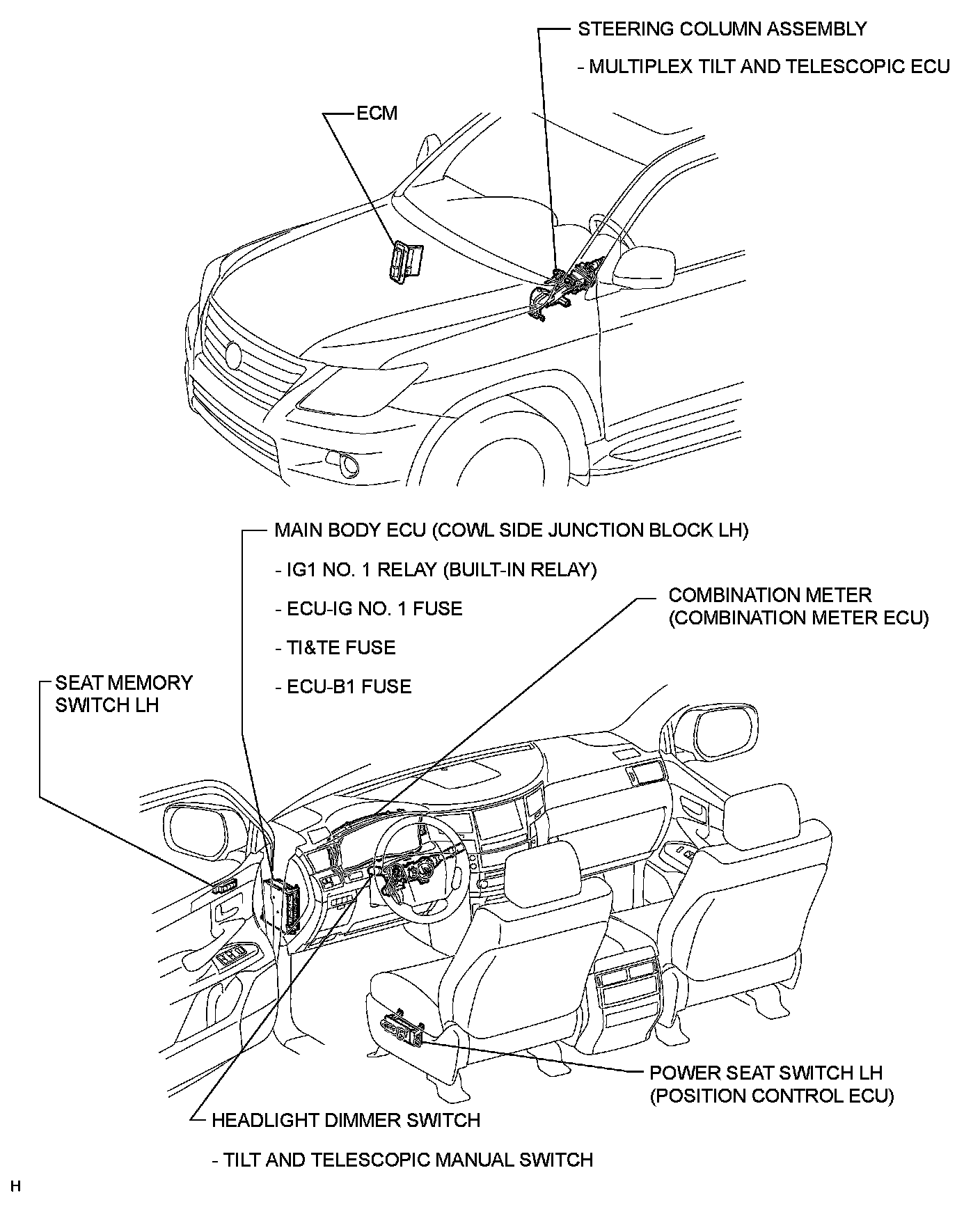

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: PARTS LOCATION

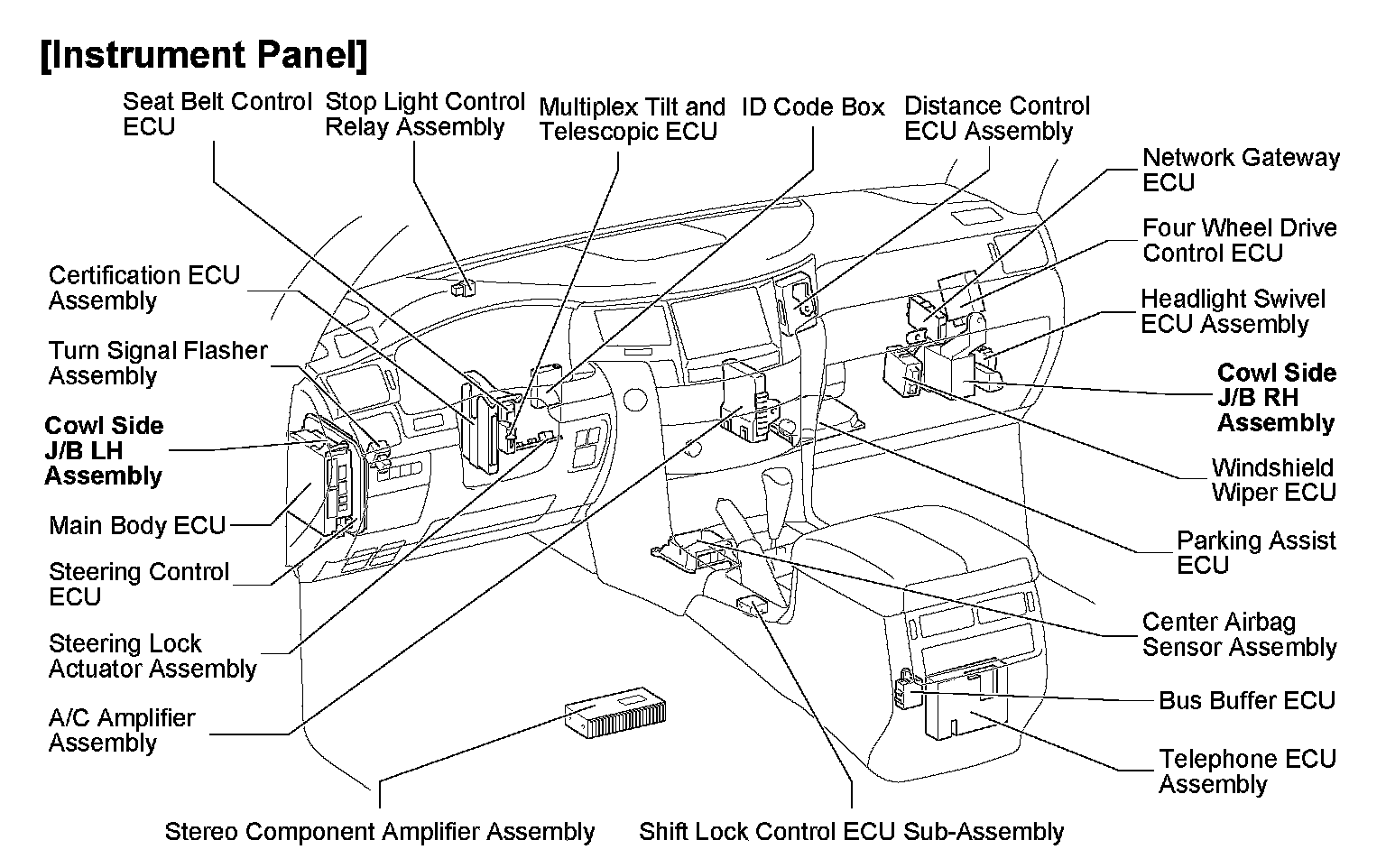

Instrument Panel:
