Removal

PARK ASSIST / MONITORING: PARKING ASSIST ECU: REMOVAL

1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal







2. REMOVE PARKING ASSIST ECU
(a) Disconnect the connector.

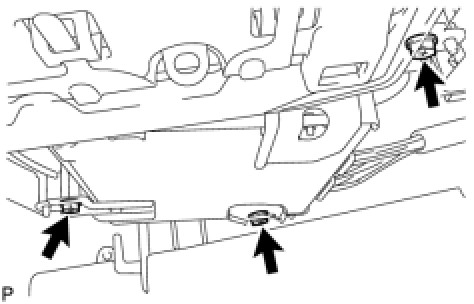

(b) Remove the 3 screws and parking assist ECU.
